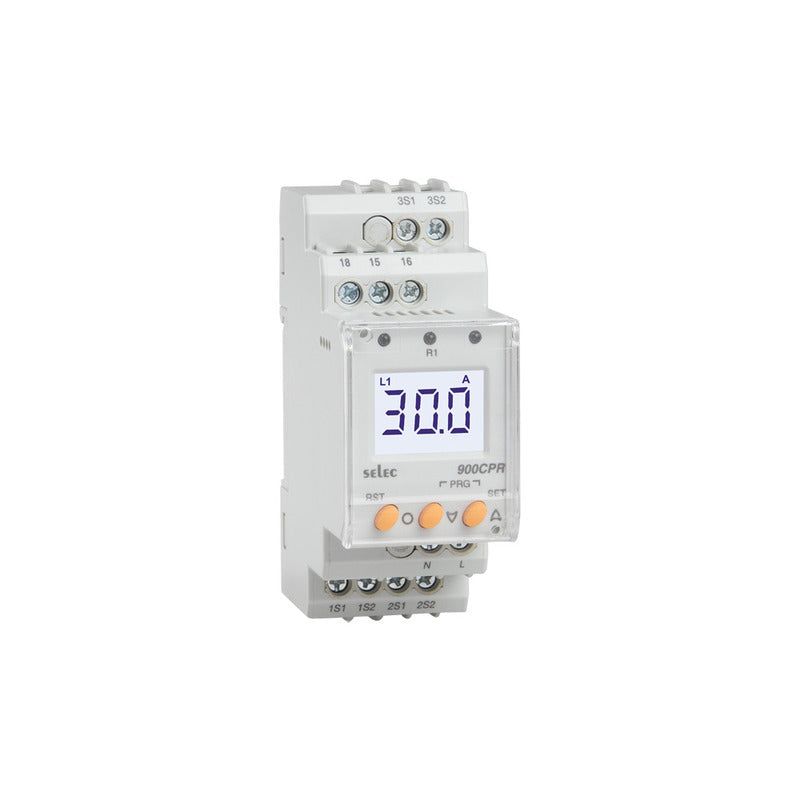

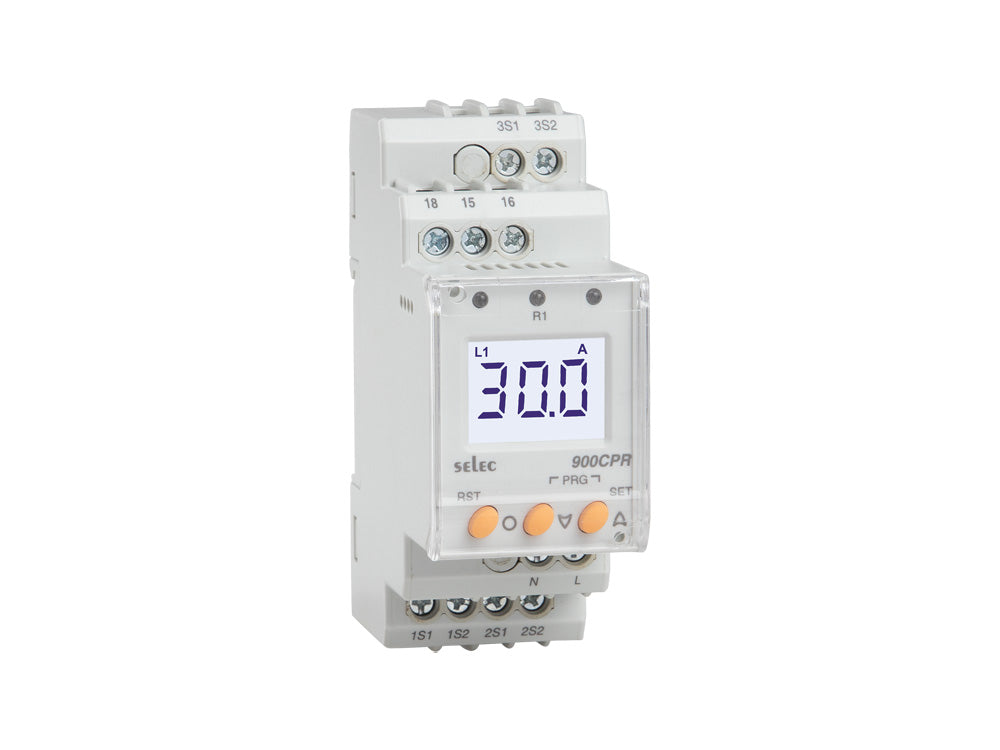

SELEC 900CPR-3-230V, Current(Ampere) protection relay, 3 phase
SELEC 900CPR-3-230V, Current(Ampere) protection relay, 3 phase
Regular price
Rs. 1,773.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
1Ø & 3Ø, Over / Under current monitoring, Current asymmetry, 1 C/O, 230V AC
BRIEF SPECIFICATIONS
| Measuring Parameter | Under Current, Over Current, Current Asymmetry Monitoring |
| Electrical Connection | 1Ø-2W, 3Ø-3W, 3Ø-4W |
| Display | 3 Digits Liquid Crystal Display with Backlight |
| CT Setting | CT Primary: 1A / 5A – 999A, CT Secondary: 1A / 5A (selectable) |
|
Time Ranges |
Power ON Delay: 0.5–99.9sec, Trip time delay: 0–99.9sec, Recovery Time Delay: 0–99.9sec (In Auto Reset Mode), Response Time: <200ms |
| Accuracy | Current: ±1% of Setting ± 2 digits, Time Setting Accuracy: ±5% of Setting ±200ms |
| Output Contact | 1 C / O (SPDT) |
| Output Rating | NO: 5A@250V AC, NC: 3A@250V AC |
| Supply Voltage | 230V AC (±15%) |
| Size | 35 mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE |
