SELEC

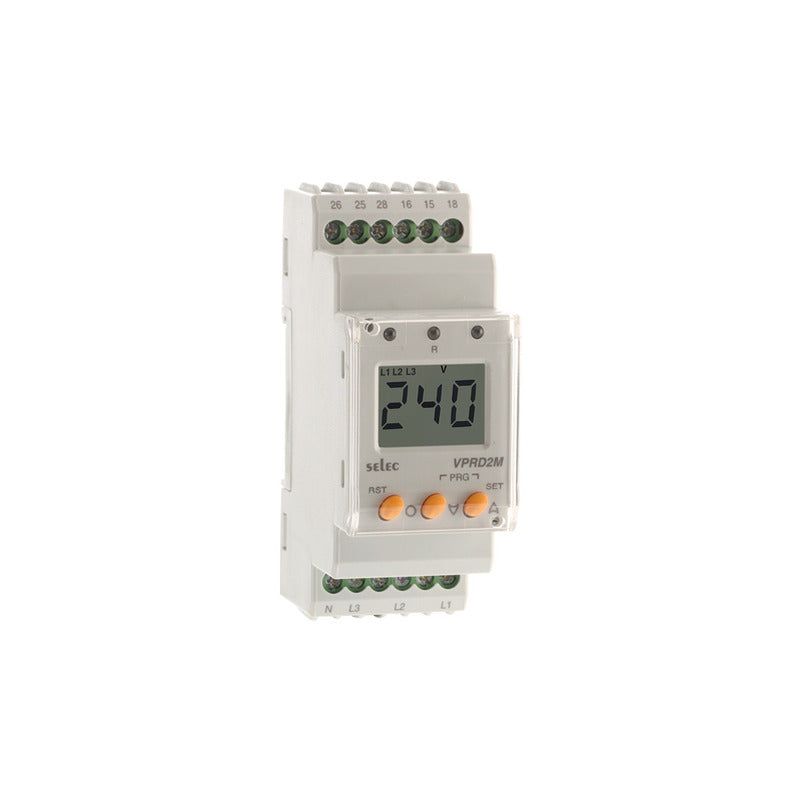

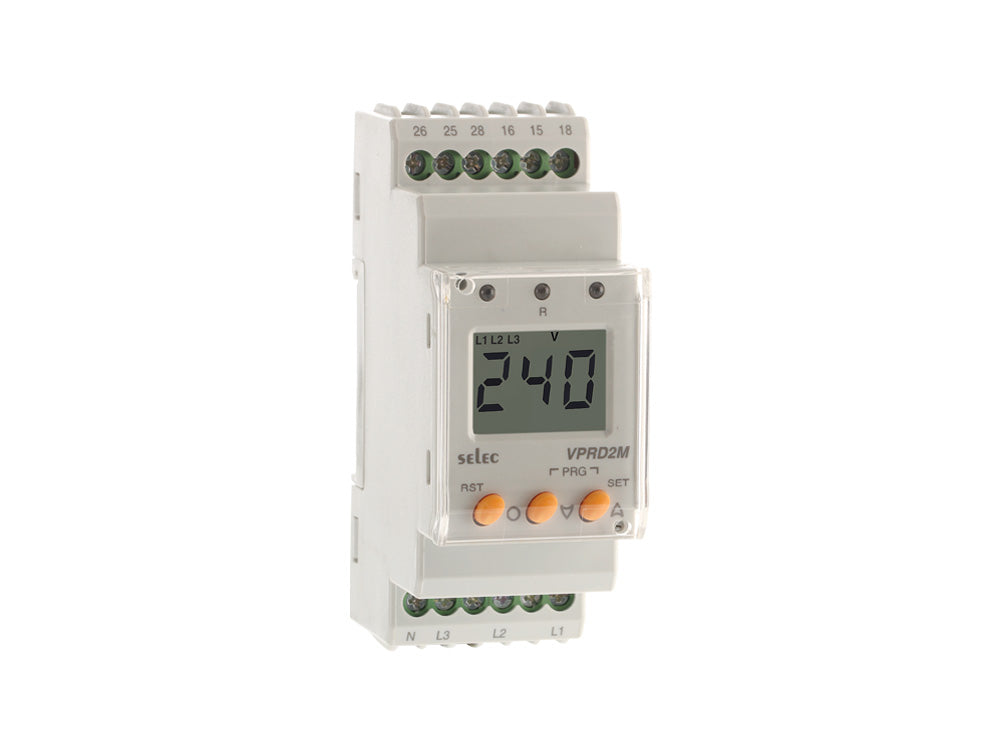

SELEC VPRD2M-BL-CE, digital voltage protection relay
Incl. all taxes • Shipping calculated at checkout.
🚚 Delivered within 5 to 7 Days
Couldn't load pickup availability
Digital, 1Ø-2W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over frequency, With Backlight, 2 C/O DPDT
BRIEF SPECIFICATIONS
| Measuring Parameter | Under Voltage, Over Voltage, Phase Asymmetry, Phase Failure, Phase Sequence |
| Electrical Connection | 1Ø-2W, 3Ø-4W |
| Display | 3 Digits LCD |
|
Time Ranges |
Trip Time Delay : 0 to 300sec, Power ON Delay : 0.5 to 300sec, Recovery Time Delay : 0 to 300sec, Response Time : <150ms |
| Accuracy | Trip Setting : ±1% ± 2 digits, Time Setting : ±5% of Setting ± 150ms |
| Output Contact | 2 C/O (DPDT ) |
| Output Rating | NO,NC: 5A @ 250V AC / 28 V DC |
| Operating Voltage | 127 to 288V AC (L-N) |
| Size | 35 mm |
| Mounting Type | DIN Rail Mount |
SELEC VPRD2M-BL-CE Digital Voltage Protection Relay | DIN Rail Single & Three Phase Protection Relay
The SELEC VPRD2M-BL-CE Digital Voltage Protection Relay is an advanced DIN Rail mounted voltage monitoring relay designed to protect electrical equipment from voltage abnormalities in both single-phase (1Ø-2W) and three-phase (3Ø-4W) power systems. It continuously monitors critical electrical parameters including under voltage, over voltage, phase sequence, phase failure, phase asymmetry, and under/over frequency, ensuring reliable protection for motors, compressors, pumps, HVAC systems, generators, and industrial automation panels.
Equipped with a clear 3-digit LCD display with backlight, the VPRD2M-BL-CE allows easy monitoring and configuration of voltage protection settings. The relay offers adjustable trip delay, power-on delay, and recovery delay from 0 to 300 seconds, enabling users to customize protection according to application requirements. With 2 C/O (DPDT) output contacts, automatic and manual reset options, and a fast response time of less than 150ms, it provides dependable protection for critical industrial equipment. The relay operates on 127–288VAC (L-N) and supports both single-phase and three-phase monitoring from a single device.
Its slim 35mm DIN Rail mounting design makes installation simple while saving valuable panel space. Built to international standards, the SELEC VPRD2M-BL-CE is widely trusted by panel builders, OEMs, electrical contractors, and maintenance engineers for reliable voltage protection in industrial automation and electrical distribution systems.
Key Features
• Genuine SELEC Digital Voltage Protection Relay
• Supports Single Phase (1Ø-2W) and Three Phase (3Ø-4W) systems
• Monitors Under Voltage, Over Voltage, Phase Failure, Phase Sequence & Phase Asymmetry
• Under & Over Frequency monitoring
• 3-digit LCD display with backlight
• Adjustable trip, recovery and power-on delays
• 2 C/O (DPDT) relay outputs
• Automatic and manual reset options
• Slim 35mm DIN Rail mounting
• Fast response time for reliable equipment protection
Technical Specifications
• Model: VPRD2M-BL-CE
• Brand: SELEC
• Product Type: Digital Voltage Protection Relay
• Operating Voltage: 127–288VAC (L-N)
• Electrical Connection: 1Ø-2W / 3Ø-4W
• Display: 3-digit LCD with Backlight
• Output Contacts: 2 C/O (DPDT), 5A @ 250VAC / 28VDC
• Trip Time Delay: 0–300 seconds
• Recovery Delay: 0–300 seconds
• Power ON Delay: 0.5–300 seconds
• Response Time: <150ms
• Mounting: 35mm DIN Rail
• Operating Temperature: -10°C to +55°C
Applications
• Industrial control panels
• Motor Control Centers (MCC Panels)
• Pump control systems
• Compressors and HVAC equipment
• PLC automation systems
• DG and generator control panels
• Manufacturing plants
• Process industries
• Electrical distribution panels
• OEM machinery and automation equipment
Why Buy From Voltkart?
• Genuine SELEC products
• GST invoice provided with every order
• Pan India delivery in 5–7 days
• Bulk pricing available on WhatsApp
• Expert technical support for product selection
Frequently Asked Questions
Q: What protection functions are available in the SELEC VPRD2M-BL-CE?
A: The relay provides protection against under voltage, over voltage, phase failure, phase sequence, phase asymmetry, and under/over frequency, making it suitable for comprehensive voltage monitoring in industrial applications.
Q: Can the VPRD2M-BL-CE be used for both single-phase and three-phase systems?
A: Yes. The relay supports both 1Ø-2W and 3Ø-4W electrical systems, allowing one device to protect multiple types of installations.
Q: Is the SELEC VPRD2M-BL-CE suitable for DIN Rail mounting?
A: Yes. The relay features a compact 35mm DIN Rail mounting design, making it ideal for industrial control panels, automation systems, and electrical distribution boards.
