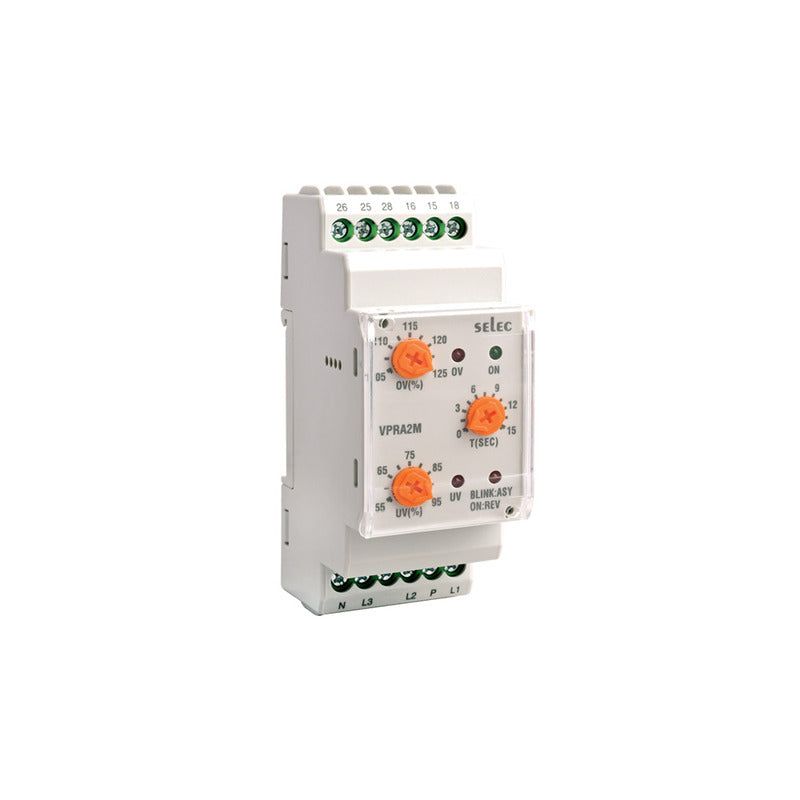

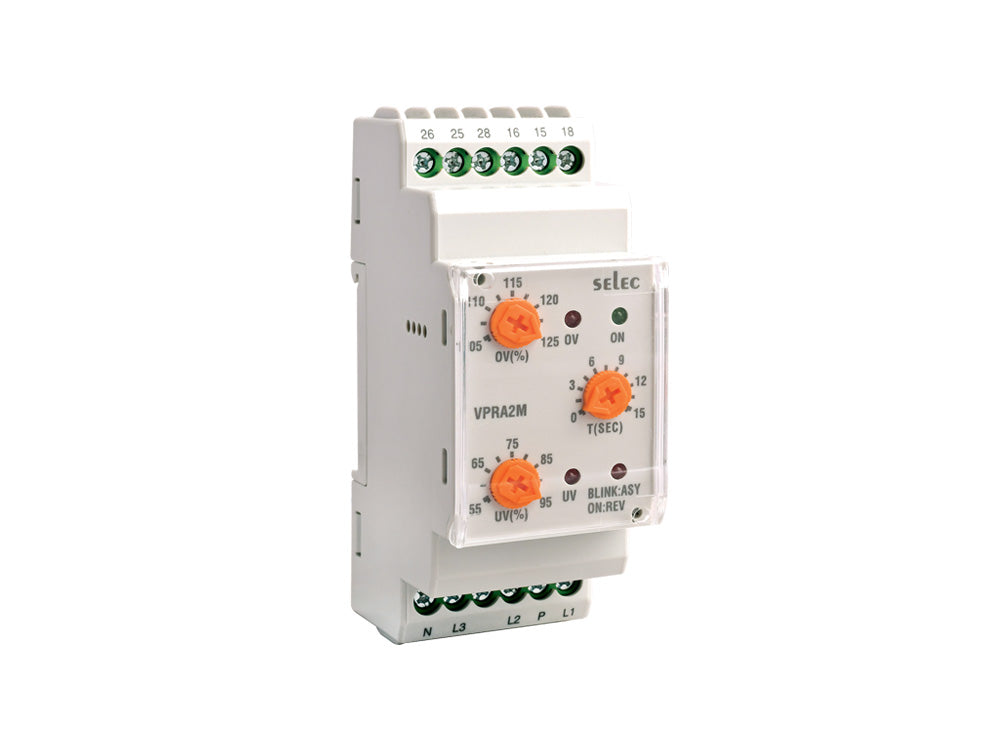

SELEC VPRA2M-CE, Voltage protection relay

SELEC VPRA2M-CE, Voltage protection relay

Regular price Rs. 978.00
Regular price Rs. 1,763.00 Sale price Rs. 978.00

Price (Exclusive of GST): Rs. 828.81

Sale Sold out
Taxes included. Shipping calculated at checkout.

Analog ,1Ø-2W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, 2 C/O DPDT

BRIEF SPECIFICATIONS

Measuring Parameter Under Voltage, Over Voltage, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection 1Ø-2W, 3Ø-4W
Display LED Indication

Time Ranges
Trip Time Delay: 0-15sec,
Power ON Delay: 0-15sec,
Recovery Time Delay: 5sec ± 200ms
Accuracy Trip setting: ±5% of Set Value,
Time Setting: ±10% of F.S
Output Contact 2 C/O (DPDT )
Output Rating NO,NC: 5A @ 250V AC /28 V DC
Operating Voltage 127 to 288V AC (L-N)
Size 35mm
Mounting Type DIN Rail Mount
Certification CE



View Datasheet

View full details
