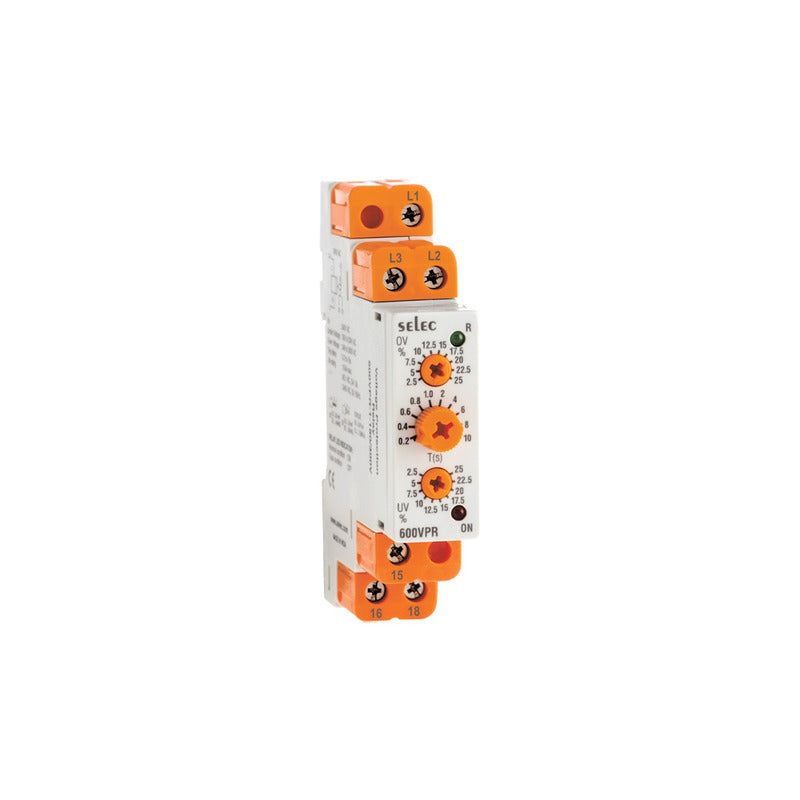

Selec 600VPR-1-130/320-CE, single phase Voltage Protection Relay, 1 phase
Regular price
₹1,000
Regular price
₹1,695
Sale price
₹1,000
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹847.46
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
600VPR-1-130/320-CE, a protection relay from Selec. 1Ø-2W, Under / Over voltage, Phase failure, Phase sequence, 1C/O.
Operating Voltage
130 to 320V AC (L-N)
Output Contact
1 C/O SPDT relay
Accuracy
±5% of Set value ±100msec
Time Ranges
Trip delay (T) : 0.25 to 20sec, Power ON delay : <400msec
Technical specifications
| Make | Selec |
| Model | 600VPR-1-130/320-CE |
| Measuring Parameter | Monitors under voltage and Over voltage |
| Electrical Connection | 1Ø - 2W |
| Time Ranges | Trip delay (T) : 0.25 to 20sec, Power ON delay : <400msec |
| Accuracy | ±5% of Set value ±100msec |
| Output Contact | 1 C/O SPDT relay |
| Output Rating | NO/5A, NC/3A@250V AC |
| Operating Voltage | 130 to 320V AC (L-N) |
| Reset | Auto reset on removal of fault condition |
| Size | 17.5mm |
| Mounting Type | DIN rail mount |
| Certification | CE |
More about the 600VPR-1-130/320-CE
1Ø-2W, Under / Over voltage, Phase failure, Phase sequence, 1C/O
PDF
600VPR-1-130/320-CE datasheet
Manufacturer datasheet with full specifications.
Frequently asked questions about the Selec 600VPR-1-130/320-CE
What is the 600VPR-1-130/320-CE?
1Ø-2W, Under / Over voltage, Phase failure, Phase sequence, 1C/O. It is a protection relay made by Selec.
What is the operating voltage of the 600VPR-1-130/320-CE?
The 600VPR-1-130/320-CE is listed with operating voltage of 130 to 320V AC (L-N).
What is the output contact of the 600VPR-1-130/320-CE?
The 600VPR-1-130/320-CE is listed with output contact of 1 C/O SPDT relay.
What is the accuracy of the 600VPR-1-130/320-CE?
The 600VPR-1-130/320-CE is listed with accuracy of ±5% of Set value ±100msec.
Where can I download the 600VPR-1-130/320-CE datasheet?
You can download it from the datasheet section on this page: 600VPR-1-130/320-CE datasheet.
Is the 600VPR-1-130/320-CE genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the 600VPR-1-130/320-CE in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
