SELEC
-

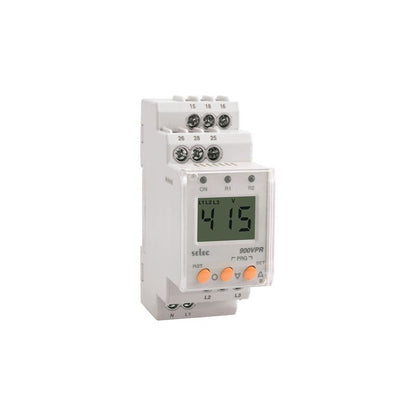

Selec 900VPR-2-280/600V, Digital Voltage Protection Relay
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
900VPR-2-280/600V, a protection relay from Selec. 3Ø-3W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over frequency, 2 x 1 C/O, Self powered.
Technical specifications
| Make | Selec |
| Model | 900VPR-2-280/600V |
| Electrical Connection | 3Ø-3W, 3Ø-4W |
| Display | 3 digits Liquid Crystal Display without backlight |
| Accuracy | Trip Voltage: ±1% of Set Value |
| Output Contact | 2 x 1C/O (SPDT) |
| Output Rating | NC: 3A@250V AC, NO: 5A@250V AC (Res) |
| Operating Voltage | 280 to 520V AC (L-L), 160 to 300V AC (L-N) |
| Size | 35mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE & UL |
Notable features
- Measuring Parameter: Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
- Time Ranges: Trip Time Delay : 0-99.9 sec, Power ON Delay : 2-99.9 sec, Delay ON Release : 0-99.9sec, Response Time : < 200ms
More about the 900VPR-2-280/600V
3Ø-3W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over frequency, 2 x 1 C/O, Self powered
Frequently asked questions about the Selec 900VPR-2-280/600V
What is the 900VPR-2-280/600V?
What is the operating voltage of the 900VPR-2-280/600V?
What is the output contact of the 900VPR-2-280/600V?
What is the display of the 900VPR-2-280/600V?
Where can I download the 900VPR-2-280/600V datasheet?
Is the 900VPR-2-280/600V genuine, and do you provide a GST invoice?
Can I order the 900VPR-2-280/600V in bulk for OEM or wholesale use?
Explore more Selec products

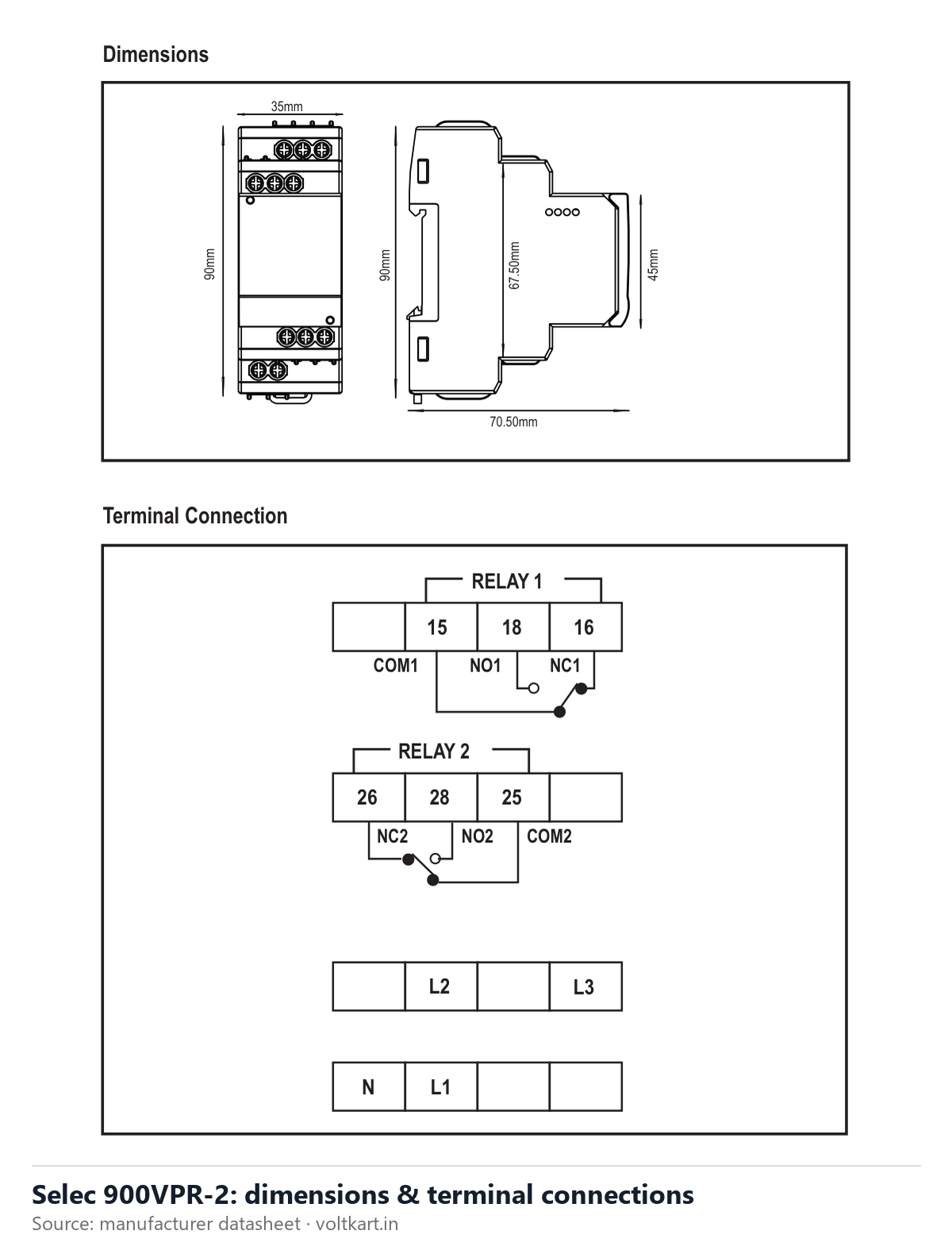

Selec 900VPR-2 wiring diagram: the second product photo is the terminal connection and dimension drawing from Selec's datasheet. The relay supports 3-phase 3-wire and 3-phase 4-wire connection; always follow the terminal markings on the relay. For a step-by-step guide to wiring a voltage protection relay into a DOL starter (supply terminals, output contact in series with the contactor coil), see our VMR relay wiring guide.
