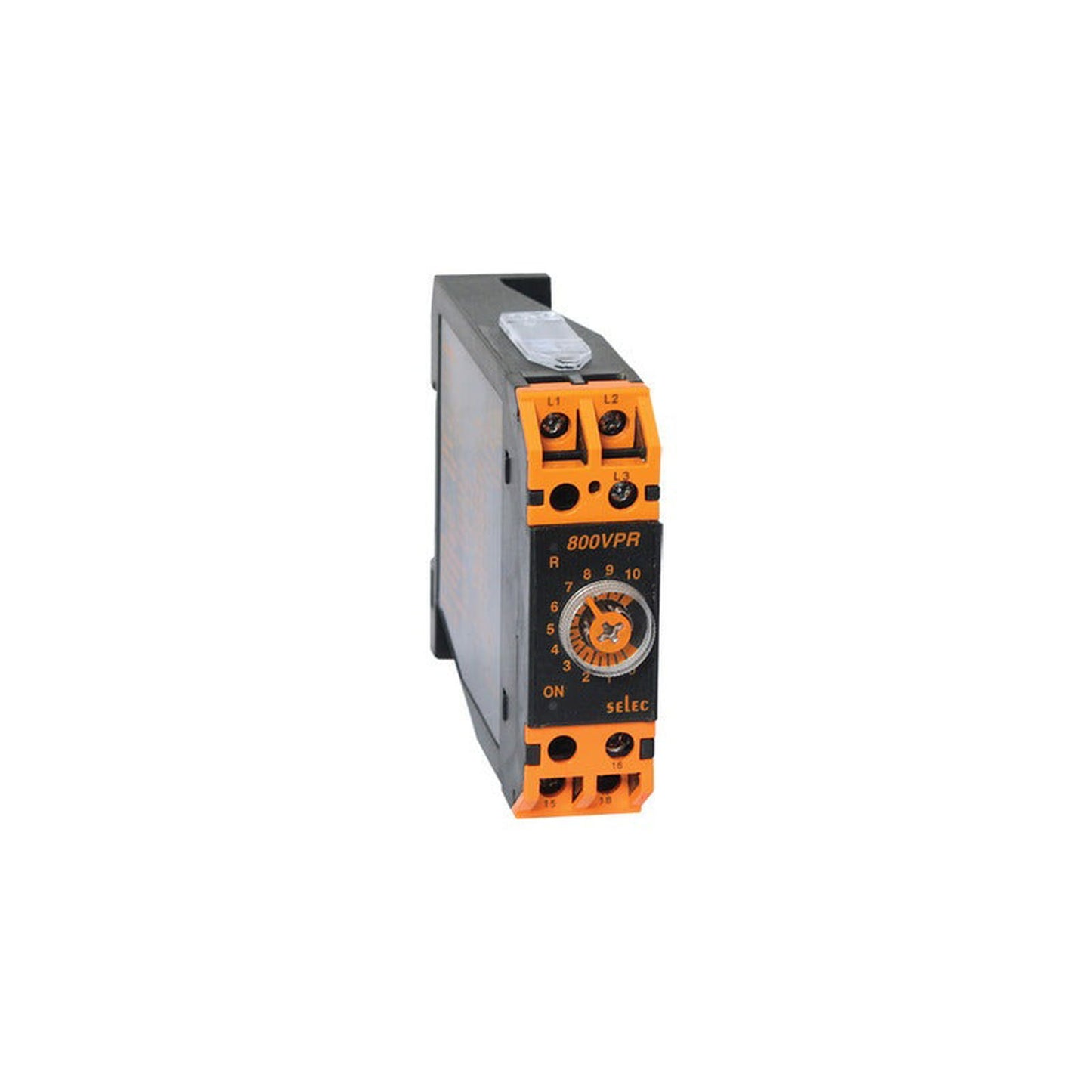

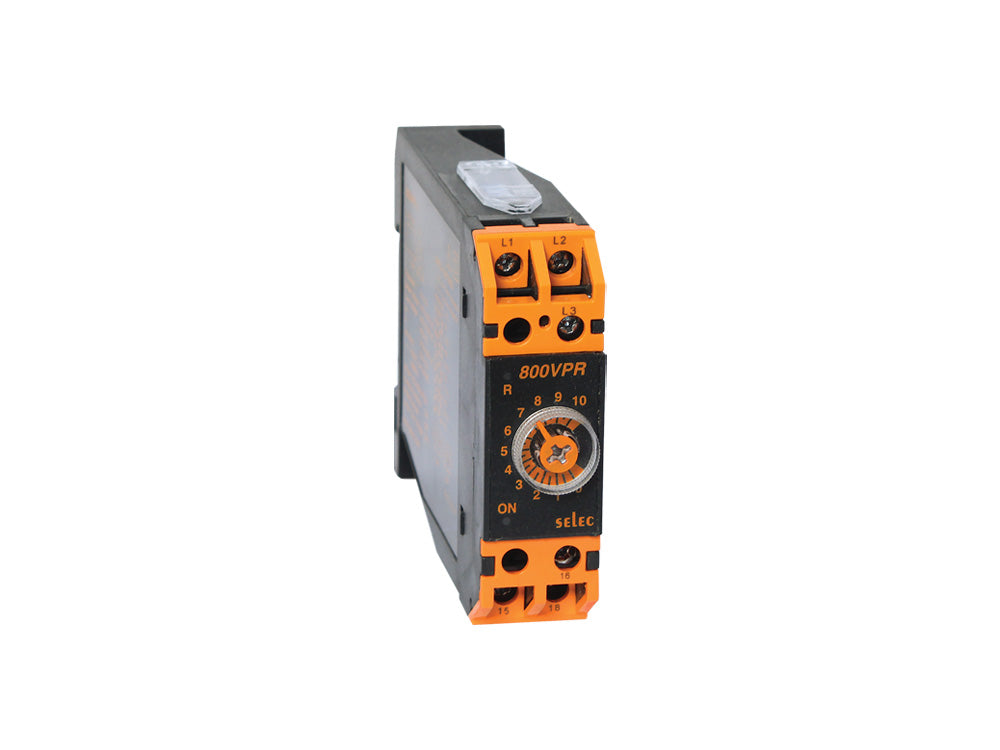

Selec 800VPR-3, Voltage protection relay
Regular price
₹850
Regular price
₹1,392
Sale price
₹850
Incl. GST
Delivery ₹259 under ₹1,000, ₹160 from ₹1,000 · free on orders of ₹3,001+ · Details
Price excl. GST
₹720.34
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
800VPR-3, a protection relay from Selec. 3Ø-3W, Under / Over voltage, Phase failure, Phase sequence, 1 C/O.
Similar Selec protection relays: 600VPR-1-130/320-CE · 600VPR-310/520-CE · 900VPR-2-280/600V · VPRA2M-CE · VPRD2M-BL-CE
Operating Voltage
310 to 520V AC (L-L)
Output Contact
1 C/O ( SPDT )
Accuracy
Trip Voltage: ±0.5% of F.S, Trip Time: ±5% of F.S
Size
22.5mm
Technical specifications
| Make | Selec |
| Model | 800VPR-3 |
| Measuring Parameter | Under Voltage, Over Voltage, Phase Sequence, Phase Failure |
| Electrical Connection | 3Ø - 3W |
| Accuracy | Trip Voltage: ±0.5% of F.S, Trip Time: ±5% of F.S |
| Output Contact | 1 C/O ( SPDT ) |
| Output Rating | NC: 5A@250V AC, NO: 5A@250V AC (Resitive Load) |
| Operating Voltage | 310 to 520V AC (L-L) |
| Size | 22.5mm |
| Mounting Type | DIN Rail Mount |
Notable features
- Time Ranges: Trip Delay: 0 - 10sec & Instantaneous (For Phase Failure & Phase Sequence)
More about the 800VPR-3
3Ø-3W, Under / Over voltage, Phase failure, Phase sequence, 1 C/O
Frequently asked questions about the Selec 800VPR-3
What is the 800VPR-3?
3Ø-3W, Under / Over voltage, Phase failure, Phase sequence, 1 C/O. It is a protection relay made by Selec.
What is the operating voltage of the 800VPR-3?
The 800VPR-3 is listed with operating voltage of 310 to 520V AC (L-L).
What is the output contact of the 800VPR-3?
The 800VPR-3 is listed with output contact of 1 C/O ( SPDT ).
What is the accuracy of the 800VPR-3?
The 800VPR-3 is listed with accuracy of Trip Voltage: ±0.5% of F.S, Trip Time: ±5% of F.S.
Is the 800VPR-3 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the 800VPR-3 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
