Cautoni Swastik
Cautoni Swastik
Cautoni Swastik GT8-ATS-210 PID 48*48
Regular price
₹1,475
Regular price
₹1,766
Sale price
₹1,475
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,250.00
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Voltkart Type J Thermocouple windsor type
₹160
Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
₹280
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Description

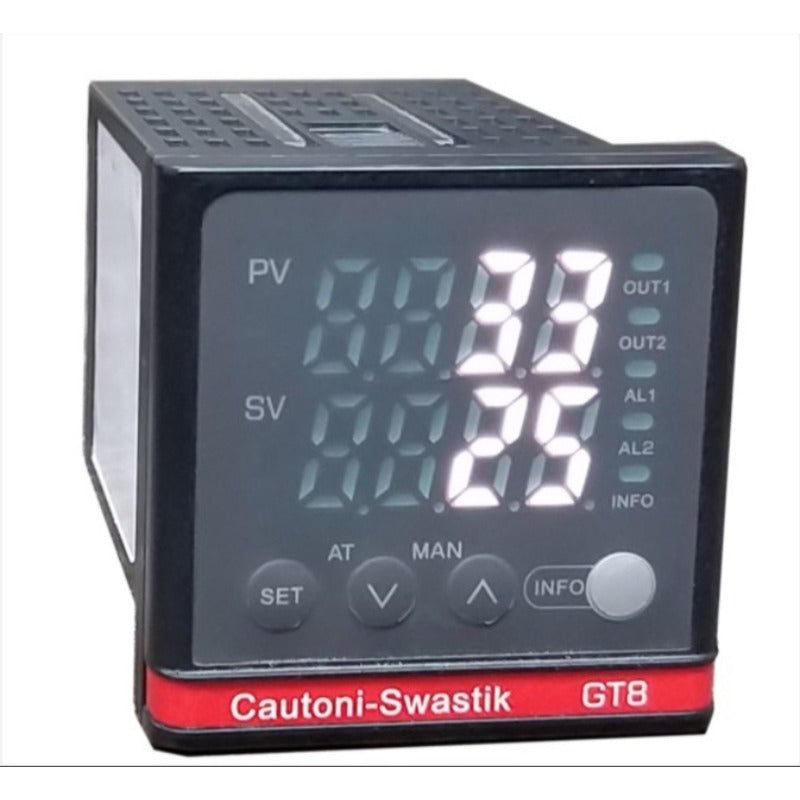

GT8-ATS-210 is a Cautoni Swastik PID temperature controller (48 x 48mm panel, 46 x 46mm panel cut-out), verified against the manufacturer’s official GT8-series manual.
Voltkart is an authorized distributor of Cautoni Swastik, and every order comes with a GST invoice.
Panel size
48 x 48mm
Panel cutout
46 x 46mm
Power supply
85 to 265V AC/DC, 50/60Hz (Switch-mode/universal power supply -- the "S" in the model code)
Sensor input
Thermocouple K/E/J/S/B/N/R/T or RTD PT100/Cu50, universal input (field-selectable)
Technical specifications
| Make | Cautoni Swastik |
| Model | GT8-ATS-210 |
| Panel size | 48 x 48mm |
| Panel cutout | 46 x 46mm |
| Power supply | 85 to 265V AC/DC, 50/60Hz (Switch-mode/universal power supply -- the "S" in the model code) |
| Sensor input | Thermocouple K/E/J/S/B/N/R/T or RTD PT100/Cu50, universal input (field-selectable) |
| Accuracy | ±0.5% FS |
| Control mode | Single PID, ON/OFF, or two-way PID (two-way mode not available on AK6) |
| Relay output rating | AC220V/DC30V, 3A |
Frequently asked questions about the Cautoni Swastik GT8-ATS-210
What is the panel size of the GT8-ATS-210?
48 x 48mm, per the manufacturer’s manual.
What is the panel cutout of the GT8-ATS-210?
46 x 46mm, per the manufacturer’s manual.
What is the power supply of the GT8-ATS-210?
85 to 265V AC/DC, 50/60Hz (Switch-mode/universal power supply -- the "S" in the model code), per the manufacturer’s manual.
What is the sensor input of the GT8-ATS-210?
Thermocouple K/E/J/S/B/N/R/T or RTD PT100/Cu50, universal input (field-selectable), per the manufacturer’s manual.
Where can I download the GT8-ATS-210 datasheet/manual?
You can download it from the datasheet section on this page: GT8-ATS-210 datasheet.
Is the GT8-ATS-210 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Cautoni Swastik, so you receive genuine products, and every order comes with a GST invoice.
Can I order the GT8-ATS-210 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more Cautoni Swastik products
Need help choosing the right model?
Voltkart is an authorised dealer of Cautoni Swastik. Tell us your panel size and application and we will help you pick the correct model.
