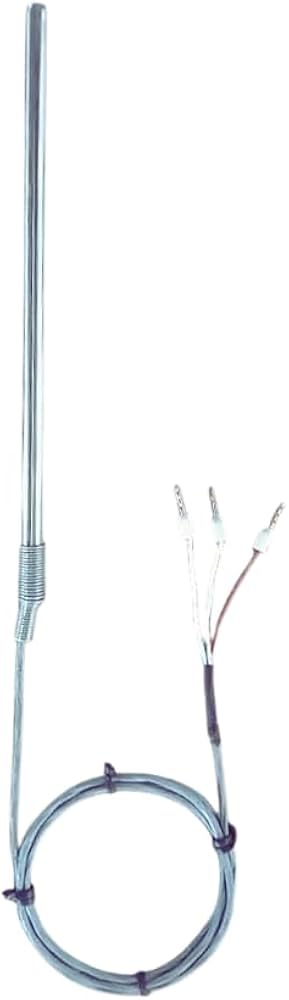

Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Also available as a ready-matched heater control kit (controller + SSR + sensor), added to the cart in one click.
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec TC513BX, 48x48 digital temperature controller, Relay/SSR output
₹1,330
Selec TC303A, 96x96 Digital Temperature Controller Relay/SSR Output
₹1,440
Selec TC533BX, 48*48 Dual Display Temperature Controller, 1 relay/SSR output
₹1,570
Selec TC303AX, 96x96 Digital Temperature Controller Relay/SSR Output
₹1,655
Selec TC203AX, 72x72 Digital Temperature Controller with Relay/SSR Output
₹1,655
Selec TC533AX, 48x48 Digital temperature controller, Dual Display, 1 relay/SSR Output
₹1,780
Description
Pt-100/ RTD 6mm thickness, 6 inch height is a PT100 RTD temperature sensor, used with a temperature controller or PLC analog input to measure temperature in ovens, heaters, chillers and process equipment.
Key specifications
- Sensor type: PT100 (RTD)
- Wiring: 3-core, wired type
- Probe thickness: 6 mm
- Probe length: 6 inch
Pair with a temperature controller that accepts a PT100/RTD input.
Ordering from Voltkart
- GST invoice provided with every order
- Please confirm the model, voltage and rating against your panel before ordering — WhatsApp us on 8800754881 if you want a second opinion
Compare all proximity, photoelectric and fibre sensors with live prices →
Using a PT100 RTD sensor
A PT100 is a platinum resistance sensor that reads 100 ohm at 0 °C. It is more accurate and stable than a thermocouple at lower process temperatures, which is why it is used for water, oil, food and HVAC processes. Set the temperature controller input to PT100 and use the 3-wire connection if the controller supports it, so the cable resistance does not affect the reading.
Pair it with a temperature controller, or see the Type J thermocouple for higher-temperature heaters.
