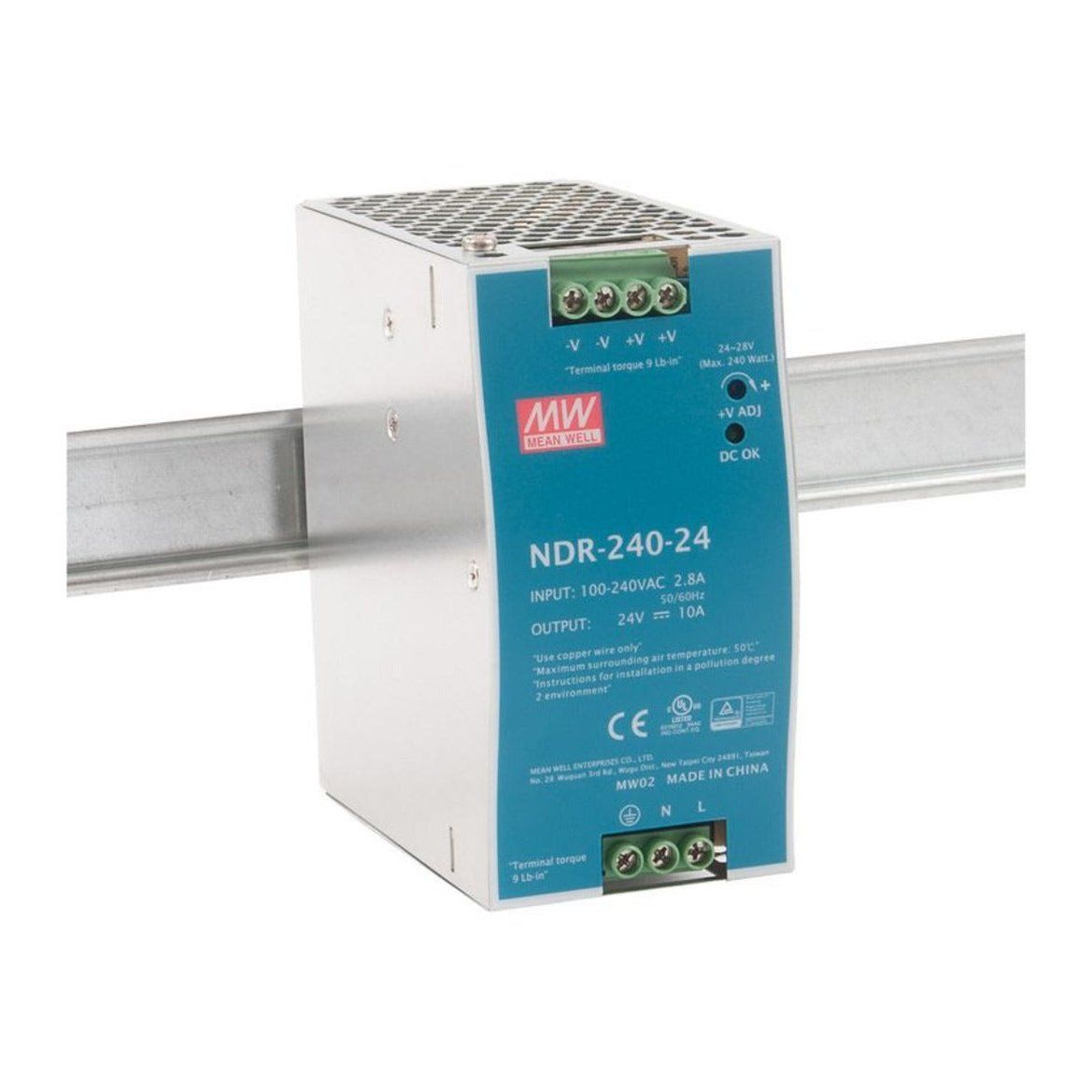

Mean Well NDR-240-24 SMPS 24V 10A DIN Rail Power Supply
Regular price
₹4,536
Regular price
₹8,000
Sale price
₹4,536
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹3,844.07
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
₹1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
₹7,550
EAPL B1DCA-X Cyclic Timer
₹1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
₹605
Description
NDR-240-24, a din rail mounted from Mean Well, rated 24 VDC output at 10 AMP, 240W output power.
Output voltage
24 VDC
Output current
10 AMP
Power
240W
Input voltage
90 to 264V AC 127 to 370V DC
Technical specifications
| Make | Mean Well |
| Model | NDR-240-24 |
| Output voltage | 24 VDC |
| Output current | 10 AMP |
| Input voltage | 90 to 264V AC 127 to 370V DC |
Notable features
- Input voltage range from 90 to 264VAC, 127 to 370VDC, output voltage is 24V
- Output rated current is 10A, output rated power is 240W, typical efficiency is 88.5%
- Universal AC input / full range, cooling by free air convection
- Built-in active PFC function, 100% full load burn-in test
- 3 years warranty
- Working temperature range from -20 to +70°C

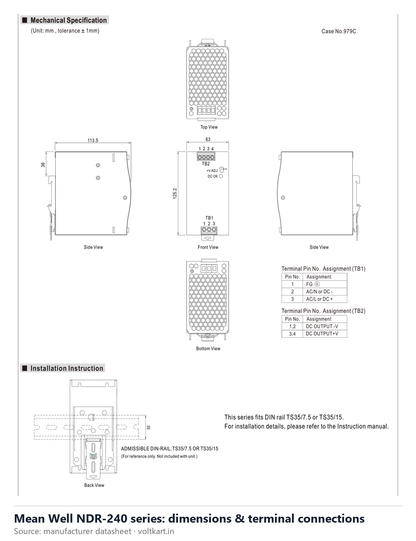

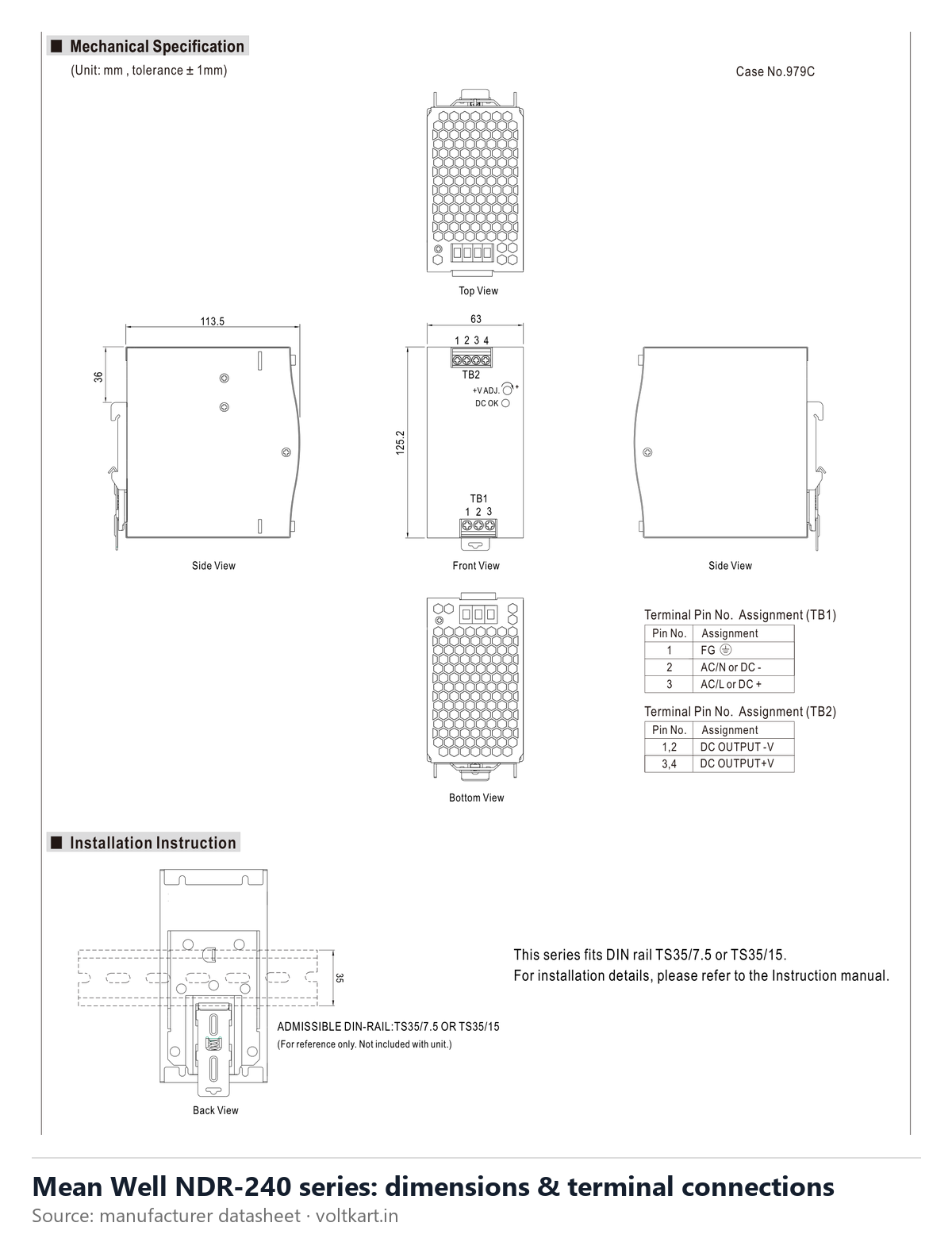

- Dimension is (W x H x D) 63 x 125.2 x 113.5mm
Frequently asked questions about the Mean Well NDR-240-24
What is the output of the Mean Well NDR-240-24?
The NDR-240-24 is rated 24 VDC output, output current 10 AMP, 240W.
What input voltage does the NDR-240-24 accept?
The NDR-240-24 accepts an input of 90 to 264V AC 127 to 370V DC, as listed on this page.
Where can I download the NDR-240-24 datasheet?
You can download it from the datasheet section on this page: NDR-240-24 datasheet.
Is the NDR-240-24 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the NDR-240-24 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
