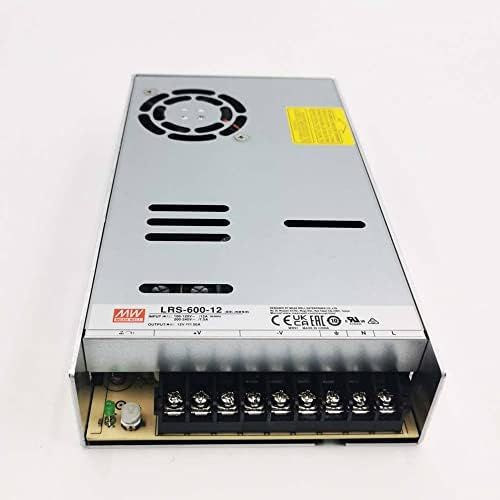

Discover superior power efficiency with the MEANWELL LRS-600-12, a robust 600W power supply engineered for dependable performance. Delivering a stable 12V DC output, this industrial-grade PSU is designed to meet the demands of a diverse range of applications.
Key Features:
-
Power Output: 600W
-
Voltage Output: 12V DC
-
Industrial Grade: Engineered for reliability in demanding industrial environments.
-
Efficient Cooling: Equipped with a fan for optimal temperature management.
-
Versatile Applications: Suitable for a wide range of industrial, commercial, and electronic setups.
-
Stable Power Delivery: Ensures a consistent and reliable power supply.
Upgrade your power infrastructure with the MEANWELL LRS-600-12, providing the efficiency and reliability required for various applications. From electronic devices to industrial machinery, this power supply delivers consistent and stable power, meeting the highest performance standards. Invest in the MEANWELL LRS-600-12 today for a powerful and steadfast solution to your energy needs.
-
Model: LRS-600-12
-
Output Voltage: 12V DC
-
Output Current: 50A
-
Output Power: 600W
-
Input Voltage: 90–132VAC / 180–264VAC (auto-range)
-
Case: Metal enclosure, industrial grade
-
Efficiency: Up to 87%
-
Protection: Short circuit, overload, overvoltage
-
Cooling: Built-in fan (temperature controlled)
-
Certifications: UL, TUV, CB, CE
What is this product?
The Mean Well LRS-600-12 is a high-power industrial switching power supply that converts standard AC mains into a stable 12V DC output at 600W and 50A, built for continuous-duty applications needing high current at low voltage. It's part of Mean Well's popular LRS series, known for reliability in a compact metal casing.
Where is it used?
- LED lighting systems (high-density LED strips, signage, large-scale displays)
- CCTV and security camera power distribution systems
- Battery charging and backup power systems
- Industrial automation equipment running 12V motors, solenoids, and sensors
- Audio/PA systems and amplifier power stages requiring high current 12V supply
Key technical advantages
The LRS-600-12 stands out for delivering a high 50A output current at low 12V voltage in a compact metal casing, which is essential for applications like dense LED installations or multi-camera CCTV setups where high current draw at low voltage is the norm. Its built-in temperature-controlled fan cooling only runs as needed, reducing dust ingress and extending component life versus always-on fan designs. The wide operating temperature range with derating makes it dependable in non-air-conditioned Indian industrial environments, and full protection circuitry (short circuit, overload, overvoltage) is standard, protecting connected low-voltage equipment from damage during fault conditions. The auto-ranging AC input also means it handles India's fluctuating grid voltage without any manual switching required.
Why buy from Voltkart?
Voltkart is an authorized distributor and dealer for Mean Well in India, so every LRS-600-12 you buy from us is 100% genuine with full manufacturer warranty — not a clone or grey-market unit, a real risk with Mean Well products bought from unauthorized sellers. You get a proper GST invoice with every order, PAN India delivery with fast dispatch from our Delhi (Bhagirath Palace) warehouse, and direct WhatsApp support (+91 98996 68881 / 8800754881) for bulk quantity pricing, technical questions on wiring, or help choosing the right voltage/wattage combination for your load.
FAQs
Q: Can the LRS-600-12 run at full 50A output continuously in a hot Indian factory environment?
A: Yes, but derating applies above 50°C ambient — at higher temperatures the unit automatically reduces output current to protect internal components. For full 24/7 full-load operation in very hot enclosures, we recommend adding forced ventilation or sizing up to a higher-wattage model for thermal headroom.
Q: Is the LRS-600-12 suitable for powering long LED strip runs without voltage drop issues?
A: The high 50A current capacity helps support longer or denser LED strip runs, but voltage drop over long cable distances is still a factor — for very long runs, we recommend feeding power from both ends of the strip or using thicker gauge cabling, and we can advise based on your strip length and wattage.
Q: What's the difference between the LRS-600-12 and LRS-600-48 in terms of application?
A: Both deliver 600W total, but the LRS-600-12 provides 12V/50A for low-voltage, high-current loads like LED strips and 12V equipment, while the LRS-600-48 provides 48V/12.5A better suited to industrial automation and 48V-rated equipment — choose based on the voltage your load actually requires, not just the wattage.
