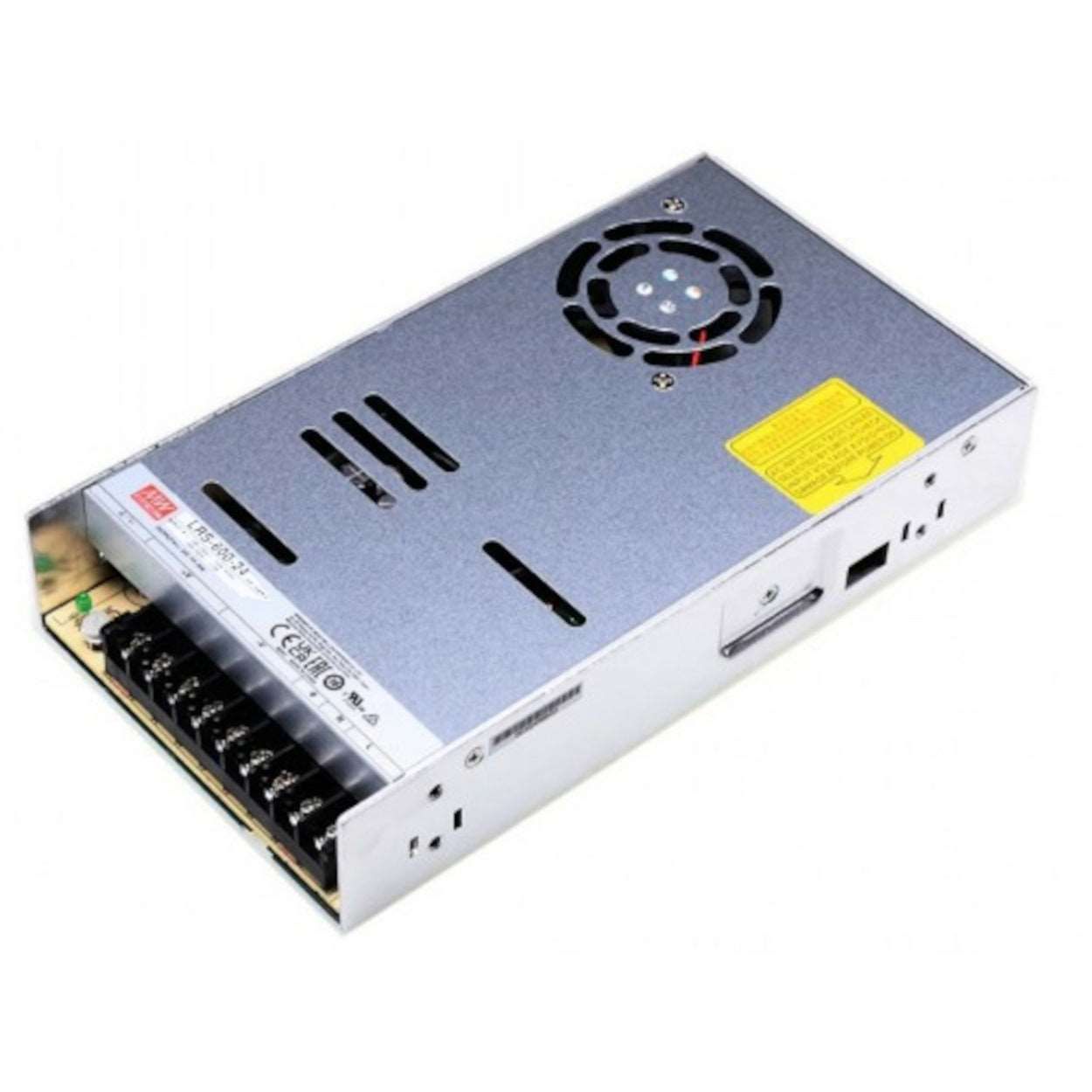

Elevate your industrial and electronic projects with the MeanWell LRS-600-48, a robust power supply designed for precise and efficient performance. With a stable 48V DC output and a current rating of 12.5A, this industrial power supply is the cornerstone of reliability in a wide range of applications.
Key Features:
- Input Voltage: 110-240VAC (Universal Input)
- Output Voltage: 48V DC
- Output Current: 12.5A
- Power Rating: 600W
- High Efficiency: Up to 89%
- Compact Design for Seamless Integration
- Overload and Short Circuit Protection for Enhanced Safety
- Certifications: UL, CUL, TUV, and CE Certified
- Exceptional Reliability for Long-Term Use
The MeanWell LRS-600-48 is your trusted power source for electronics, control systems, and various industrial applications. It delivers consistent and stable power, ensuring the reliable performance of your critical projects. Shop now and experience the quality and precision that MeanWell power supplies are renowned for.
Specifications (existing/cleaned up)
-
Model: LRS-600-48
-
Output Voltage: 48V DC
-
Output Current: 12.5A
-
Output Power: 600W
-
Input Voltage: 90–132VAC / 180–264VAC (auto-range)
-
Case: Metal enclosure, industrial grade
-
Efficiency: Up to 89%
-
Protection: Short circuit, overload, overvoltage
-
Cooling: Built-in fan (temperature controlled)
-
Certifications: UL, TUV, CB, CE
What is this product?
The Mean Well LRS-600-48 is a high-power industrial switching power supply that converts standard AC mains into a stable 48V DC output at 600W, designed for continuous-duty applications where reliability matters. It's part of Mean Well's popular LRS series, known for compact size relative to its power output.
Where is it used?
- LED lighting systems (street lighting, high-bay industrial lighting)
- CNC machines and industrial automation equipment
- Battery charging systems and backup power setups
- Communication and networking equipment (telecom racks)
- Factory automation panels driving 48V motors, relays, and sensors
Key technical advantages
The LRS-600-48 stands out for its compact metal casing that packs 600W into a smaller footprint than many competing units, making it easier to fit into space-constrained panels. Its built-in temperature-controlled fan means the cooling only runs as needed, reducing dust ingress and extending component life compared to always-on fan designs. The wide operating temperature range (-10°C to +60°C with derating) makes it well-suited to Indian industrial environments with high ambient heat. Full protection circuitry (short circuit, overload, overvoltage) is built in as standard, and the auto-ranging input means it works reliably across India's variable grid voltage without manual switching.
Why buy from Voltkart?
Voltkart is an authorized distributor and dealer for Mean Well in India, so every LRS-600-48 you buy from us is 100% genuine with full manufacturer warranty — not a clone or grey-market unit (a real risk with Mean Well products bought from unauthorized sellers). You get a proper GST invoice with every order, PAN India delivery with fast dispatch from our Delhi (Bhagirath Palace) warehouse, and direct WhatsApp support (+91 98996 68881 / 8800754881) for bulk quantity pricing, technical questions on wiring, or help choosing between LRS, NDR, or SE series for your specific load.
FAQs
Q: Can the LRS-600-48 run at full 12.5A output continuously in a hot Indian factory environment?
A: Yes, but derating applies above 50°C ambient. At higher temperatures the unit automatically reduces output current to protect internal components — for full 24/7 full-load operation in very hot enclosures, we recommend adding forced ventilation or choosing a higher-wattage model for headroom.
Q: Is the LRS-600-48 compatible with parallel operation for higher current requirements?
A: Yes, select Mean Well LRS series units support parallel operation with a current-share function for increased output current — check that your specific batch supports this feature, and we can confirm compatibility before you order.
Q: What's the difference between LRS-600-48 and the older S-600-48 series?
A: The LRS series is Mean Well's newer generation, offering higher efficiency, a smaller footprint, and improved protection features compared to the older S-series, while maintaining the same 48V/600W output rating — it's a direct upgrade path if you're replacing an S-600-48.
