Unison 901 PHT 24 90 420 CU2, Scr, Input 4-20ma, output 240vac, 90amp
Regular price
₹2,150
Regular price
₹2,900
Sale price
₹2,150
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,822.03
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
G-68 SSR Heat Sink, up to 26A, DIN Rail Mount
₹180
Selec TC513BX, 48x48 digital temperature controller, Relay/SSR output
₹1,330
Selec TC303A, 96x96 Digital Temperature Controller Relay/SSR Output
₹1,440
Selec TC533BX, 48*48 Dual Display Temperature Controller, 1 relay/SSR output
₹1,570
Selec TC303AX, 96x96 Digital Temperature Controller Relay/SSR Output
₹1,655
Selec TC203AX, 72x72 Digital Temperature Controller with Relay/SSR Output
₹1,655
Description
901 PHT 24 90 420 CU2, a solid state relay (SSR) from Unison, verified against the manufacturer’s own datasheet. 4-20mA (100Ω) or 0-10VDC (560Ω) -- set by the last 3 digits of the order code control input, 230V AC (47-63Hz) output.
Control input
4-20mA (100Ω) or 0-10VDC (560Ω) -- set by the last 3 digits of the order code
Output rating
230V AC (47-63Hz)
Load current
36A (B-48 heat sink) or 65A (A-100 heat sink) @40°C
PIV
1200Vpk

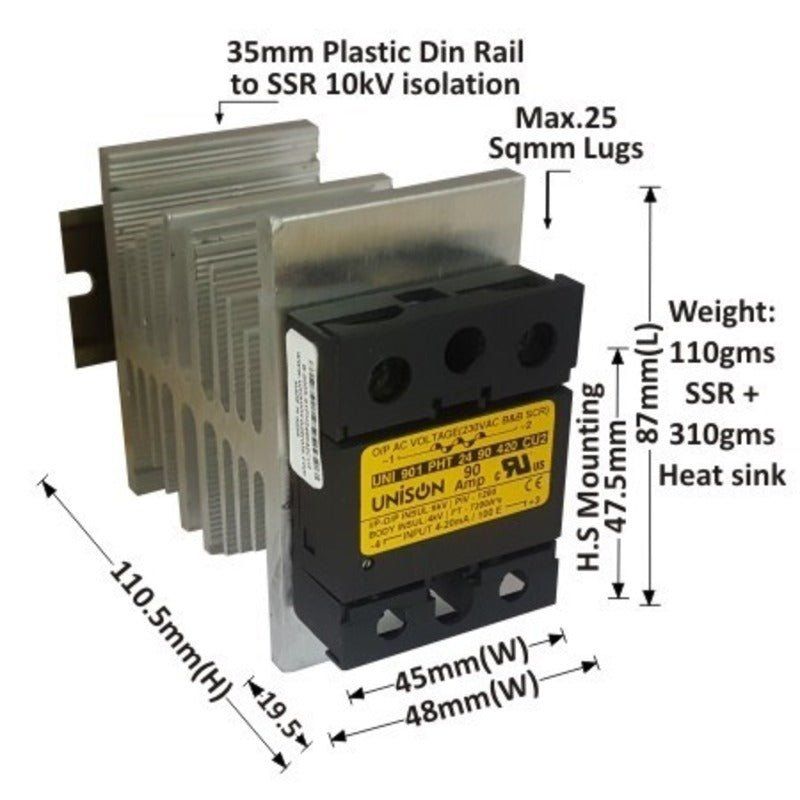

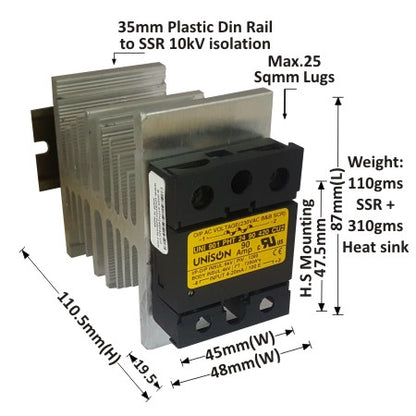

About the photo: the product image is Unison’s own dimension drawing, shown with a heat sink attached for scale. The heat sink is sold separately and is not included with this purchase unless the title says otherwise.
Technical specifications
| Make | Unison |
| Model | 901 PHT 24 90 420 CU2 |
| Control input | 4-20mA (100Ω) or 0-10VDC (560Ω) -- set by the last 3 digits of the order code |
| Output rating | 230V AC (47-63Hz) |
| Load current | 36A (B-48 heat sink) or 65A (A-100 heat sink) @40°C |
| PIV | 1200Vpk |
| Body / I-O isolation | 4kV / 8kV for 1 min |
Note on load current: the amp number in a Unison model code is a switching/reference current class, not automatically the safe continuous load current. The figure above is what Unison’s own datasheet states for the heat sink shown — check the full datasheet for your exact operating conditions before sizing a load.
Frequently asked questions about the Unison 901 PHT 24 90 420 CU2
What is the load current rating of the 901 PHT 24 90 420 CU2?
36A (B-48 heat sink) or 65A (A-100 heat sink) @40°C, per Unison’s own datasheet.
What is the control input for the 901 PHT 24 90 420 CU2?
4-20mA (100Ω) or 0-10VDC (560Ω) -- set by the last 3 digits of the order code.
What output can the 901 PHT 24 90 420 CU2 switch?
230V AC (47-63Hz).
Where can I download the 901 PHT 24 90 420 CU2 datasheet?
You can download it from the datasheet section on this page: 901 PHT 24 90 420 CU2 datasheet.
Is the 901 PHT 24 90 420 CU2 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Unison, so you receive genuine Unison products, and every order comes with a GST invoice.
Can I order the 901 PHT 24 90 420 CU2 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
