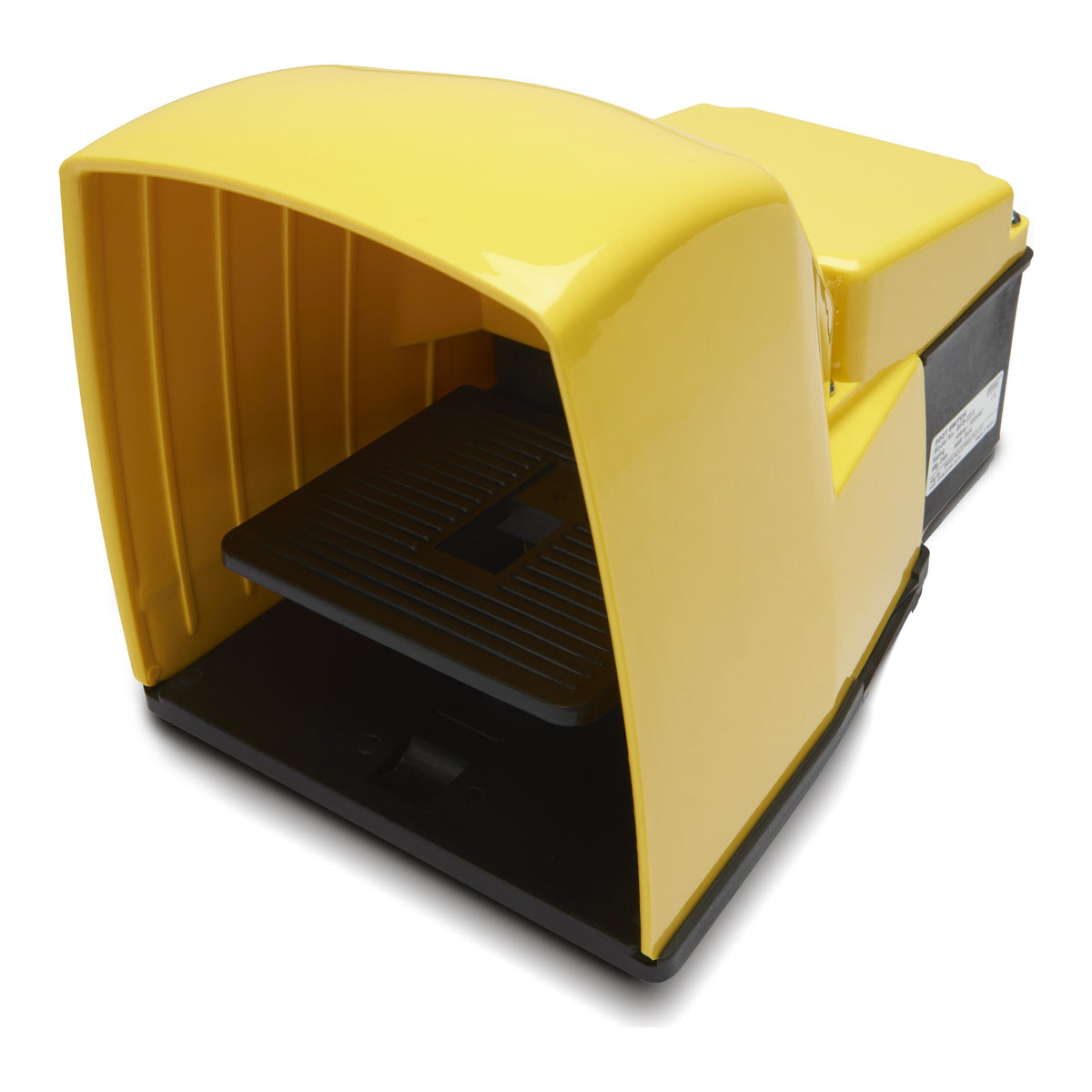

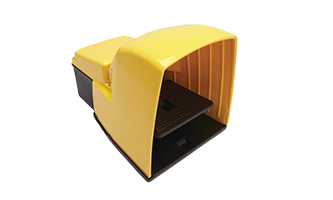

Brisk BFS-22/X Heavy Duty Foot Switch
No reviews
Regular price
Rs. 2,448.26
Regular price
Rs. 3,192.00
Sale price
Rs. 2,448.26
Incl. all taxes • Shipping calculated at checkout.
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
Price excl. GST
Rs. 2,074.80
GST @ 18% included in above product price
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Couldn't load pickup availability
Description
BFS-22/X, Brisk Heavy Duty Foot Switch – a heavy-duty foot switch with SPDT-DB contacts rated 10A at 500V AC. The body and lever are glass-filled nylon and the cover is unbreakable polycarbonate. Made by Brisk Industries Pvt Ltd, India.
Download the BFS-22/X datasheet (PDF) | Supplied by Voltkart, authorised distributor of Brisk, with GST invoice. Browse more foot switches or all Brisk products.
Rating
10A at 500V AC
Contacts
SPDT-DB
Body
Glass-filled nylon (body and lever)
Protection
IP67
Technical specifications
| Make | Brisk (Brisk Industries Pvt Ltd, India) |
| Model | BFS-22/X |
| Rating | 10A at 500V AC |
| Contacts | SPDT-DB |
| Cover | Unbreakable polycarbonate |
| Ingress protection | IP67 |
| Body | Glass-filled nylon (body and lever) |
| Contact material | Silver |
| Terminals | Brass |
| Contact resistance | 10 mΩ |
| Insulation resistance | 100 MΩ |
| High voltage test | 1 kV AC between open contacts |
| Electrical life | 1 lakh operations |
| Mechanical life | 1 million operations |
| Standard | Complies with IEC 60947-5-1 |
PDF
Brisk BFS-22/X datasheet
Official Brisk datasheet with dimensions, wiring and full specifications. PDF, 566 KB
Typical applications
- Heavy-duty foot control on presses, machine tools and industrial equipment
- Workshops and production lines with frequent foot operation
- OEM machine building that needs a 10A, 500V AC foot switch
Frequently asked questions about the Brisk BFS-22/X
What is the rating of the Brisk BFS-22/X?
The BFS-22/X is rated 10A at 500V AC. Contacts: SPDT-DB. Brisk states that it complies with IEC 60947-5-1.
What contact configuration does the BFS-22/X have?
The BFS-22/X has SPDT-DB contacts. SPDT-DB means single-pole double-throw with double-break contacts: one normally open (NO) and one normally closed (NC) contact, so you can wire it as NO or NC.
Where is the Brisk BFS-22/X used?
The BFS-22/X is a Brisk foot switch. Typical uses: heavy-duty foot control on presses, machine tools and industrial equipment; workshops and production lines with frequent foot operation; OEM machine building that needs a 10A, 500V AC foot switch.
What is the difference between the BFS-22/X and the BFS-10/X?
Both are Brisk foot switches. Comparing the datasheets: the BFS-22/X body is glass-filled nylon (body and lever) while the BFS-10/X body is aluminium pressure die casting; the BFS-22/X has an unbreakable polycarbonate cover; the BFS-22/X lists IP67 ingress protection in its datasheet. You can see the BFS-10/X here: Brisk BFS-10/X Heavy Duty Foot Switch. If you are unsure which one suits your machine, message us on WhatsApp 8800754881.
What is the operating life of the BFS-22/X?
The Brisk datasheet lists a mechanical life of 1 million operations and an electrical life of 1 lakh operations.
What is the ingress protection (IP) rating of the BFS-22/X?
The Brisk datasheet lists an ingress protection rating of IP67 for the BFS-22/X. Its body is glass-filled nylon (body and lever).
Where can I download the BFS-22/X datasheet?
You can download the official Brisk BFS-22/X datasheet (PDF, 566 KB) from the datasheet section on this page: BFS-22/X datasheet. It has the dimensions, wiring and full specifications.
Is the BFS-22/X genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised distributor of Brisk, so you receive genuine Brisk products, and every order comes with a GST invoice.
Can I order the BFS-22/X in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
