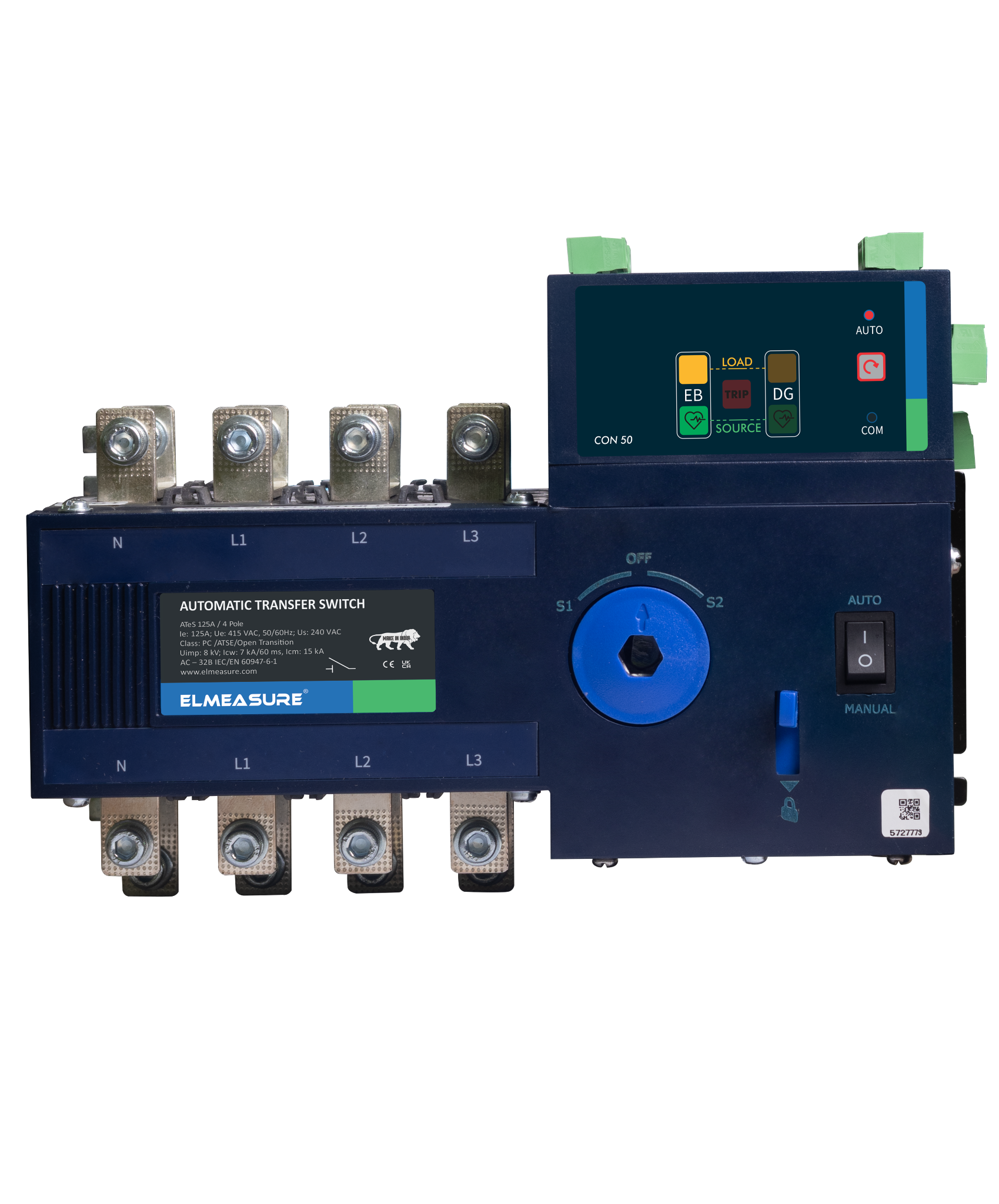

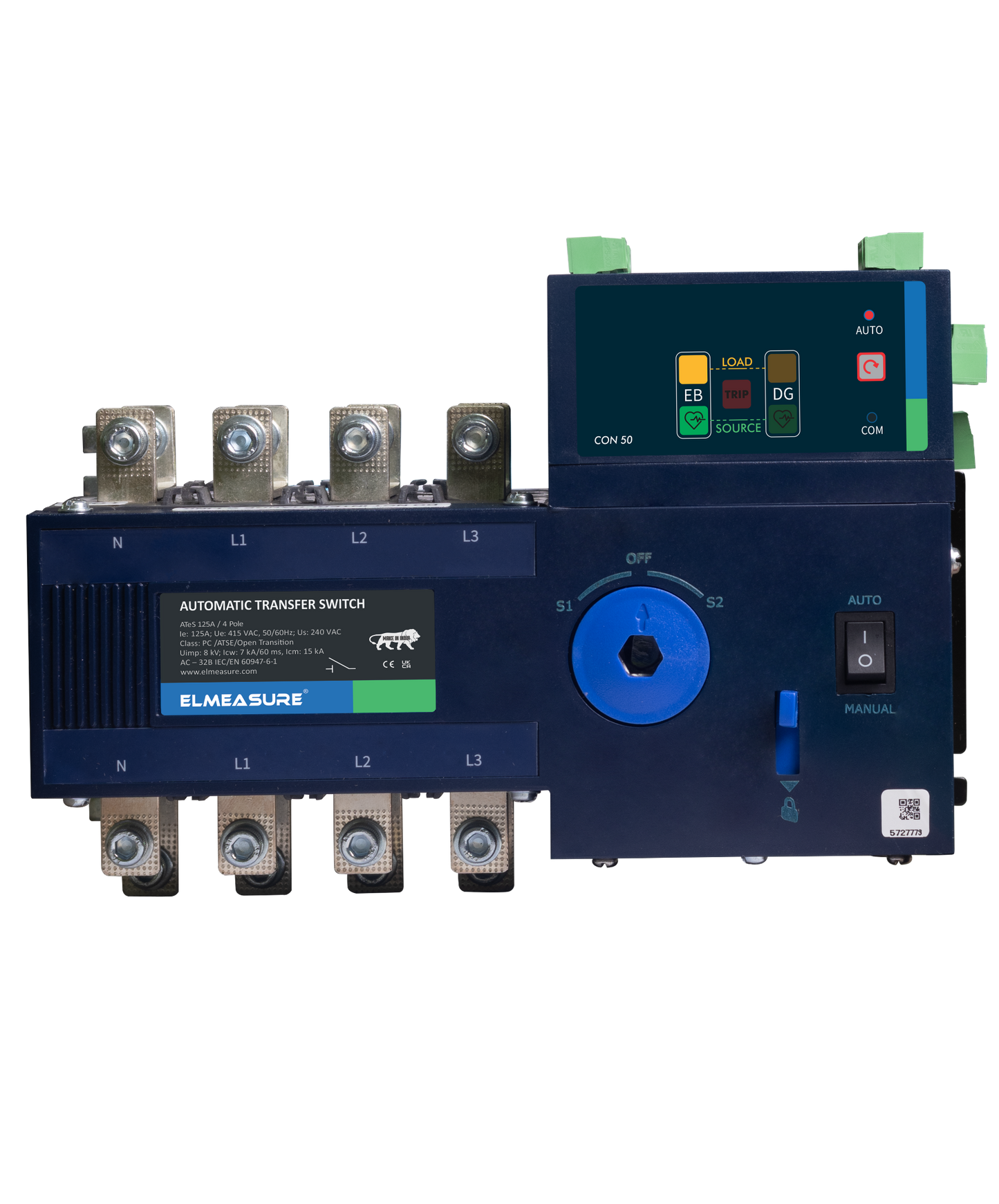

Elmeasure ATS 200 A (AT02FUE00200) Automatic transfer switch Motorized 200 Ampere, 4 Pole

ELMEASURE ATS 200 A (AT02FUE00200) Automatic transfer switch Motorized 200 Ampere, 4 Pole is an Elmeasure automatic transfer switch (ATS) that changes a load over from mains to a standby generator when the mains supply fails, and back again once it returns — used with generators in factories, buildings and telecom sites.

Voltkart is an authorized distributor of Elmeasure, and every order comes with a GST invoice.

Key specifications

• Current rating: 200 A
• Poles: 4 (motorized)
• Controller display: LED
• Supply range: Universal

Related: automatic transfer switches.

Ordering from Voltkart

• GST invoice provided with every order
• Please confirm the model, voltage and rating against your panel before ordering — WhatsApp us on 8800754881 if you want a second opinion

How an automatic transfer switch works

The ATS controller watches the mains supply. When mains fails or goes out of range, it signals the generator to start and, once the generator voltage is stable, the motorised mechanism moves the load from mains to generator. When mains returns and stays healthy, it transfers the load back and lets the generator cool down and stop. Because the mechanism cannot connect both sources at once, the generator can never back-feed the grid.

Choosing the ATS rating

• Size the ATS for the full current of the load it will carry, not the generator kVA alone. Roughly, a three-phase 415 V load draws 1.4 to 1.7 A per kW, depending on power factor.
• A 4-pole ATS also switches the neutral, which is the usual choice when mains and generator neutrals must be kept separate.
• Check the generator has an auto-start input that the ATS controller can drive.

Other ratings: all Elmeasure automatic transfer switches. Installation should be done by a licensed electrician.
