Omron E2B-S08KS02-WP-C1 8mm Proximity Sensor, NPN NO, 2mm Sensing, 2M Cable
Incl. all taxes • Shipping calculated at checkout.
Delivery ₹259 on orders under ₹1,000, ₹160 from ₹1,000, free from ₹3,001 · Details
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider RXM2LB2BD Miniature Plug-in Relay 2 C/O, 5A, 24V DC, 8 Pin
₹360
Schneider RXM4LB2BD Miniature Plug-in Relay 4 C/O, 3A, 24V DC, 14 Pin
₹410
Schneider RXM2AB2BD Miniature Plug-in Relay 2 C/O, 12A, 24V DC, 8 Pin
₹530
Description
E2B-S08KS02-WP-C1 is an Omron inductive proximity sensor -- inductive proximity sensing for metal object detection -- checked against Omron’s own published product data.

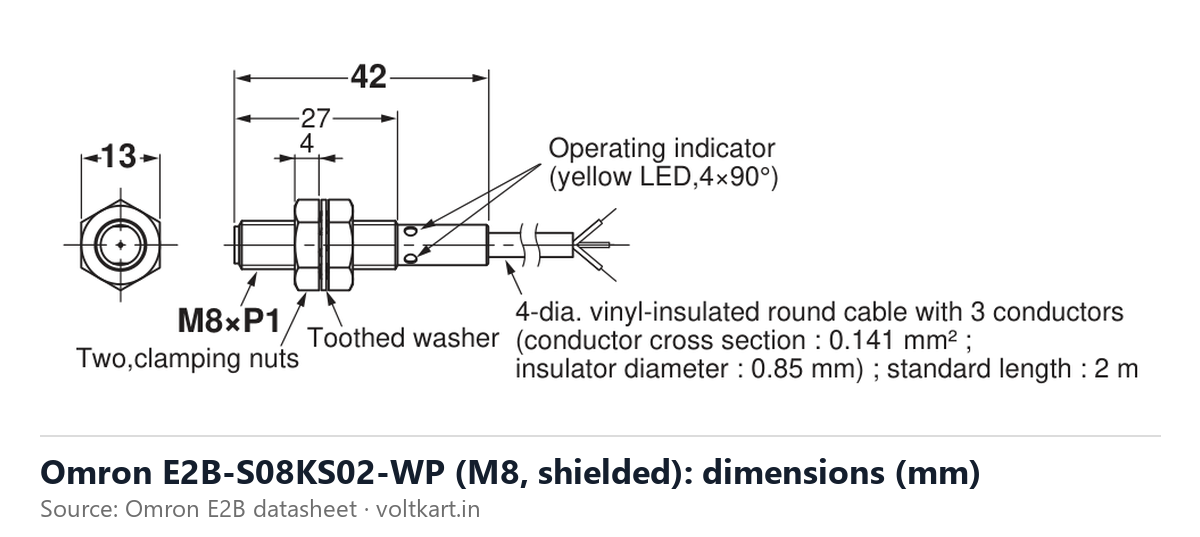

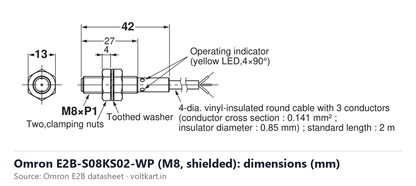

Technical specifications
| Make | Omron |
| Model | E2B-S08KS02-WP-C1 |
| Size | M8 |
| Mounting type | Flush |
| Sensing distance | 2 mm |
| Output type | NPN |
| Operation mode | NO |
| Connection method | Cable |
| Material housing | Stainless steel |
| Cable specifications | PVC |
| Cable length | 2 m |
| Overall length of sensor | 42 mm |
| Thread length | 27 mm |
| Degree of protection (IP) | IP67 |
Frequently asked questions about the Omron E2B-S08KS02-WP-C1
What is the size of the E2B-S08KS02-WP-C1?
What is the mounting type of the E2B-S08KS02-WP-C1?
What is the sensing distance of the E2B-S08KS02-WP-C1?
What is the output type of the E2B-S08KS02-WP-C1?
Where can I check the E2B-S08KS02-WP-C1 specifications?
Is the E2B-S08KS02-WP-C1 genuine, and do you provide a GST invoice?
Can I order the E2B-S08KS02-WP-C1 in bulk for OEM or panel-building use?
Explore more Omron products
Compare all proximity, photoelectric and fibre sensors with live prices →
PNP vs NPN: wiring colours and which to choose for your PLC →
Choose your Omron proximity sensor
All six are Omron E2B inductive sensors (they detect metal), normally open, IP67, with a 2 m cable. Pick the barrel size that fits your bracket (a bigger barrel senses further), then PNP or NPN to match your PLC input: PNP for sourcing inputs, NPN for sinking inputs.
- E2B-S08KS02-WP-B1: M8 barrel, 2 mm sensing, PNP NO, IP67, 2 m cable
- E2B-S08KS02-WP-C1 (this sensor): M8 barrel, 2 mm sensing, NPN NO, IP67, 2 m cable
- E2B-M12KS04-WP-B1: M12 barrel, 4 mm sensing, PNP NO, IP67, 2 m cable
- E2B-M12KS04-WP-C1: M12 barrel, 4 mm sensing, NPN NO, IP67, 2 m cable
- E2B-M18KS08-WP-B1: M18 barrel, 8 mm sensing, PNP NO, IP67, 2 m cable
- E2B-M18KS08-WP-C1: M18 barrel, 8 mm sensing, NPN NO, IP67, 2 m cable
Not sure which output you need? Read PNP vs NPN proximity sensors. See also the Omron range and all proximity sensors.
