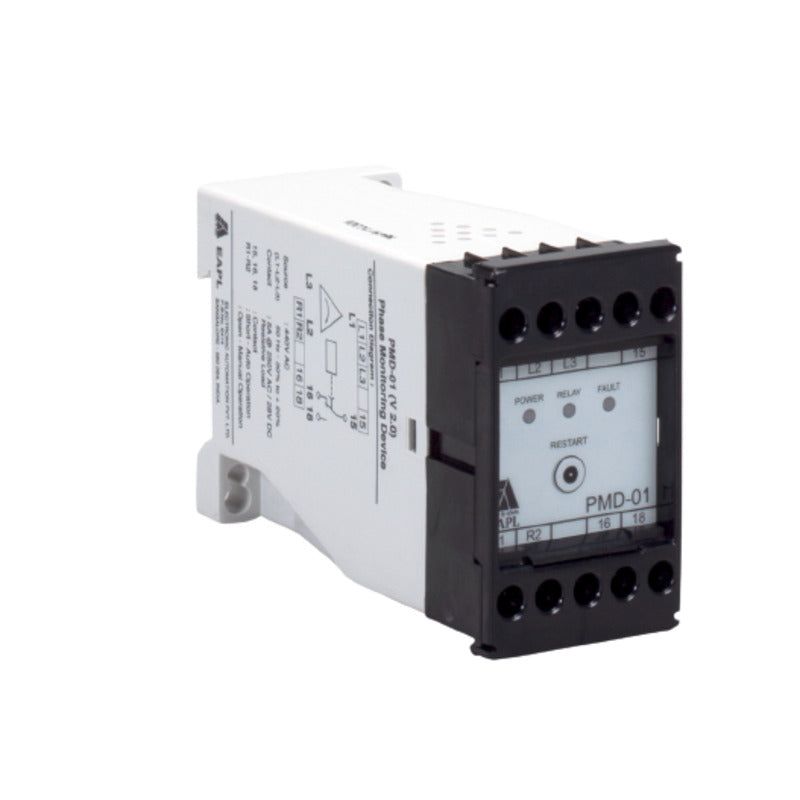

EAPL PMD-01 Phase Failure Relay
Regular price
₹1,550
Regular price
₹1,920
Sale price
₹1,550
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹1,313.56
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
PMD-01 is an EAPL protection relay -- monitors phase unbalance, phase failure, phase sequence and under-voltage; self-powered -- verified against EAPL’s own official product catalogue.
Input voltage
440V AC, 3-phase, 3-wire
Power
Self-powered
Output
2 C/O, 5A resistive
Overall dimensions
45 x 75 x 116mm (W x H x D)
Technical specifications
| Make | EAPL |
| Model | PMD-01 |
| Function | Monitors phase unbalance, phase failure, phase sequence and under-voltage; self-powered |
| Input voltage | 440V AC, 3-phase, 3-wire |
| Power | Self-powered |
| Output | 2 C/O, 5A resistive |
| Overall dimensions | 45 x 75 x 116mm (W x H x D) |
| Resetting | Manual, from front button or rear terminals |
Frequently asked questions about the EAPL PMD-01
What is the input voltage of the PMD-01?
440V AC, 3-phase, 3-wire, per EAPL’s official catalogue.
What is the power of the PMD-01?
Self-powered, per EAPL’s official catalogue.
What is the output of the PMD-01?
2 C/O, 5A resistive, per EAPL’s official catalogue.
What are the overall dimensions of the PMD-01?
45 x 75 x 116mm (W x H x D), per EAPL’s official catalogue.
Where can I download the PMD-01 specifications?
You can download EAPL’s official product catalogue from the link on this page: PMD-01 catalogue.
Is the PMD-01 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the PMD-01 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
