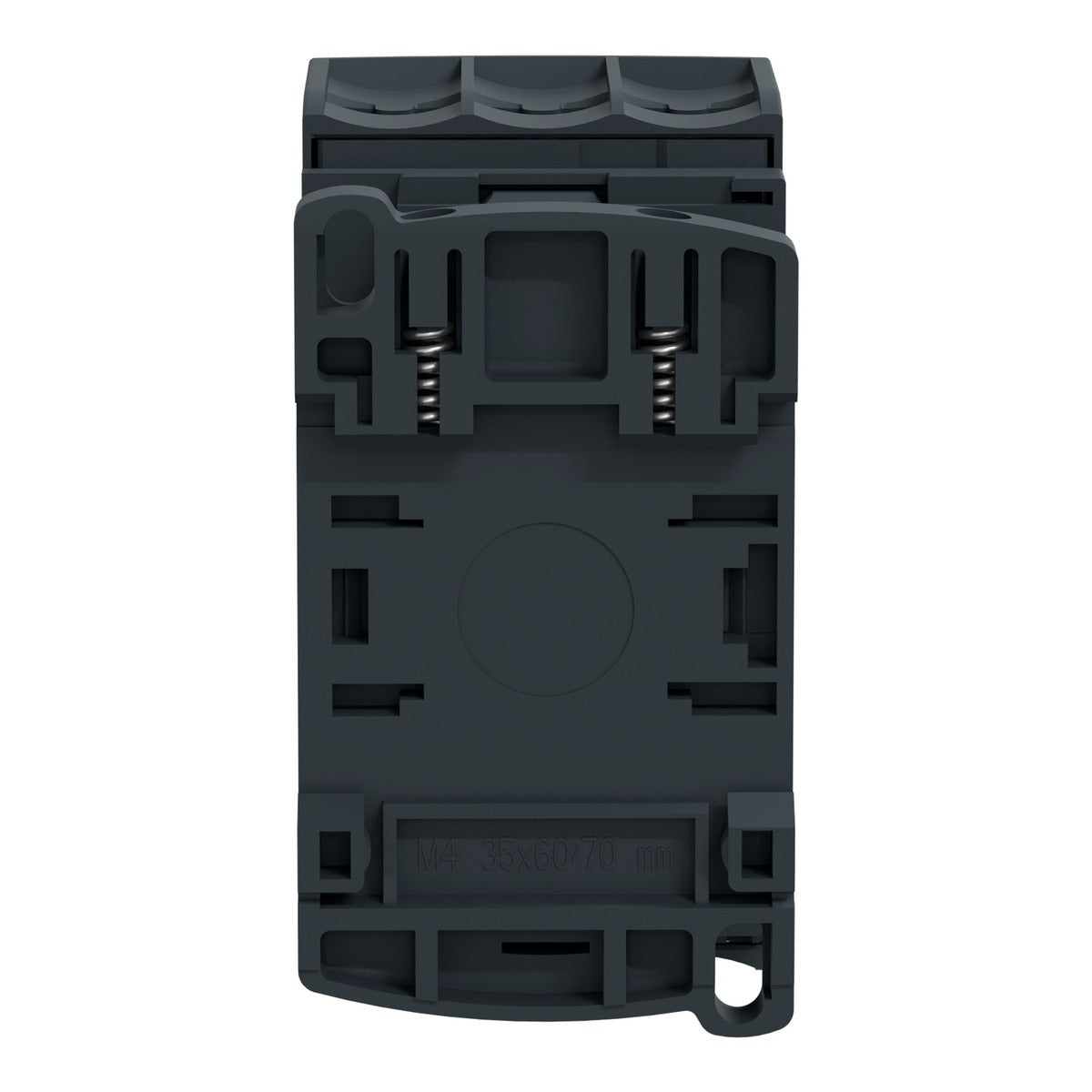

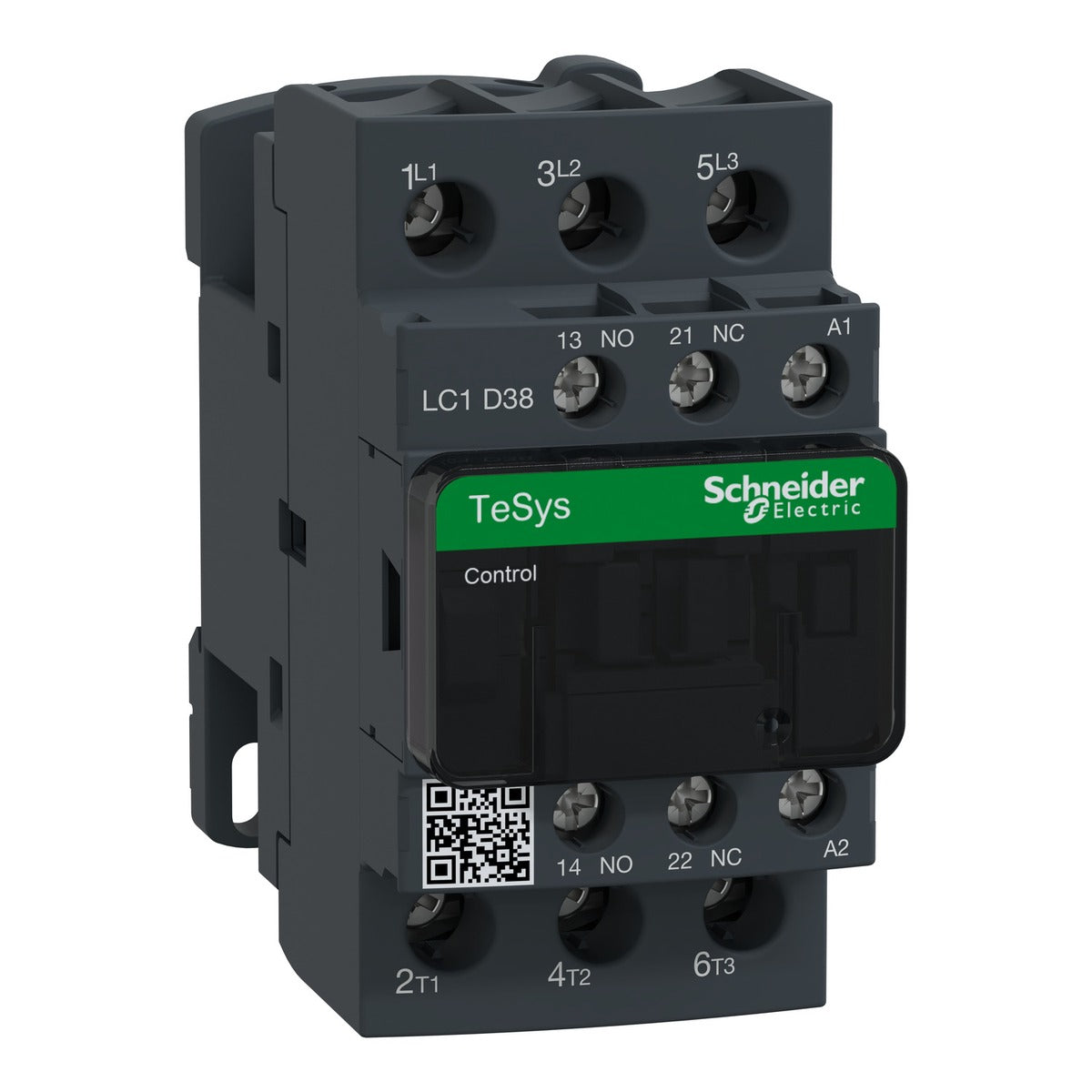

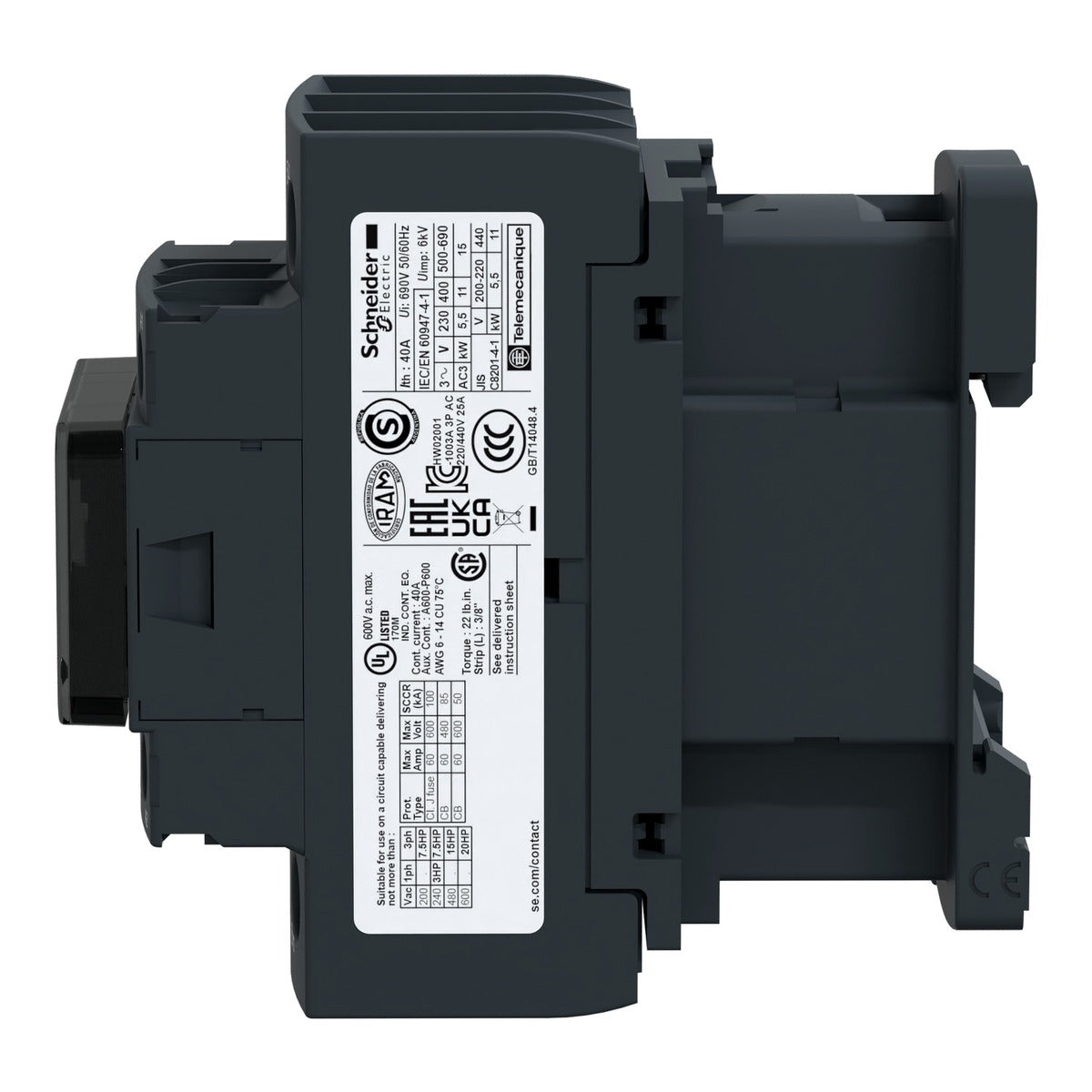

Schneider LC1D38, 38 Amp Contactor
No reviews
Regular price
₹6,378
Regular price
₹14,530
Sale price
₹6,378
Incl. GST
Free delivery across India · Details
Price excl. GST
₹5,405.08
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LRD35 Overload Relay 30-38A, for LC1D
₹3,510
Schneider LRD32 Overload Relay 23-32A, for LC1D
₹3,510
Schneider LRD22 Overload Relay 16-24A, for LC1D
₹2,200
Schneider LRD21 Overload Relay 12-18A, for LC1D
₹2,200
Schneider Lc1d series 1no 1nc top mounted block Ladn11
₹541
Schneider Lc1d series 2no 2nc top mounted block Ladn22
₹986
Description
LC1D38 is a Schneider Electric TeSys Deca (LC1D) contactor. Schneider lists it as: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 220 V AC 50/60 Hz coil.
Overload relay for this contactor (from our motor current chart, set at the motor nameplate current): 18.5 kW motor: LRD35 (30–38 A).
38 A in the other series: LC1E3810 (Easy TeSys)
Same series, other ratings: LC1D32, 32 A · LC1D40A, 40 A
AC-3 rated current
38 A
Uc control circuit voltage
220 V AC 50/60 Hz
Poles description
3P
Utilisation category
AC-3
Technical specifications
| Make | Schneider Electric |
| Model | LC1D38 |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Contactor application | Motor control; Resistive load |
| Utilisation category | AC-3; AC-3e; AC-1 |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC |
| Ie rated operational current | 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Uc control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 9 kW at 220/230 V AC 50/60 Hz (AC-3); 18.5 kW at 380/400 V AC 50/60 Hz (AC-3) |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Ith conventional free air thermal current | 10 A (at 60 °C) for signalling circuit; 50 A (at 60 °C) for power circuit |
| Rated breaking capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| Power dissipation per pole | 5 W AC-1; 3 W AC-3 |
| Ui rated insulation voltage | Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified |
| Uimp rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Mechanical durability | 15 Mcycles |
| Electrical durability | 1.4 Mcycles 50 A AC-1 at Ue <= 440 V; 1.4 Mcycles 38 A AC-3 at Ue <= 440 V |
| Operating time | 4...19 ms opening; 12...22 ms closing |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness:... |
| Auxiliary contact composition | 1 NO + 1 NC |
| Standards | CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1 |
| Product certifications | UL; CCC; CSA; Marine |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -40…60 °C; 60…70 °C with derating |
Available coil voltage options
| Coil Voltage: 220VAC | LC1D38M7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 220 V AC 50/60 Hz coil |
| Coil Voltage: 110VAC | LC1D38F7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 110 V AC 50/60 Hz coil |
| Coil Voltage: 415VAC | LC1D38N7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 415 V AC 50/60 Hz coil |
| Coil Voltage: 24VAC | LC1D38B7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 24 V AC 50/60 Hz coil |
PDF
LC1D38 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LC1D38
What is the ac-3 rated current of the LC1D38?
38 A, as published by Schneider Electric.
What is the uc control circuit voltage of the LC1D38?
220 V AC 50/60 Hz, as published by Schneider Electric.
What is the poles description of the LC1D38?
3P, as published by Schneider Electric.
Where can I download the LC1D38 datasheet?
You can download the official PDF datasheet here: LC1D38 datasheet (PDF).
Is the LC1D38 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LC1D38 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more
Need help choosing the right model?
Tell us your application and panel size and we will help you pick the correct Schneider model.
Motor starter chart: matching contactor and overload relay by motor kW, with prices →
