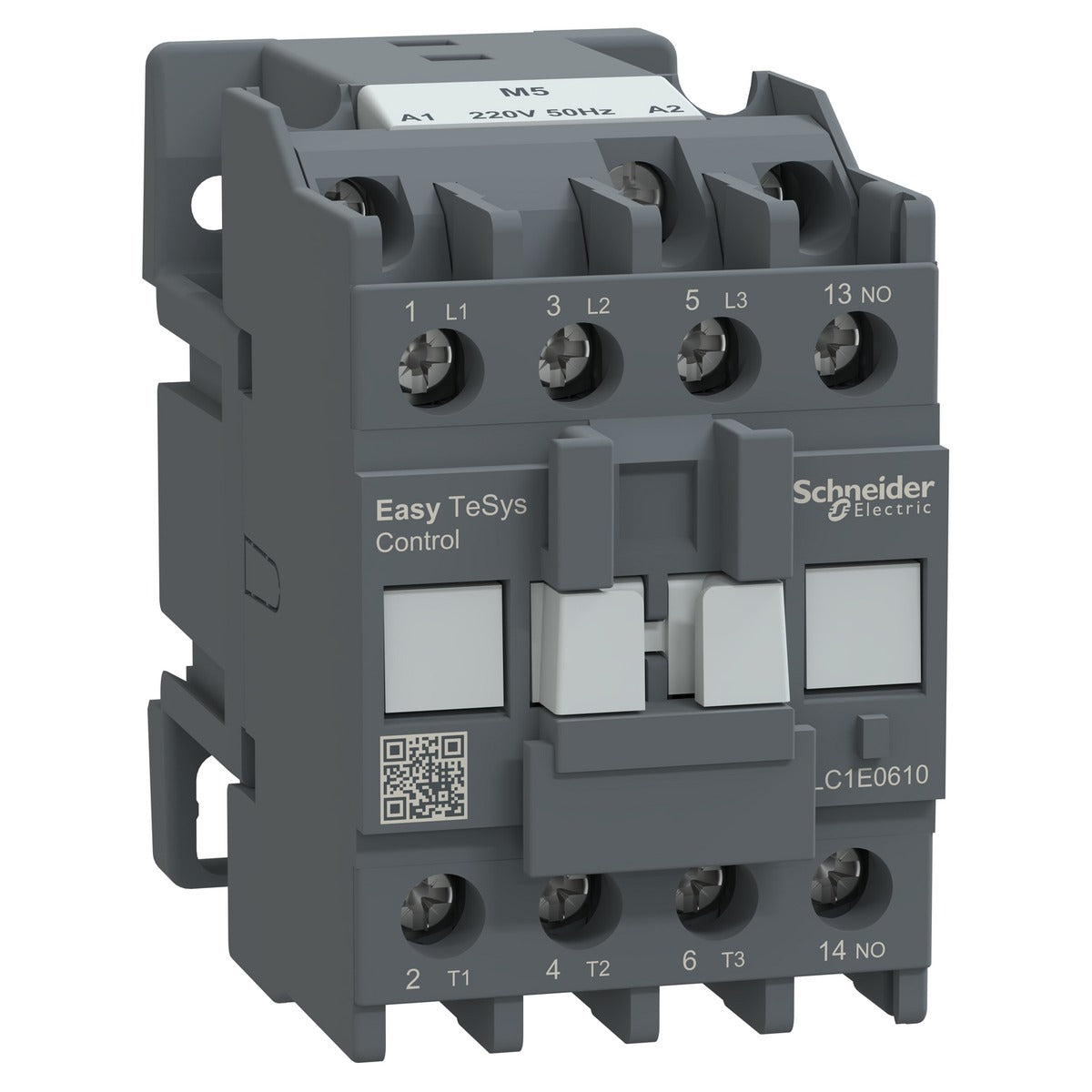

Schneider LC1E0610, 6 Amp Contactor, coil voltage 220V AC

Q: What is the ac-3 rated current of the LC1E0610?

6 A, as published by Schneider Electric.

Q: What is the uc control circuit voltage of the LC1E0610?

220 V AC 50 Hz, as published by Schneider Electric.

Q: What is the poles description of the LC1E0610?

3P, as published by Schneider Electric.

Q: Where can I download the LC1E0610 datasheet?

You can download the official PDF datasheet here: LC1E0610 datasheet (PDF) on this page.

Q: Is the LC1E0610 genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the LC1E0610 in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

₹1,029

~~₹2,345~~ ₹1,029

56% off

Incl. all taxes • Shipping calculated at checkout.

Free delivery on orders above ₹3,000 · Delivery charges

Price excl. GST ₹872.03

GST @ 18% included in above product price

Quantity

4.5/5 · 78 customer reviews GST Invoice PAN India Delivery Fast Dispatch

1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LRE10 Over Load Relay ₹1,650

Schneider LRE08 Over Load Relay ₹1,650

Schneider LRE07 Over Load Relay ₹1,650

Schneider Lc1e series 1no 1nc top mounted block Laen11 ₹450

Schneider Lc1e series 2no 2nc top mounted block Laen22 ₹650

Schneider XB5AA31N Push Button Green, 22mm, Spring Return ₹164

Description

LC1E0610 is a Schneider Electric Easy TeSys (LC1E) contactor. Schneider lists it as: Easy TeSys contactor 3P(3 NO) - AC-3 - <= 440 V 6A - 220 V AC coil.

AC-3 rated current

6 A

Uc control circuit voltage

220 V AC 50 Hz

Poles description

3P

Utilisation category

AC-3

Technical specifications

Make	Schneider Electric
Model	LC1E0610
Range of product	Easy TeSys Control
Product or component type	Contactor
Contactor application	Motor control; Resistive load
Utilisation category	AC-3; AC-3e; AC-1
Poles description	3P
Ue rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
Ie rated operational current	6 A (at <55 °C) at <= 440 V AC AC-3 for power circuit; 6 A (at <55 °C) at <= 440 V AC AC-3e for power circuit; 20 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
Uc control circuit voltage	220 V AC 50 Hz
Motor power kW	1.1 kW at 220/230 V AC 50/60 Hz; 2.2 kW at 380/400 V AC 50/60 Hz
Pole contact composition	3 NO
Ith conventional free air thermal current	20 A (at 55 °C) for power circuit
Rated breaking capacity	51 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole	0.09 W AC-3; 1 W AC-1
Ui rated insulation voltage	690 V conforming to IEC 60947-4-1
Uimp rated impulse withstand voltage	6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	10000000 cycles
Electrical durability	1400000 cycles AC-3; 150000 cycles AC-1
Operating time	12...22 ms on closing; 4...19 ms on opening
Maximum operating rate	1800 cyc/h 60 °C
Connections - terminals	Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness:...
Auxiliary contact composition	1 NO
Mounting support	Plate; DIN rail
Standards	EN/IEC 60947-1; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GB/T 14048.1
Product certifications	CB Scheme; CCC; CE; EAC
IP degree of protection	IP2X conforming to IEC 60529
Permissible ambient air temperature around the device	-20…70 °C at Uc; -60…80 °C storage; -5…55 °C operation
