Mean Well
-

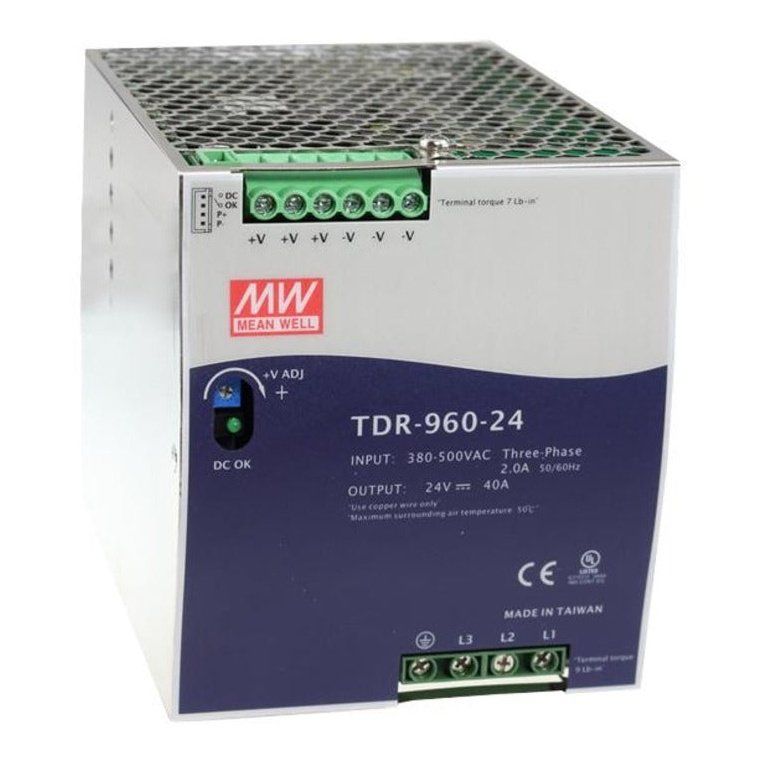

Mean Well TDR-960-24 960 W 3phase input, output-24V DC, 40 Amp Industrial DIN Rail Power Supply
Regular price
₹26,438
Regular price
Sale price
₹26,438
Incl. all taxes • Shipping calculated at checkout.
Need a different current rating? Compare all 24V SMPS models and prices.
Price excl. GST
₹22,405.08
GST @ 18% included in above product price
Authorised Distributor
GST Invoice
PAN India Delivery
Fast Dispatch
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well SDR-960-24 SMPS 24V 40A DIN Rail Power Supply
₹26,438
Mean Well LRS-600-24 SMPS 24V 25A 600W Industrial Metal Power Supply
₹5,497
Mean Well NDR-480-24 SMPS 24V 20A DIN Rail Power Supply
₹9,474
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
TDR-960-24, an SMPS power supply from Mean Well, rated 24 VDC output at 40 AMP, 960W output power.
Output voltage
24 VDC
Output current
40 AMP
Power
960W
Input voltage
Three-Phase 340 to 550V AC (Dual phase operation possible) 480 to 780V DC
Technical specifications
| Make | Mean Well |
| Model | TDR-960-24 |
| Output voltage | 24 VDC |
| Output current | 40 AMP |
| Input voltage | Three-Phase 340 to 550V AC (Dual phase operation possible) 480 to 780V DC |
Notable features
- 960W three phase industrial DIN RAIL with PFC function
- Input voltage range from three-phase 340 to 550VAC (Dual phase operation possible) 480 to 780VDC
- Output voltage is 24V, output rated current is 40A
- Output rated power is 960W, typical efficiency is 94%
- Width only 110mm, high efficiency and low power dissipation
- Cooling by free air convection, current sharing up to 3840W(3+1)
- Built-in DC OK relay contact, 100% full load burn-in test
- UL508, AS/NZS62368.1, EAC TP TC 004, IEC62368-1 CB, design refer to BS EN/EN62368-1
Frequently asked questions about the Mean Well TDR-960-24
What is the output of the Mean Well TDR-960-24?
The TDR-960-24 is rated 24 VDC output, output current 40 AMP, 960W.
What input voltage does the TDR-960-24 accept?
The TDR-960-24 accepts an input of Three-Phase 340 to 550V AC (Dual phase operation possible) 480 to 780V DC, as listed on this page.
Where can I download the TDR-960-24 datasheet?
You can download it from the datasheet section on this page: TDR-960-24 datasheet.
Is the TDR-960-24 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the TDR-960-24 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
Comparing 24V power supplies? See every model from 10 W to 960 W in the 24V SMPS price list.
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
