Trinity Touch TT-IMRB-04024D1S-C-RL, 4 channel relay card, 24vdc
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders of ₹3,001+. Below that, delivery is ₹160 (₹99 to Delhi, UP, Haryana and HP on orders of ₹1,000+), plus a ₹99 small-order fee under ₹1,000.
Also available as a ready-matched relay card + 24 V SMPS kit, added to the cart in one click.
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec UNIX-1-230V, PLC
₹4,490
Selec TWIX-1-230V, PLC
₹4,970
Delta DVP16SP11R PLC Extention 8DI/8DO
₹5,000
Trinity Touch TT-IMRB-08024D1S-C-RL, 8 channel relay card, 24vdc
₹1,030
Schneider RXM2LB2BD Miniature Plug-in Relay 2 C/O, 5A, 24V DC, 8 Pin
₹360
Schneider RXM4LB2BD Miniature Plug-in Relay 4 C/O, 3A, 24V DC, 14 Pin
₹410
Description

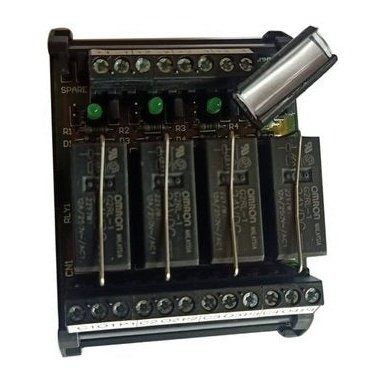

TT-IMRB-04024D1S-C-RL, Trinity Touch 4 channel relay card, 24vdc is a Trinity Touch relay interface card built with Omron relays, used to let a PLC or controller's low-power output switch bigger loads safely, and to isolate control circuits. It mounts on DIN rail inside the control panel.
Key specifications
- Channels: 4
- Coil voltage: 24 V DC
- Contact type: 1 changeover (C/O) per channel
Related: relay cards & auxiliary relays.
Ordering from Voltkart
- GST invoice provided with every order
- Please confirm the model, voltage and rating against your panel before ordering — WhatsApp us on 8800754881 if you want a second opinion
How to wire a relay card
- Connect the 24 V DC supply to the card's power terminals; a 24 V DIN-rail SMPS is the usual source.
- Wire each PLC or controller output to the matching channel input. When the output turns on, that channel's relay energises and its LED lights.
- Connect the load to the changeover contacts: common plus normally open (NO) for a load that should switch on, or normally closed (NC) for one that should switch off.
- Check the load current against the relay contact rating printed on the card; use a contactor for motors and heavy loads.
Need 8 channels instead? See the 8-channel 24 V DC relay card.
