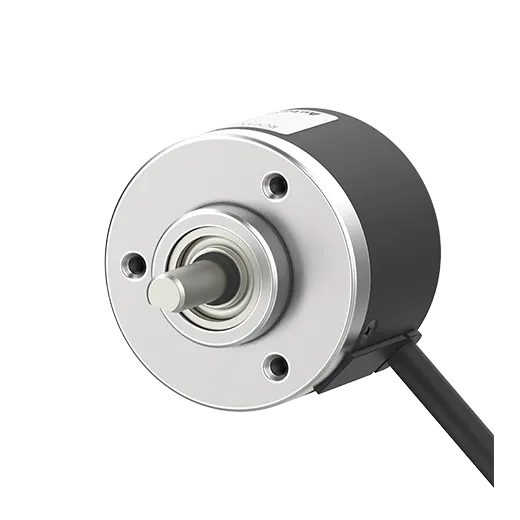

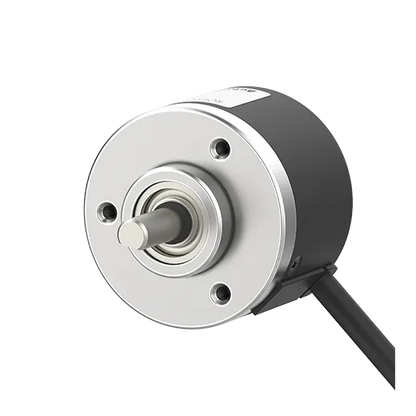

Autonics 2500PPR encoder E40S6-2500-3-T-24, 5 WIRE Totem pole Output

Buy genuine Autonics encoder E40S6-2500-3-T-24

• • Shaft outer diameter : Ø6mm
  • Max. response frequency : 300kHz
  • Max. allowable revolution : 5000rpm
  • Starting torque : Max. 40gf.cm(max. 0.00392N.m)
  • Resolution : 2500P/R
  • Control output : Totem pole
  • Power supply : 12-24VDC  ±5%(ripple P-P: max. 5%)
  • Connection type : Radial cable type
  • Protection structure : IP5


    Data sheet

    Shaft outer diameter	Ø6mm
    Max. response frequency	300kHz
    Max. allowable revolution	5000rpm
    Starting torque	Max. 40gf.cm(max. 0.00392N.m)
    Resolution	2500P/R
    Output phase	A, B, Z
    Control output	Totem pole
    Power supply	12-24VDC  ±5%(ripple P-P: max. 5%)
    Connection type	Radial cable type
    Protection structure	IP50
    Environment_Ambient temperature	-10 to 70℃, storage: -25 to 85℃
    Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
    Accessories	Ø6mm coupling standard, Ø8mm coupling(sold separately)
    Weight	Approx. 120g

    ※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
    [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
    ※The weight includes packaging. The weight in parenthesis is for unit only.
    ※Environment resistance is rated at no freezing or condensation.
