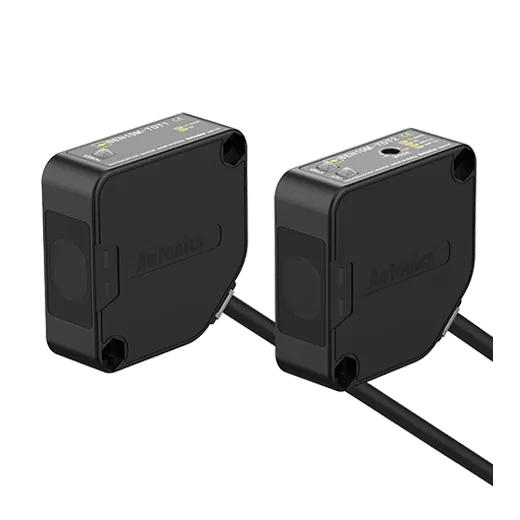

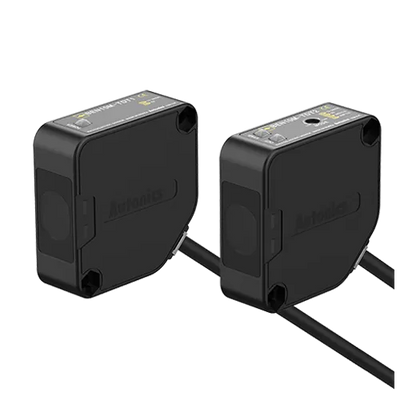

Autonics BEN10M-TDT Photo sensor Through Beam (Set of Transmitter and receiver)
Regular price
Rs. 3,110.00
Regular price
Rs. 4,500.00
Sale price
Rs. 3,110.00
Incl. all taxes • Shipping calculated at checkout.
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
Price excl. GST
Rs. 16,368.42
GST @ 18% included in above product price
🚚 Delivered within 5 to 7 Days
Description
- Sensing type : Through-beam type
- Sensing distance : 10m
- Sensing target : Opaque material of min. Ø16mm
- Light source : Infrared LED(850nm)
- Response time : Max. 1ms
- Power supply : 12-24VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by switch)
- Control output : NPN, PNP open collector simultaneous output
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 10m |
| Sensing target | Opaque material of min. Ø16mm |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 50mA |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 342g |
