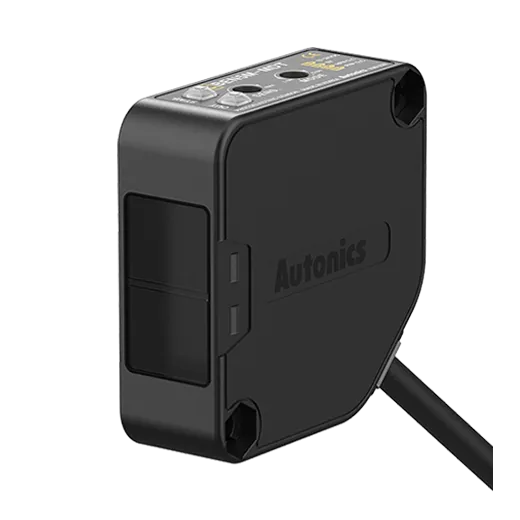

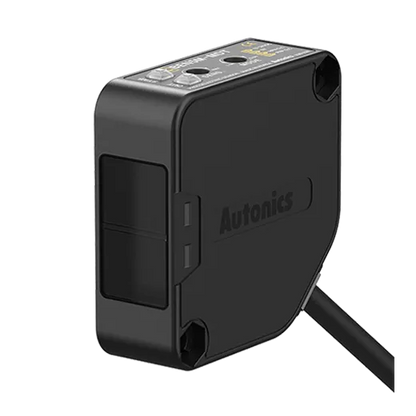

Autonics BEN5M-MDT Photo sensor Retro Reflective (comes with reflector)
Incl. all taxes • Shipping calculated at checkout.
🚚 Delivered within 5 to 7 Days
Description
- Sensing type : Retroreflective type(standard type)
- Sensing distance : 5m(MS-2)
- Sensing target : Opaque material of min. Ø60mm
- Light source : Infrared LED(940nm)
- Response time : Max. 1ms
- Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
- Operation mode : Light ON/Dark ON(set by switch)
- Control output : NPN, PNP open collector simultaneous output
| Sensing type | Retroreflective type(standard type) |
|---|---|
| Sensing distance | 5m(MS-2) |
| Sensing target | Opaque material of min. Ø60mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories_Individual | Reflector(MS-2) |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 200g |
Specifications (existing/cleaned up)
- Model: Autonics BEN5M-MDT
- Sensing Type: Retro-reflective (uses reflector, not target object reflectivity)
- Sensing Distance: Up to 5m (with supplied reflector)
- Output Type: open collector simultaneous output
- Supply Voltage: 12–24V DC ±10%
- Light Source: Red LED / Infrared LED (model-dependent)
- Housing: Rectangular, robust plastic/metal body
- Protection Rating: IP65/IP67 (model-dependent)
- Included Accessory: Reflector supplied with unit
What is this product?
The Autonics BEN5M-MDT is a retro-reflective photoelectric sensor that detects objects by sensing the interruption of a light beam bounced back from a dedicated reflector. It's used to detect presence, position, or passage of objects on production lines without needing a separate receiver unit.
Where is it used?
- Conveyor belt systems for object/box detection on packaging lines
- Automated material handling for pallet or bin presence detection
- Elevator door and gate control systems for obstruction detection
- Bottling and filling machines for container presence sensing
- Automated gates and shutters for safety interlocking
Key technical advantages
The BEN5M-MDT stands out for its retro-reflective design, which simplifies installation compared to through-beam sensors since only one side of the line needs wiring — the reflector on the opposite side needs no power or cabling at all, cutting installation time and cost. Its 5-meter sensing range with the supplied reflector gives flexibility for wider conveyor lines or larger gaps than typical diffuse sensors can handle. Autonics builds this sensor with a robust housing rated for industrial dust and moisture exposure, making it reliable in real factory-floor conditions rather than just clean lab environments. The dark-on/light-on selectable output also lets you configure the sensor's logic to match your existing PLC or control panel wiring without needing extra relay logic.
Why buy from Voltkart?
Voltkart is an authorized dealer for Autonics, so the BEN5M-MDT you receive is 100% genuine with full manufacturer warranty — not a clone or grey-market unit. Every order comes with a proper GST invoice, PAN India delivery with fast dispatch from our Delhi (Bhagirath Palace) warehouse, and direct WhatsApp support (+91 98996 68881 / 8800754881) for wiring help, output type open collector simultaneous output, or bulk order pricing.
FAQs

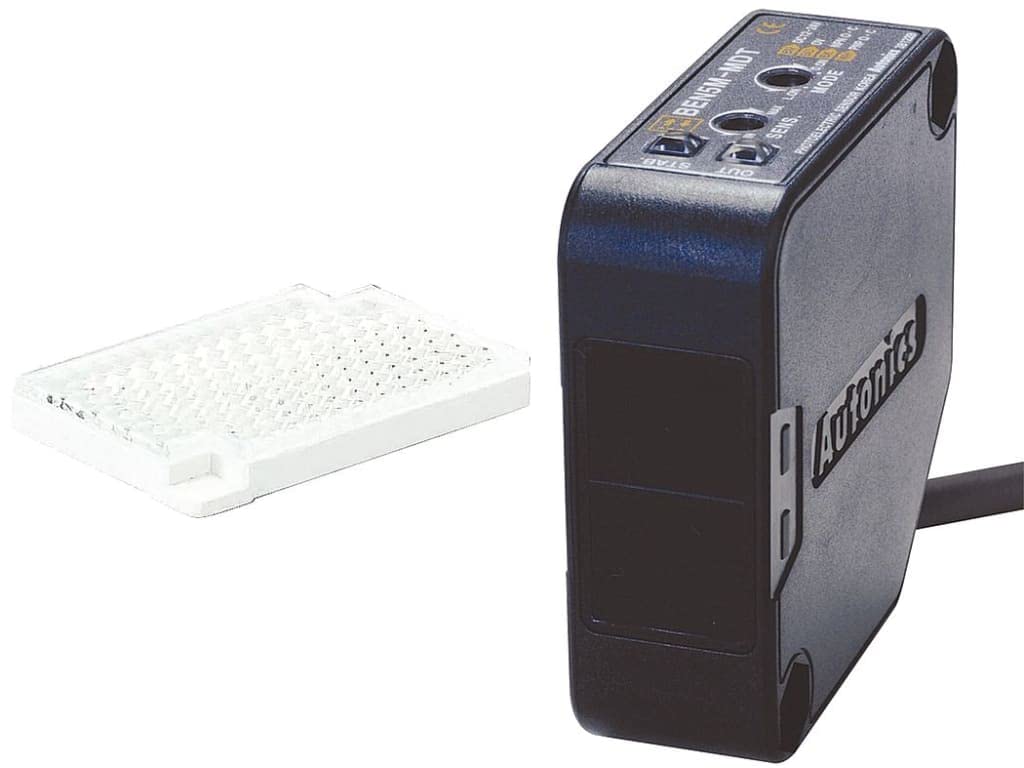

Q: Does the BEN5M-MDT come with the reflector included, or do I need to buy it separately?
A: The BEN5M-MDT is supplied with its matching reflector as part of the package, so you don't need to source it separately — just mount the reflector directly opposite the sensor within the rated 5m sensing distance.
Q: Can the BEN5M-MDT detect transparent or shiny objects like clear bottles or glass?
A: Retro-reflective sensors can struggle with highly transparent or glossy objects since the beam may pass through or reflect unpredictably — for transparent object detection, we'd recommend checking with us about a polarized retro-reflective variant which handles glare and transparency better.
Q: Is the output NPN or PNP on the BEN5M-MDT?
A:open collector simultaneous output
