Autonics
-

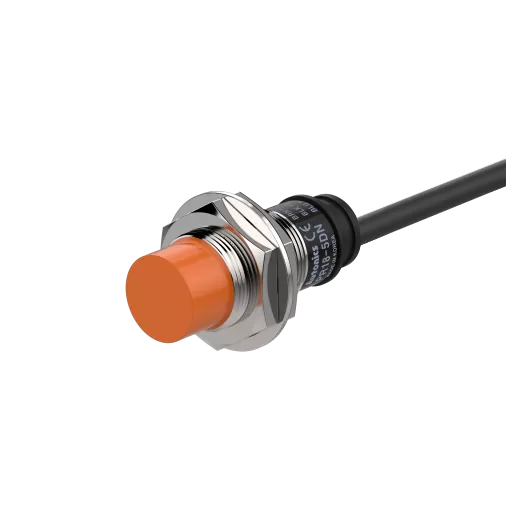

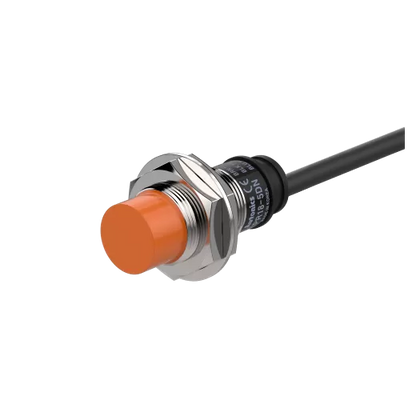

Autonics PR18-8DP2 18mm proximity sensor PNP NC
Regular price
₹1,311
Regular price
₹1,970
Sale price
₹1,311
Incl. all taxes • Shipping calculated at checkout.
Delivery ₹160 (₹99 to Delhi, UP, Haryana and HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,111.02
GST @ 18% included in above product price
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider RXM2LB2BD Miniature Plug-in Relay 2 C/O, 5A, 24V DC, 8 Pin
₹360
Schneider RXM4LB2BD Miniature Plug-in Relay 4 C/O, 3A, 24V DC, 14 Pin
₹410
Schneider RXM2AB2BD Miniature Plug-in Relay 2 C/O, 12A, 24V DC, 8 Pin
₹530
Description
PR18-8DP2 is an Autonics inductive proximity sensor -- inductive proximity sensing for metal object detection -- checked against Autonics’ own official product data.
Same 18 mm, other outputs: PR18-8DP (PNP NO) · PR18-5DP (PNP NO) · PR18-8DN (NPN NO) · PR18-8DN2 (NPN NC) · PR18-8AO (AC NO)
PNP NC in other sizes: PR12-4DP2 (12 mm)
Sensing distance
8mm
Detection
Non-flush/unshielded mounting
Output
PNP, Normally Closed (N.C.)
Supply voltage
12-24V DC ±10% (3-wire)
Technical specifications
| Make | Autonics |
| Model | PR18-8DP2 |
| Sensing distance | 8mm |
| Detection | Non-flush/unshielded mounting |
| Output | PNP, Normally Closed (N.C.) |
| Supply voltage | 12-24V DC ±10% (3-wire) |
| Protection | IP67 |
| Housing | Cylindrical M18, metal body |
ATX
PR18-8DP2 on Autonics’ official site
Look up the full datasheet directly from autonics.com
Frequently asked questions about the Autonics PR18-8DP2
What is the sensing distance of the PR18-8DP2?
8mm, per Autonics’ own product data.
What is the detection of the PR18-8DP2?
Non-flush/unshielded mounting, per Autonics’ own product data.
What is the output of the PR18-8DP2?
PNP, Normally Closed (N.C.), per Autonics’ own product data.
What is the supply voltage of the PR18-8DP2?
12-24V DC ±10% (3-wire), per Autonics’ own product data.
Where can I check the PR18-8DP2 specifications?
You can look it up directly on Autonics’ official site: PR18-8DP2 on autonics.com.
Is the PR18-8DP2 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Autonics products, and every order comes with a GST invoice.
Can I order the PR18-8DP2 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
