Autonics
-

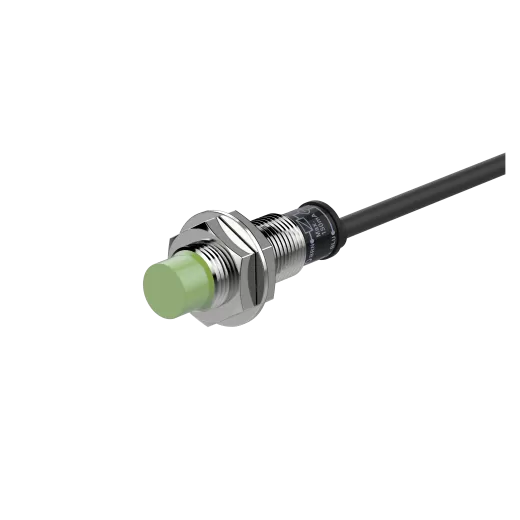

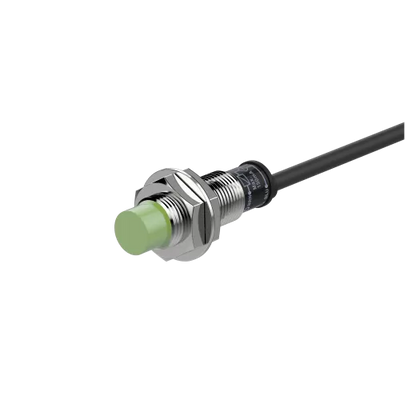

Autonics 12mm proximity sensor NPN NC PR12-4DN2
Regular price
₹1,063
Regular price
₹1,570
Sale price
₹1,063
Incl. GST
Delivery ₹160 (₹99 to Delhi, UP, Haryana and HP) · 2–3 days to Delhi NCR, UP and Haryana, 5–6 days elsewhere · free on orders of ₹3,001+ · Details
Price excl. GST
₹900.85
GST @ 18% included in above product price
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider RXM2LB2BD Miniature Plug-in Relay 2 C/O, 5A, 24V DC, 8 Pin
₹360
Schneider RXM4LB2BD Miniature Plug-in Relay 4 C/O, 3A, 24V DC, 14 Pin
₹410
Schneider RXM2AB2BD Miniature Plug-in Relay 2 C/O, 12A, 24V DC, 8 Pin
₹530
Description
PR12-4DN2 is an Autonics inductive proximity sensor -- inductive proximity sensing for metal object detection -- checked against Autonics’ own official product data.
Same 12 mm, other outputs: PR12-4DN (NPN NO) · PR12-2DN (NPN NO) · PR12-4DP (PNP NO) · PR12-4DP2 (PNP NC) · PR12-4AO (AC NO)
NPN NC in other sizes: PR18-8DN2 (18 mm)
Sensing distance
4mm
Detection
Non-flush/unshielded mounting
Output
NPN, Normally Closed (N.C.)
Supply voltage
12-24V DC ±10% (3-wire)
Technical specifications
| Make | Autonics |
| Model | PR12-4DN2 |
| Sensing distance | 4mm |
| Detection | Non-flush/unshielded mounting |
| Output | NPN, Normally Closed (N.C.) |
| Supply voltage | 12-24V DC ±10% (3-wire) |
| Protection | IP67 |
| Housing | Cylindrical M12, metal body |
ATX
PR12-4DN2 on Autonics’ official site
Look up the full datasheet directly from autonics.com
Frequently asked questions about the Autonics PR12-4DN2
What is the sensing distance of the PR12-4DN2?
4mm, per Autonics’ own product data.
What is the detection of the PR12-4DN2?
Non-flush/unshielded mounting, per Autonics’ own product data.
What is the output of the PR12-4DN2?
NPN, Normally Closed (N.C.), per Autonics’ own product data.
What is the supply voltage of the PR12-4DN2?
12-24V DC ±10% (3-wire), per Autonics’ own product data.
Where can I check the PR12-4DN2 specifications?
You can look it up directly on Autonics’ official site: PR12-4DN2 on autonics.com.
Is the PR12-4DN2 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Autonics products, and every order comes with a GST invoice.
Can I order the PR12-4DN2 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
