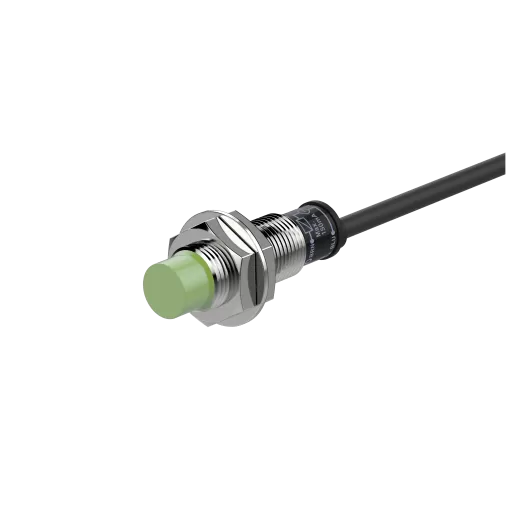

Autonics 12mm proximity sensors AC NO PR12-4AO
Autonics 12mm proximity sensors AC NO PR12-4AO
Regular price
Rs. 1,662.00
Regular price
Rs. 2,400.00
Sale price
Rs. 1,662.00
Price (Exclusive of GST): Rs. 1,408.47
Unit price perTaxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Sensing side diameter : M12
- Sensing distance : 4mm
- Installation : Non-flush
- Standard sensing target : 12×12×1mm(iron)
- Response frequency : 20Hz
| Wire type and power | AC 2-wire type 100-240VAC~ |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Installation | Non-flush |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 20Hz |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67(IEC standard) |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 10V |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 1kV) |
| Weight | Approx. 84g(approx. 66g) |
