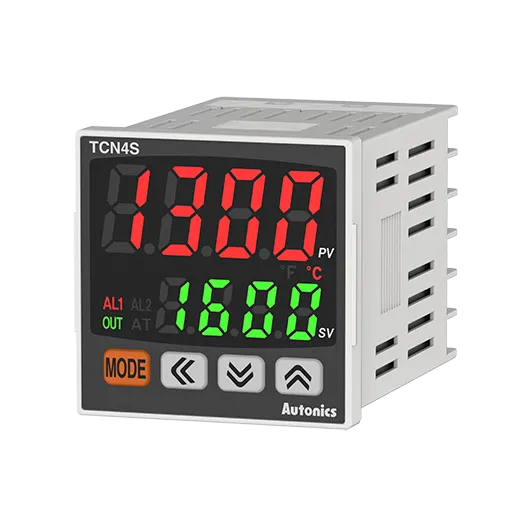

Autonics temperature controller TCN4S-24R

Name: Autonics temperature controller TCN4S-24R
Brand: Autonics
Price: 1963.00 INR
Availability: InStock

Rs. 1,963.00

~~Rs. 2,700.00~~ Rs. 1,963.00 27% OFF

Excl. GST: Rs. 1,663.56

27% OFF

Taxes included. Shipping calculated at checkout.

🚚 Delivered within 5 to 7 Days

Quantity

Need bulk pricing or large quantity?

Reach out to our sales team on WhatsApp for exclusive deals and assistance.

Display method : 4-digit 7-segment LED
Control method : ON/OFF, P, PI, PD, PID
Input specification : Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
RTD: DPt100Ω, Cu50Ω
Sampling cycle : 100ms
Control output : Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Power supply : 100-240VAC~ 50/60Hz

Display method	4-digit 7-segment LED
Control method	ON/OFF, P, PI, PD, PID
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
Sampling cycle	100ms
Control output	Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Option output	Alarm 1/2
Power supply	100-240VAC~ 50/60Hz
Display accuracy_RTD	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)	1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band	0.1 to 999.9℃/℉
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight	Approx. 147g(approx. 100g)
