Brisk

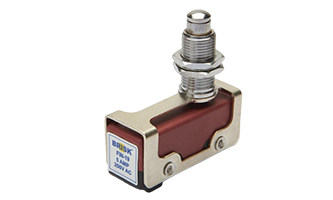

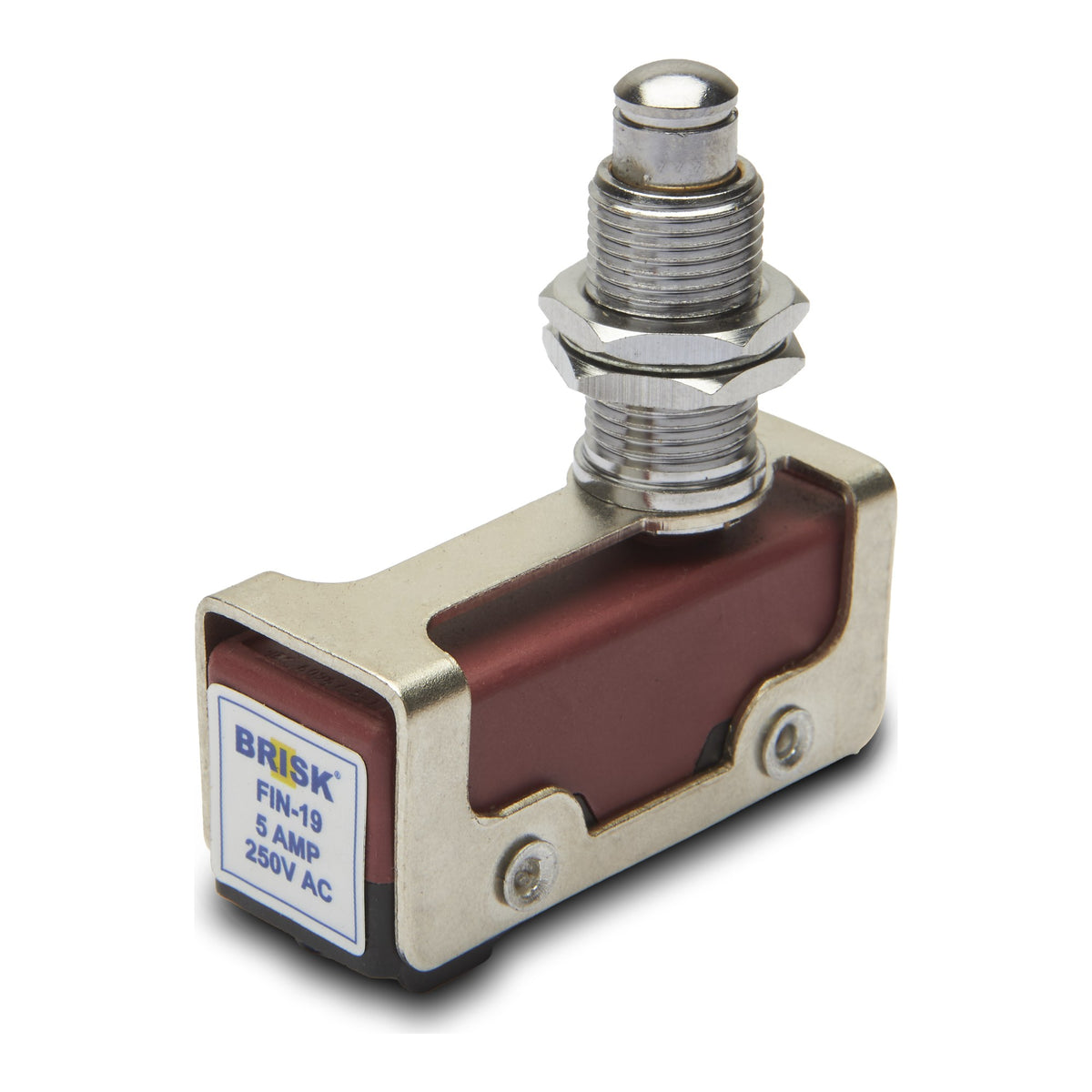

Brisk FIN-19 Standard Micro Switch with Panel Mount Plunger (Auxiliary)
Regular price
₹319.07
Regular price
₹416
Sale price
₹319.07
Incl. all taxes • Shipping calculated at checkout.
Minimum order is ₹1,001. Buy 4 of this item, or add other items to reach it.
Price excl. GST
₹270.40
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
I-Tech Limit Switch CZ7311
₹431
Limit Switch CZ7310
₹431
Brisk BFS-17/C2.2 Mini Foot Switch with wire
₹560.68
Brisk BFS-22/X Heavy Duty Foot Switch
₹2,448.26
I-Tech Micro Switch IT-03 (replacement for z15gw22b cm1704)
₹195
I-Tech Micro Switch IT-10(replacement for z15gqb & cm1307)
₹239
Description
FIN-19, Brisk Standard Micro Switch with Panel Mount Plunger (Auxiliary) – a FIN-series micro switch: a single-pole changeover (1 NO + 1 NC) snap-action switch rated 5A at 250V AC, with silver contacts and a beryllium copper spring for repeatable switching. Made by Brisk Industries Pvt Ltd, India.
Download the FIN-19 datasheet (PDF) | Supplied by Voltkart, authorised distributor of Brisk, with GST invoice. Browse more micro switches or all Brisk products.
Rating
5A at 250V AC
Contacts
SPDT (1 NO + 1 NC)
Actuator
Panel mount plunger
Mechanical life
1 million operations
Technical specifications
| Make | Brisk (Brisk Industries Pvt Ltd, India) |
| Model | FIN-19 |
| Rating | 5A at 250V AC |
| Contacts | SPDT (1 NO + 1 NC), single-pole changeover snap action |
| Actuator | Panel mount plunger |
| Operating force | 500 gms |
| Contact material | Silver |
| Spring | Beryllium copper |
| Terminals | Brass |
| Contact resistance | 10 mΩ |
| Insulation resistance | 100 MΩ |
| High voltage test | 1 kV AC between open contacts |
| Electrical life | 1 lakh operations |
| Mechanical life | 1 million operations |
| Standard | Complies with IEC 60947-5-1 |
PDF
Brisk FIN-19 datasheet
Official Brisk datasheet with dimensions, wiring and full specifications. PDF, 657 KB
Typical applications
- Position and end-of-travel sensing on machines and conveyors
- Door, guard and cover interlocks on machinery and control panels
- Packaging, printing and material-handling equipment
- OEM machine building and panel retrofits
Frequently asked questions about the Brisk FIN-19
What is the rating of the Brisk FIN-19?
The FIN-19 is rated 5A at 250V AC. Contacts: SPDT (1 NO + 1 NC), single-pole changeover snap action. Brisk states that it complies with IEC 60947-5-1.
What contact configuration does the FIN-19 have?
The FIN-19 has SPDT (1 NO + 1 NC) contacts. It has one changeover (SPDT) contact set: a common terminal with one normally open (NO) and one normally closed (NC) contact, so you can wire it as NO or NC.
Where is the Brisk FIN-19 used?
The FIN-19 is a Brisk micro switch with a panel mount plunger actuator. Typical uses: position and end-of-travel sensing on machines and conveyors; door, guard and cover interlocks on machinery and control panels; packaging, printing and material-handling equipment.
What is the difference between the FIN-19 and the T-19?
Both are Brisk micro switches. Comparing the datasheets: the FIN-19 is rated 5A at 250V AC while the T-19 is rated 15A at 250V AC. You can see the T-19 here: Brisk T-19 Standard Micro Switch with Panel Mount Plunger (Auxiliary). If you are unsure which one suits your machine, message us on WhatsApp 8800754881.
What is the operating life of the FIN-19?
The Brisk datasheet lists a mechanical life of 1 million operations and an electrical life of 1 lakh operations.
How much force does the FIN-19 need to operate?
The Brisk datasheet lists an operating force of 500 gms.
Where can I download the FIN-19 datasheet?
You can download the official Brisk FIN-19 datasheet (PDF, 657 KB) from the datasheet section on this page: FIN-19 datasheet. It has the dimensions, wiring and full specifications.
Is the FIN-19 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised distributor of Brisk, so you receive genuine Brisk products, and every order comes with a GST invoice.
Can I order the FIN-19 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Brisk products
- Brisk T-19 Standard Micro Switch with Panel Mount Plunger (Auxiliary) - 15A at 250V AC, panel mount plunger
- Brisk FIN-10 Standard Micro Switch with Panel Mount Plunger - 5A at 250V AC, panel mount plunger
- Brisk T-10 Standard Micro Switch with Panel Mount Plunger - 15A at 250V AC, panel mount plunger
- Brisk FIN-18 Standard Micro Switch with Panel Mount Roller Plunger (Auxiliary) - 5A at 250V AC, panel mount roller plunger
Need help choosing the right model?
Voltkart is an authorised distributor of Brisk. Share your machine details and we will help you pick the correct switch. Manufacturer website: brisk.co.in.
