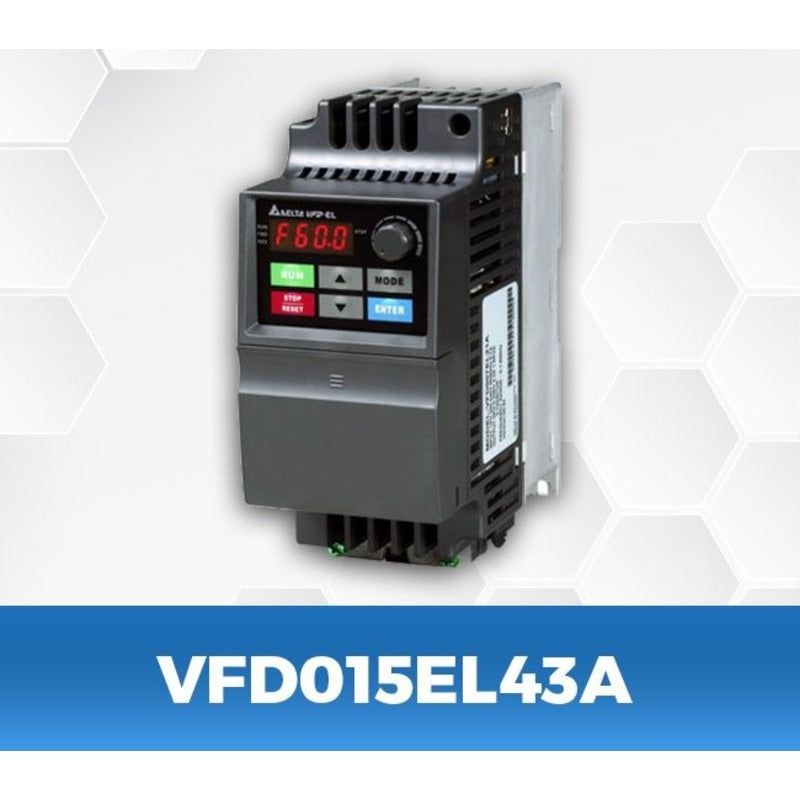

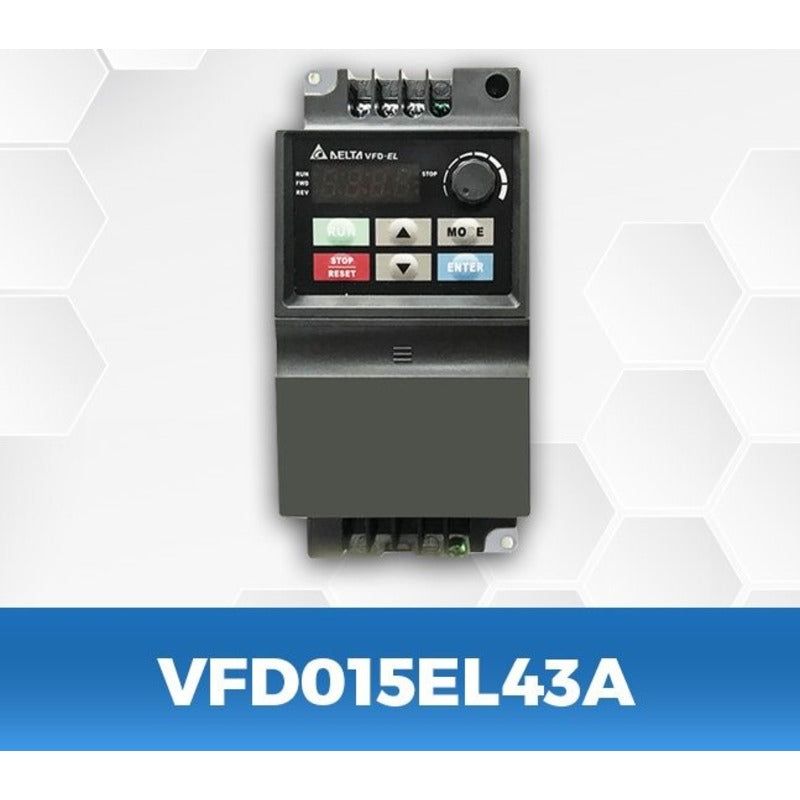

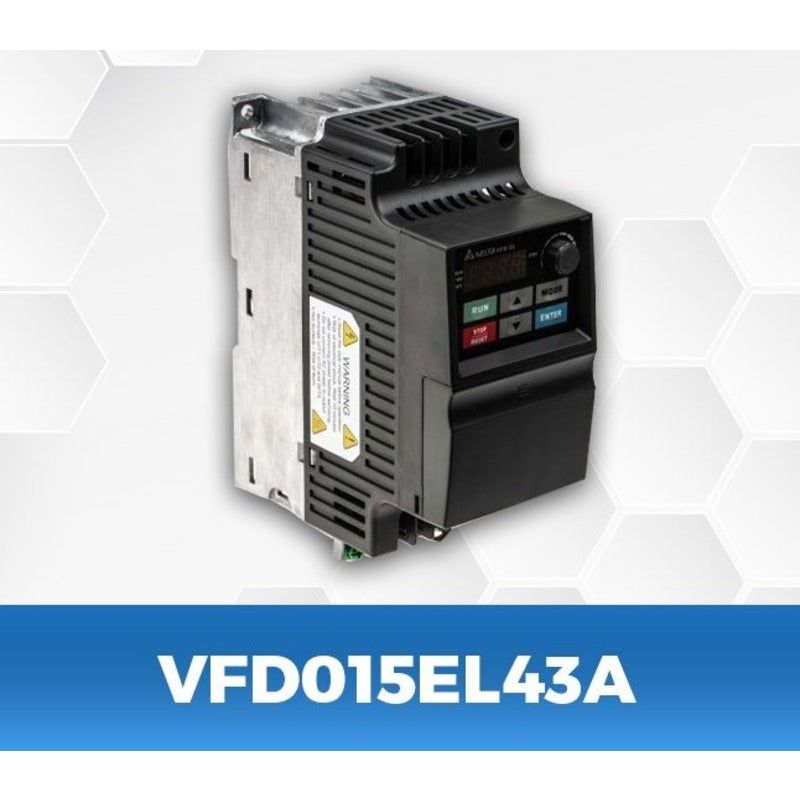

DELTA VFD015EL43A 2Hp/1.5Kw three phase to three phase Ac Drive

1.5KW / 2HP, Inbuilt EMC filter, Non detachable display unit

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

Delta VFD015EL43A – Multiple Functions – Micro Type Drives

Delta Products
AC Drives, VFD-EL Series

ITEM # VFD015EL43A
MFG # VFD015EL43A
Series VFD-EL

Drive, AC, 2Hp, 230V 3-Phase Input/ 3-Phase Output

Specifications
Item Number: VFD015EL43A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 2 Horsepower
Amps (CT): 4.2 Amps
Input Phase: 3
Operator Controls: Built In
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20
Frame Size: A
Height: 6.86 Inches
Width: 2.83 Inches
Depth: 5.36 Inches
