The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

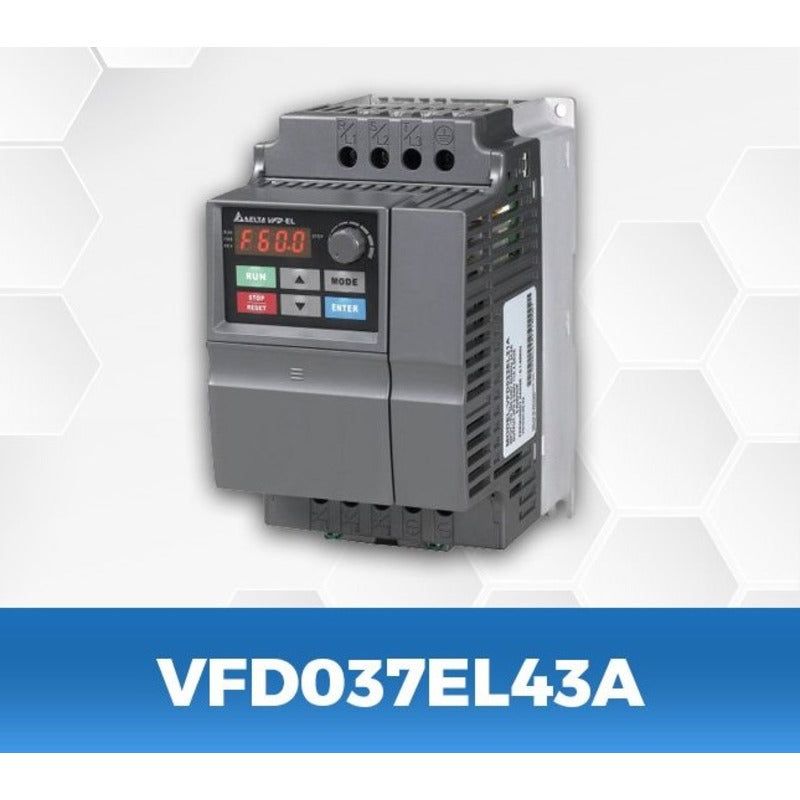

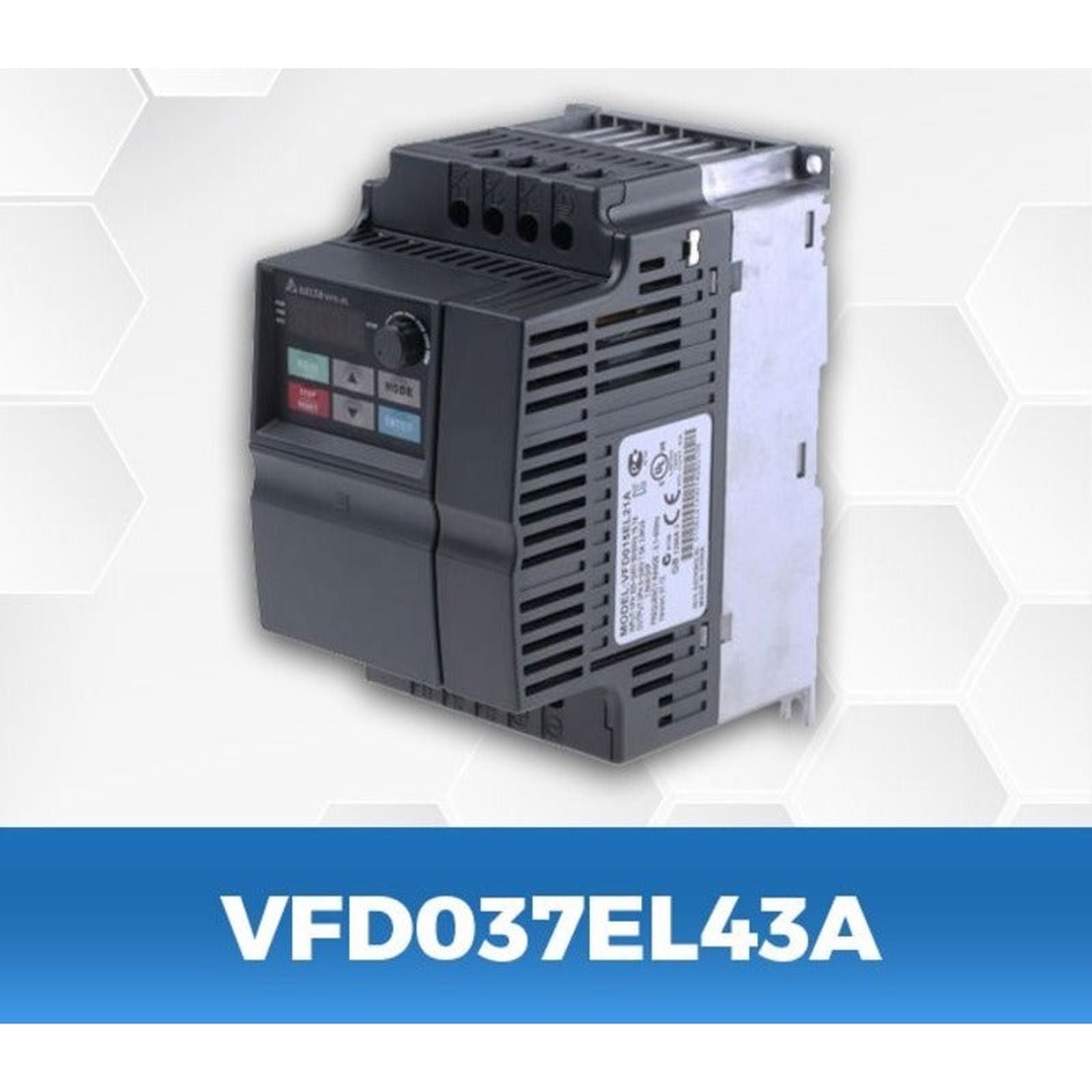

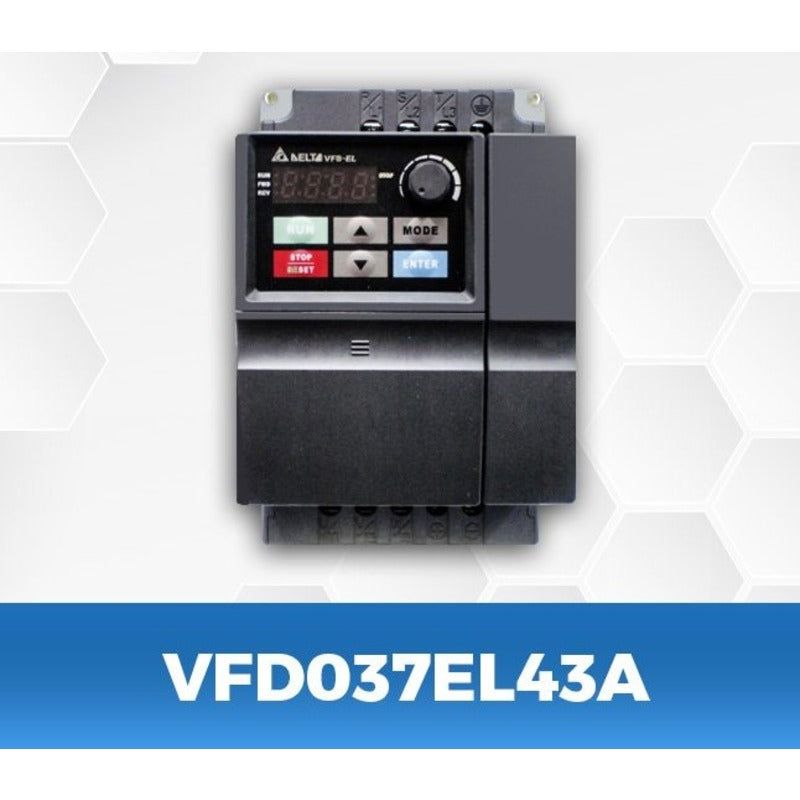

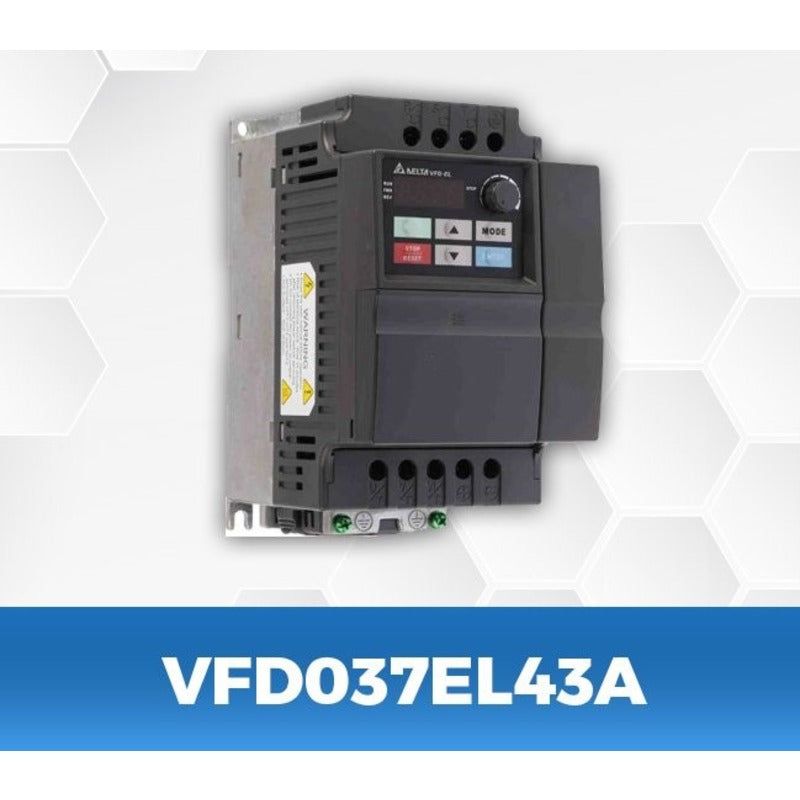

Delta VFD037EL43A – Multiple Functions – Micro Type Drives
Delta Products
AC Drives, VFD-EL Series
ITEM # VFD037EL43A
MFG # VFD037EL43A
Series VFD-EL
Drive, AC, 5HP, 460V 3-Phase Input/ 3-Phase Output
Specifications
Item Number: VFD037EL43A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 5 Horsepower
Amps (CT): 8.2 Amps
Input Phase: 3
Operator Controls: Built In
Max. Frequency: 600 Hertz
Braking Type: DC Injection; Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20
Frame Size: B
Height: 6.85 Inches
Width: 3.94 Inches
Depth: 5.35 Inches
