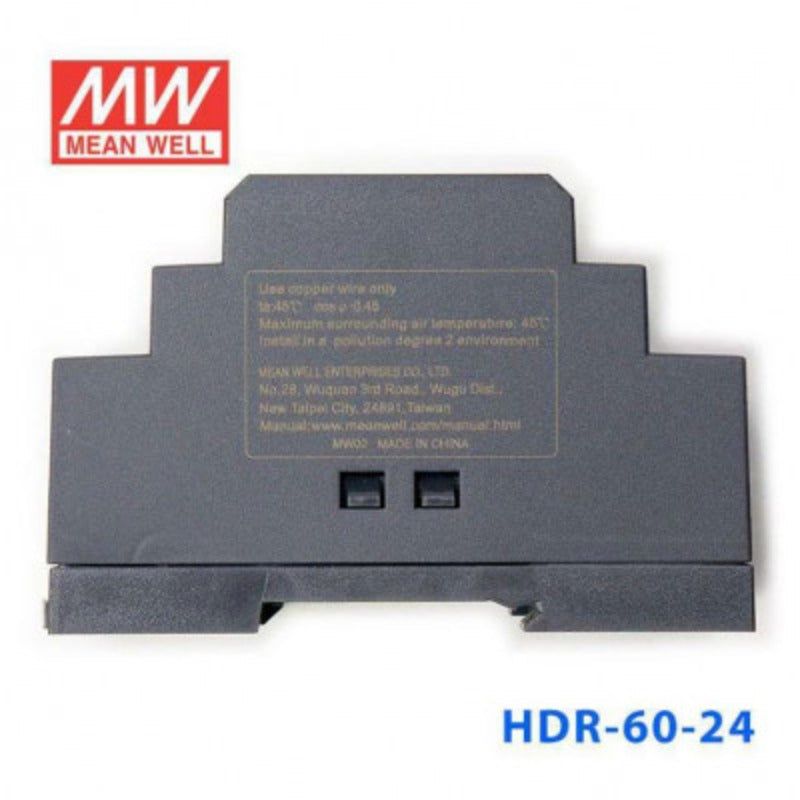

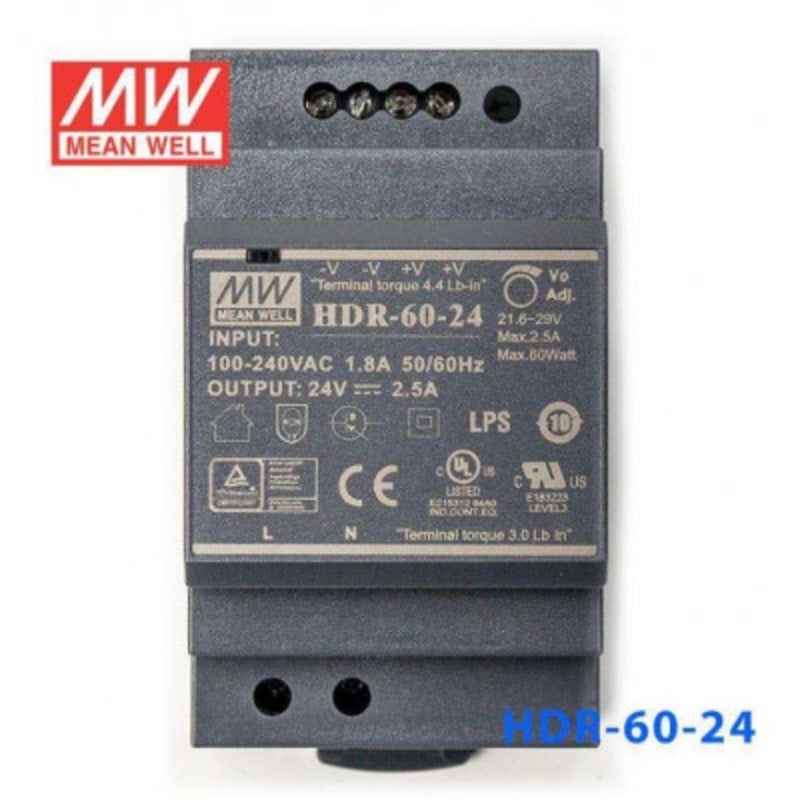

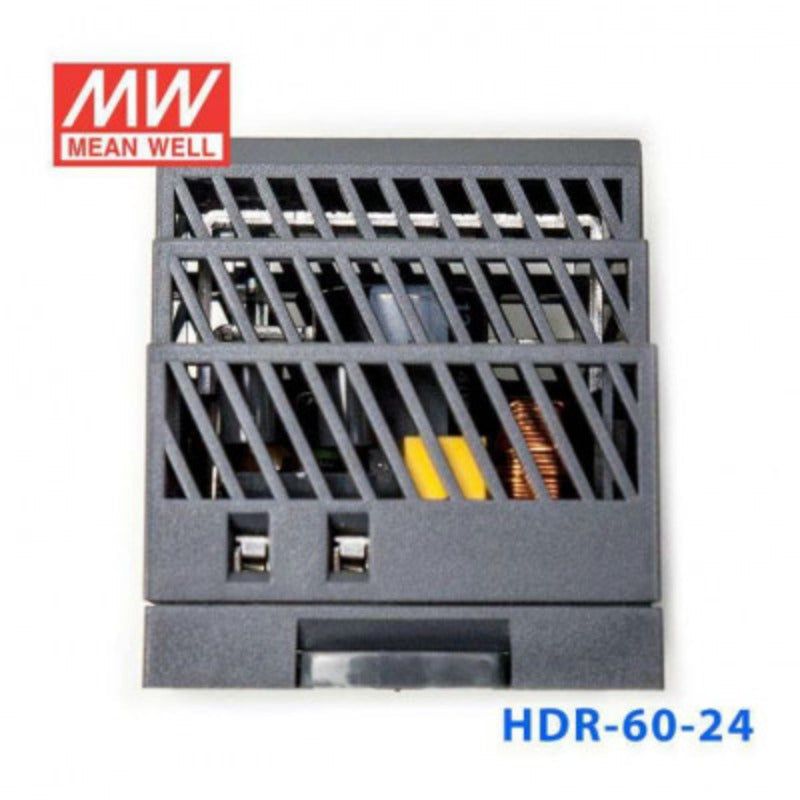

Mean Well HDR-60-24, 2.5 Amp 24V DC DIN mounted Power Supply
Regular price
₹1,814
Regular price
Sale price
₹1,814
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Need a different current rating? Compare all 24V SMPS models and prices.
Price excl. GST
₹1,537.29
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec RPS60-24, Power Supply 24V DC, 2.5 Amp
₹1,342
Mean Well MDR-60-24 SMPS 24V 2.5A Compact DIN Rail Power Supply
₹1,922
Mean Well LRS-50-24 SMPS - 24V 2.2A - 52.8W Metal Power Supply
₹788
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description

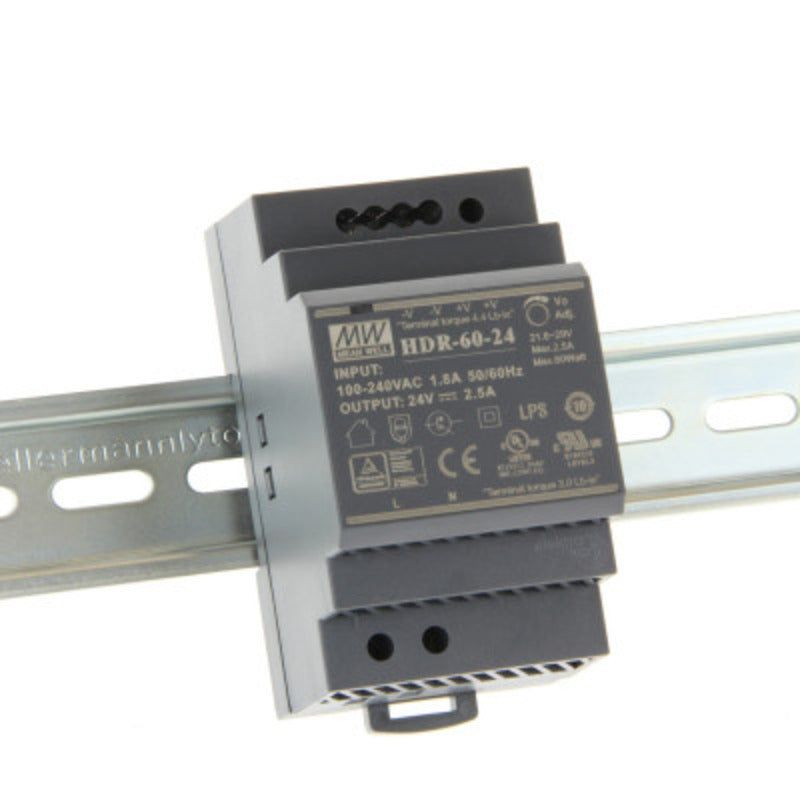

HDR-60-24, a din rail mounted from Mean Well, rated 24 VDC output at 2.5 AMP, 60W output power.
Output voltage
24 VDC
Output current
2.5 AMP
Power
60W
Input voltage
85 to 264V AC (277V AC operational ) 120 to 370V DC (390V DC operational )
Technical specifications
| Make | Mean Well |
| Model | HDR-60-24 |
| Output voltage | 24 VDC |
| Output current | 2.5 AMP |
| Input voltage | 85 to 264V AC (277V AC operational ) 120 to 370V DC (390V DC operational ) |
| AC inrush current (max.) | COLD START 30A/115VAC 60A/230VAC |
| TEMP. COEFFICIENT | 0.03%/ (0 ~ 50) RH non-condensing |
| Overload protection Range | 105 ~ 160% rated output power |
| Over voltage protection Range | 30 ~ 36V |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC |
| Working temperature | 30 ~ +70 (Refer to "Derating Curve") |
| EMC standards | EN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3 |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load |
| Dimension (LxWxH) | 52.5x90x54.5 |
| Type | DIN Rail Type |
| Features | Standard,Voltage Adjustable |
| Series | HDR (Ultra Slim) |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
Notable features
- Overload protection Type: Constant current limiting, recovers automatically after fault condition is removed
- Safety standards: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
- Plastic case, step shape
- 1, full range input
- Compact size, 1SU~3SU width (DIN EN43880)
- Isolation class II
- DC output voltage adjustable
- No load power consumption <0.3W
Frequently asked questions about the Mean Well HDR-60-24
What is the output of the Mean Well HDR-60-24?
The HDR-60-24 is rated 24 VDC output, output current 2.5 AMP, 60W.
What input voltage does the HDR-60-24 accept?
The HDR-60-24 accepts an input of 85 to 264V AC (277V AC operational ) 120 to 370V DC (390V DC operational ), as listed on this page.
What is the IP rating of the HDR-60-24?
The HDR-60-24 is listed as Non-Waterproof.
Where can I download the HDR-60-24 datasheet?
You can download it from the datasheet section on this page: HDR-60-24 datasheet.
Is the HDR-60-24 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the HDR-60-24 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
