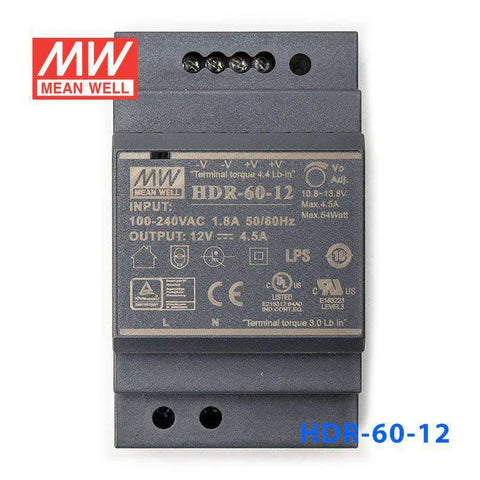

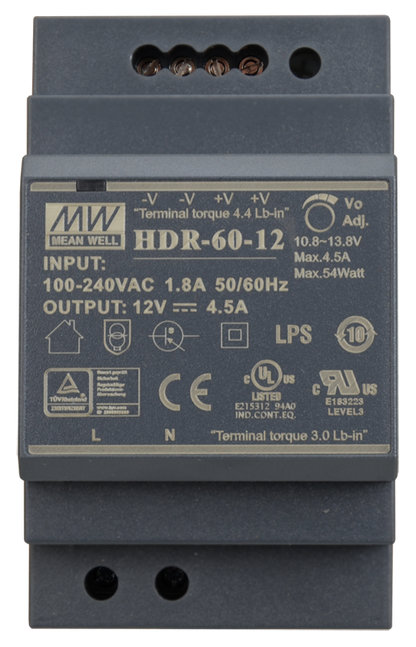

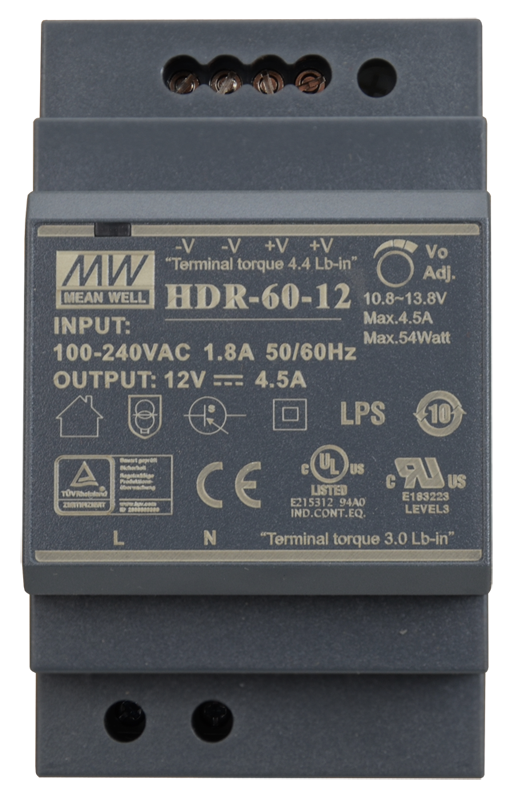

Mean Well HDR-60-12 12V 4.5A 54W DIN Rail SMPS Power Supply
Incl. all taxes • Shipping calculated at checkout.
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
Rs. 1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
Rs. 7,550
EAPL B1DCA-X Cyclic Timer
Rs. 1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
Rs. 605
Description
HDR-60-12, a din rail mounted from Mean Well, rated 12 VDC output at 4.5A, 54W (12 VDC × 4.5A).
Technical specifications
| Make | Mean Well |
| Model | HDR-60-12 |
| Output voltage | 12 VDC |
| Output current | 4.5A |
| Input voltage | 85 to 264V AC (277V AC operational ) 120 to 370V DC (390V DC operational ) |
| Product Category | DIN Rail Power Supplies |
| Input Type | 1-Phase / Single Phase |
| Number of Outputs | 1 Output |
| Output Voltage-Channel 1 | 12 VDC |
| Output Current-Channel 1 | 4.5 A |
| Industry | Industrial |
| Length | 54.5 mm (2.146 in) |
| Width | 52.5 mm (2.067 in) |
| Height | 90 mm (3.543 in) |
| Isolation Voltage | 3 kVrms |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 30 C |
| Mounting Style | DIN Rail Mount |
| Open Frame/Enclosed | Enclosed |
| Subcategory | AC-DC Power Supply |
| Part # Aliases | LI60-20B12PR2 |
| Unit Weight | 190 g |
Notable features
- HDR-60-12 Datasheet
More about the HDR-60-12
The Mean Well HDR-60-12 is a compact and energy-efficient 60W DIN Rail Power Supply designed for industrial automation, building automation, control panels, and electrical distribution systems. With a slim step-shape design and reliable 12V DC output, the HDR-60-12 is ideal for installations where panel space is limited. Built by Mean Well, one of the world's leading manufacturers of industrial power supplies, this unit delivers stable performance, high efficiency, and long-term reliability in demanding environments.
The HDR Series is widely used to power PLC systems , industrial sensors, timers , temperature controllers , protection relays, AC drives, communication equipment, and other automation devices. Its DIN rail mounting design enables quick installation and easy integration into electrical control panels.
Frequently asked questions about the Mean Well HDR-60-12
What is the output of the Mean Well HDR-60-12?
What input voltage does the HDR-60-12 accept?
What is the operating temperature range of the HDR-60-12?
How is the HDR-60-12 mounted?
Where can I download the HDR-60-12 datasheet?
Is the HDR-60-12 genuine, and do you provide a GST invoice?
Can I order the HDR-60-12 in bulk for OEM or wholesale use?
