Mean Well MDR-40-12 12V 3.3A 40W DIN Rail Power Supply
Regular price
₹1,712
Regular price
₹2,900
Sale price
₹1,712
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,450.85
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-35-12 SMPS - 12V 3A - 36W Metal Power Supply
₹918
Mean Well LRS-50-12 SMPS - 12V 4.2A - 50.4W Metal Power Supply
₹1,007
Mean Well RS-25-12 SMPS - 12V 2.1A - 25W Metal Power Supply
₹940
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
MDR-40-12, a din rail mounted from Mean Well, rated 12 VDC output at 3.3 AMP, 40W output power.
Output voltage
12 VDC
Output current
3.3 AMP
Power
40W
Input voltage
85 to 264V AC 120 to 370V DC
Technical specifications
| Make | Mean Well |
| Model | MDR-40-12 |
| Output voltage | 12 VDC |
| Output current | 3.3 AMP |
| Input voltage | 85 to 264V AC 120 to 370V DC |
| Product Category | DIN Rail Power Supplies |
| Input Type | 1-Phase / Single Phase |
| Number of Outputs | 1 Output |
| Output Voltage-Channel 1 | 12 VDC |
| Output Current-Channel 1 | 3.33 A |
| Industry | Industrial |

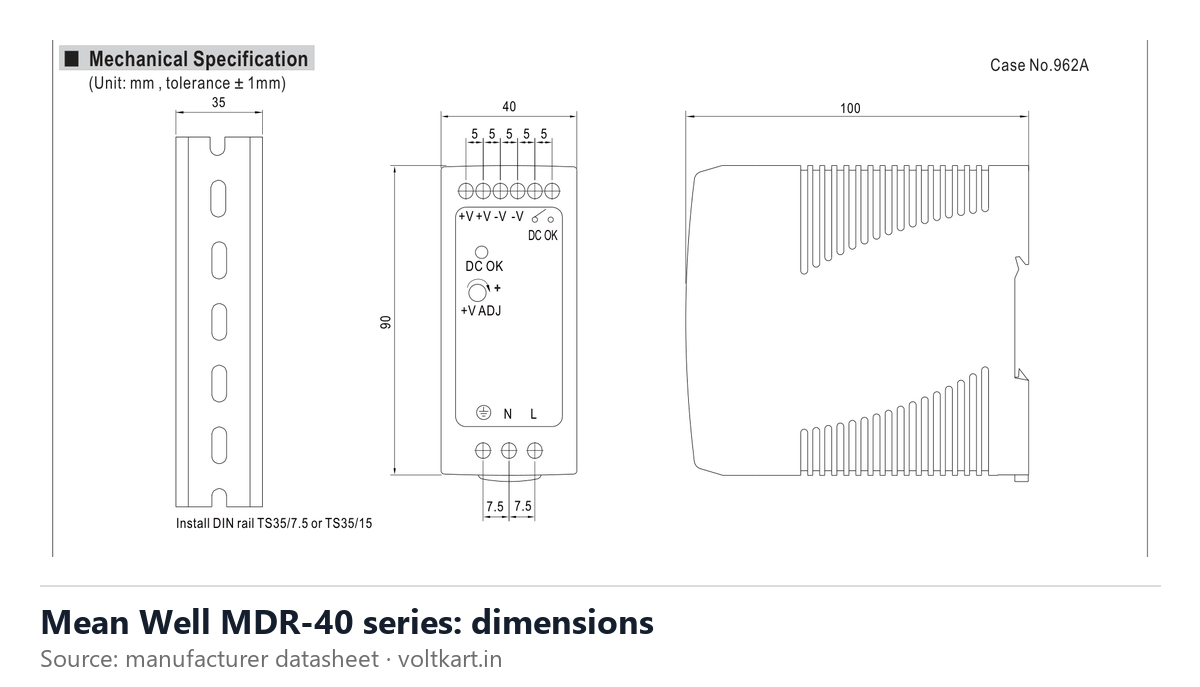

| Length | 100 mm |
| Width | 40 mm |
| Height | 90 mm |
| Mounting Style | DIN Rail Mount |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 340 g |
Frequently asked questions about the Mean Well MDR-40-12
What is the output of the Mean Well MDR-40-12?
The MDR-40-12 is rated 12 VDC output, output current 3.3 AMP, 40W.
What input voltage does the MDR-40-12 accept?
The MDR-40-12 accepts an input of 85 to 264V AC 120 to 370V DC, as listed on this page.
How is the MDR-40-12 mounted?
Mounting style: DIN Rail Mount.
Where can I download the MDR-40-12 datasheet?
You can download it from the datasheet section on this page: MDR-40-12 datasheet.
Is the MDR-40-12 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the MDR-40-12 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
