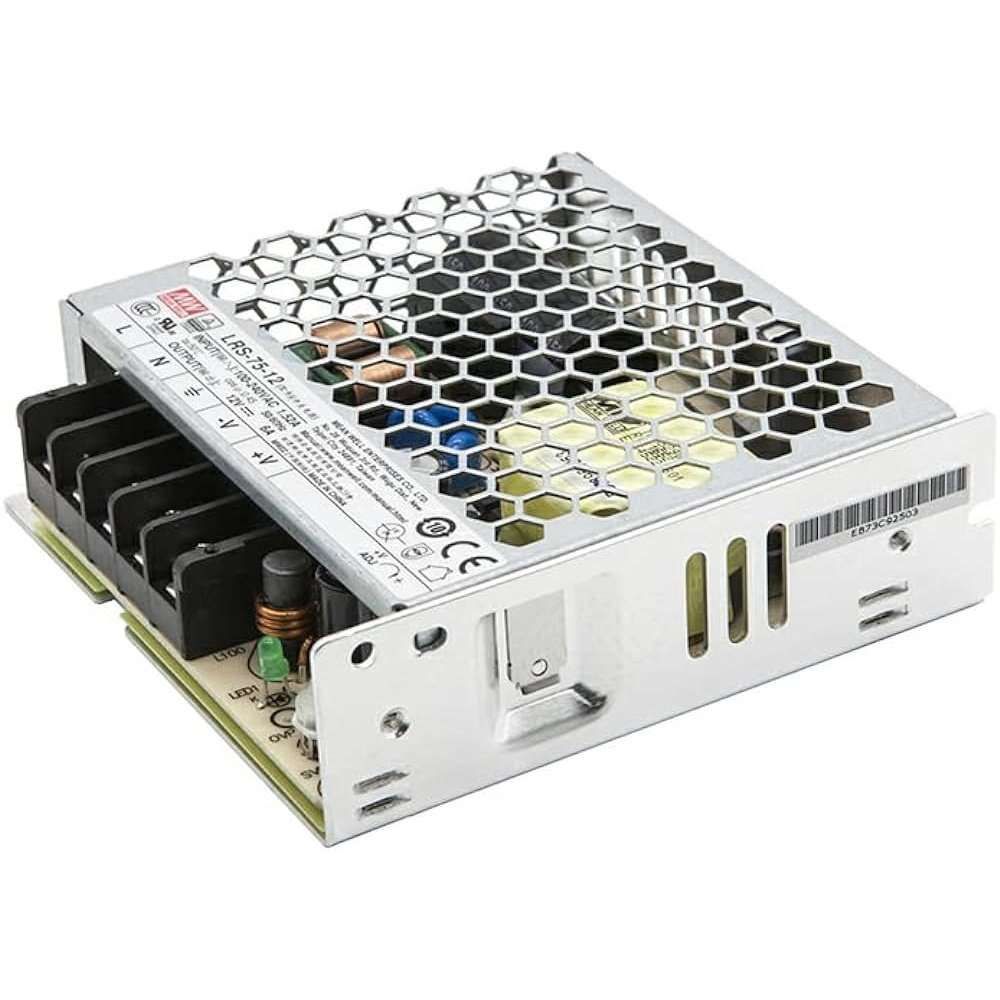

Mean Well LRS-75-12 12V 6A 72W Enclosed SMPS Power Supply

LRS-75-12, an enclosed power supply from Mean Well, rated 12 VDC output at 6 AMP, 72W output power.

Technical specifications

More about the LRS-75-12

Mean Well LRS-75-12: SMPS Power Supply | 12V 6A 72W Enclosed Switching Power Supply The Mean Well LRS-75-12 is a compact and reliable 12V 6A Enclosed SMPS designed to deliver stable DC power for industrial automation, LED lighting, security systems, communication equipment, and electronic control panels. With a rated output of 72W , universal AC input, and high conversion efficiency, this power supply is an ideal choice for OEMs, panel builders, machine manufacturers, and system integrators looking for dependable long-term performance. Part of the globally trusted Mean Well LRS Series , the LRS-75-12 accepts a universal input voltage of 85–264VAC or 120–373VDC and provides a regulated 12V DC output at 6A . The compact enclosed metal case offers excellent heat dissipation while occupying minimal panel space. The power supply includes built-in short circuit, overload, and over-voltage protection , ensuring safe operation even in demanding industrial environments. With less than 0.3W no-load power consumption and up to 89% efficiency , the LRS-75-12 helps reduce energy consumption while maintaining reliable performance. It also features an adjustable output voltage range of 10.2V to 13.8V , allowing fine-tuning for specific applications. The LRS-75-12 is widely used in industrial automation panels, PLC systems, access control systems, CCTV installations, LED lighting projects, test equipment, and electronic machinery. Its proven reliability, compact dimensions, and 3-year manufacturer warranty make it one of the most popular enclosed SMPS solutions for industrial and commercial applications. Key Features • Genuine Mean Well LRS Series Power Supply • Output Voltage: 12V DC • Output Current: 6A • Rated Output Power: 72W • Universal AC Input: 85–264VAC • Compact enclosed metal housing • High efficiency up to 89% • Adjustable output voltage (10.2V–13.8V) • Built-in Short Circuit, Overload & Over Voltage protection • Low no-load power consumption (<0.3W) • 3-Year Mean Well Manufacturer Warranty Technical Specifications • Model: LRS-75-12 • Brand: Mean Well • Series: LRS Series • Product Type: Enclosed SMPS / Switching Power Supply • Input Voltage: 85–264VAC / 120–373VDC • Output Voltage: 12V DC • Output Current: 6A • Rated Power: 72W • Efficiency: Up to 89% • Output Voltage Adjustment: 10.2–13.8V DC • Cooling Method: Natural Air Convection • Mounting Type: Chassis Mount • Dimensions: 99 × 97 × 30mm • Operating Temperature: -30°C to +70°C Applications • Industrial control panels • PLC automation systems • CCTV and security systems • LED lighting installations • Industrial automation equipment • Electronic testing equipment • Communication devices • Access control systems • OEM machinery • Instrumentation and control systems Why Buy From Voltkart? • Authorised Mean Well distributor in India • Genuine Mean Well products with manufacturer warranty • GST invoice provided with every order • Pan India delivery in 5–7 days • Bulk pricing available on WhatsApp • Technical support for product selection and replacement Frequently Asked Questions Q: What is the output rating of the Mean Well LRS-75-12? A: The LRS-75-12 delivers a regulated 12V DC output at 6A , providing a maximum output power of 72W . Q: What protection features are included in the LRS-75-12? A: The power supply includes built-in short circuit, overload, and over-voltage protection , ensuring safe and reliable operation in industrial applications. Q: Where is the Mean Well LRS-75-12 commonly used? A: The LRS-75-12 is widely used in industrial automation panels, PLC systems, LED lighting, CCTV systems, access control equipment, OEM machinery, communication devices, and various electronic control applications requiring a stable 12V DC power supply. Related Products & Collections Also explore our complete range of Protection Relays , Phase Failure Relays , Phase Sequence Relays , and Motor Protection Devices for enhanced electrical safety. For complete automation panel solutions, browse our collections of PLCs , Timers , Temperature Controllers , AC Drives , and SELEC automation products. You may also be interested in our range of Power Supply solutions including DIN Mounted SMPS , Enclosed SMPS , 1 Phase SMPS , 3 Phase SMPS , and popular Mean Well MDR Series , NDR Series , EDR Series , and TDR Series power supplies for industrial applications. LRS-75-12 Datasheet

Frequently asked questions about the Mean Well LRS-75-12

Compare and explore more Mean Well products

• LRS-75-24 - 24 VDC at 3 AMP
• LRS-75-5 - 5 VDC at 14 AMP
