MEANWELL
Mean Well MDR-10-12 12V 0.85A 10W DIN Rail Power Supply
No reviews
Regular price
Rs. 1,060.00
Regular price
Rs. 1,900.00
Sale price
Rs. 1,060.00
Incl. all taxes • Shipping calculated at checkout.
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
Price excl. GST
Rs. 898.31
GST @ 18% included in above product price
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Couldn't load pickup availability
Description
MDR-10-12, a din rail mounted from Mean Well, rated 12 VDC output at 0.85 AMP, 10W output power.
Output voltage
12 VDC
Output current
0.85 AMP
Power
10W
Input voltage
85 to 264V AC 120 to 370V DC
Technical specifications
| Make | Mean Well |
| Model | MDR-10-12 |
| Output voltage | 12 VDC |
| Output current | 0.85 AMP |
| Input voltage | 85 to 264V AC 120 to 370V DC |
| Product Category | DIN Rail Power Supplies |
| Input Type | 1-Phase / Single Phase |
| Number of Outputs | 1 Output |
| Output Voltage-Channel 1 | 12 VDC |
| Output Current-Channel 1 | 840 mA |
| Industry | Industrial |

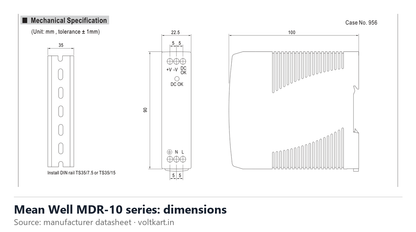

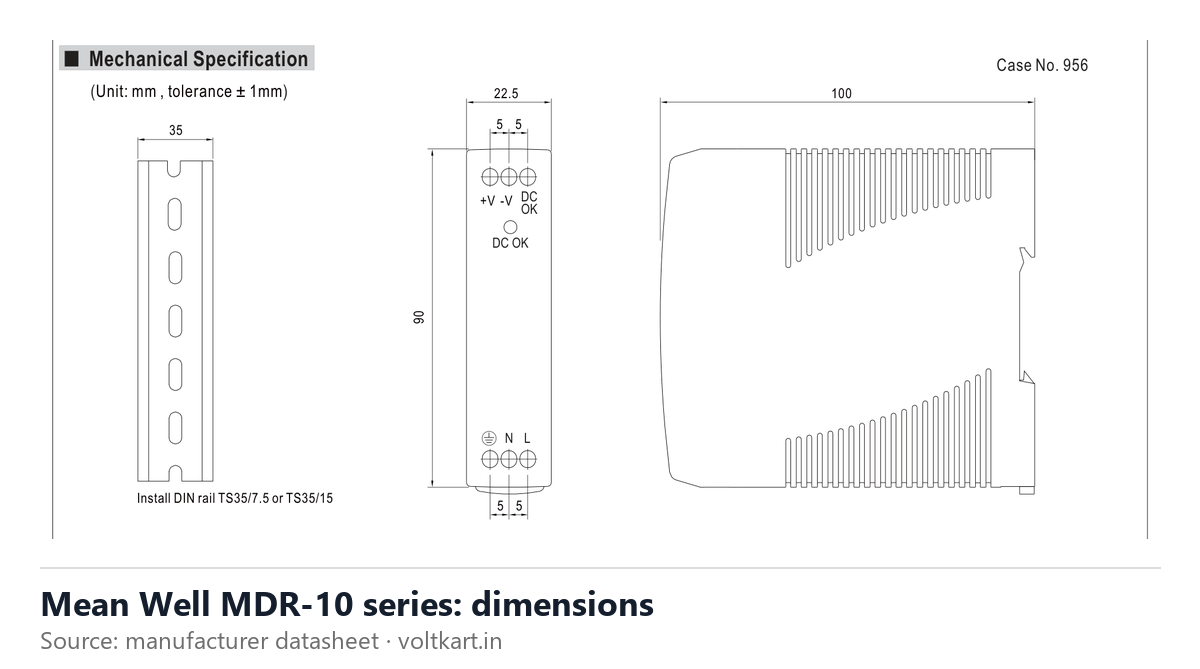

| Length | 100 mm |
| Width | 22.5 mm |
| Height | 90 mm |
| Mounting Style | DIN Rail Mount |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 170 g |
Notable features
- Datasheet
Frequently asked questions about the Mean Well MDR-10-12
What is the output of the Mean Well MDR-10-12?
The MDR-10-12 is rated 12 VDC output, output current 0.85 AMP, 10W.
What input voltage does the MDR-10-12 accept?
The MDR-10-12 accepts an input of 85 to 264V AC 120 to 370V DC, as listed on this page.
How is the MDR-10-12 mounted?
Mounting style: DIN Rail Mount.
Where can I download the MDR-10-12 datasheet?
You can download it from the datasheet section on this page: MDR-10-12 datasheet.
Is the MDR-10-12 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the MDR-10-12 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
