MEANWELL

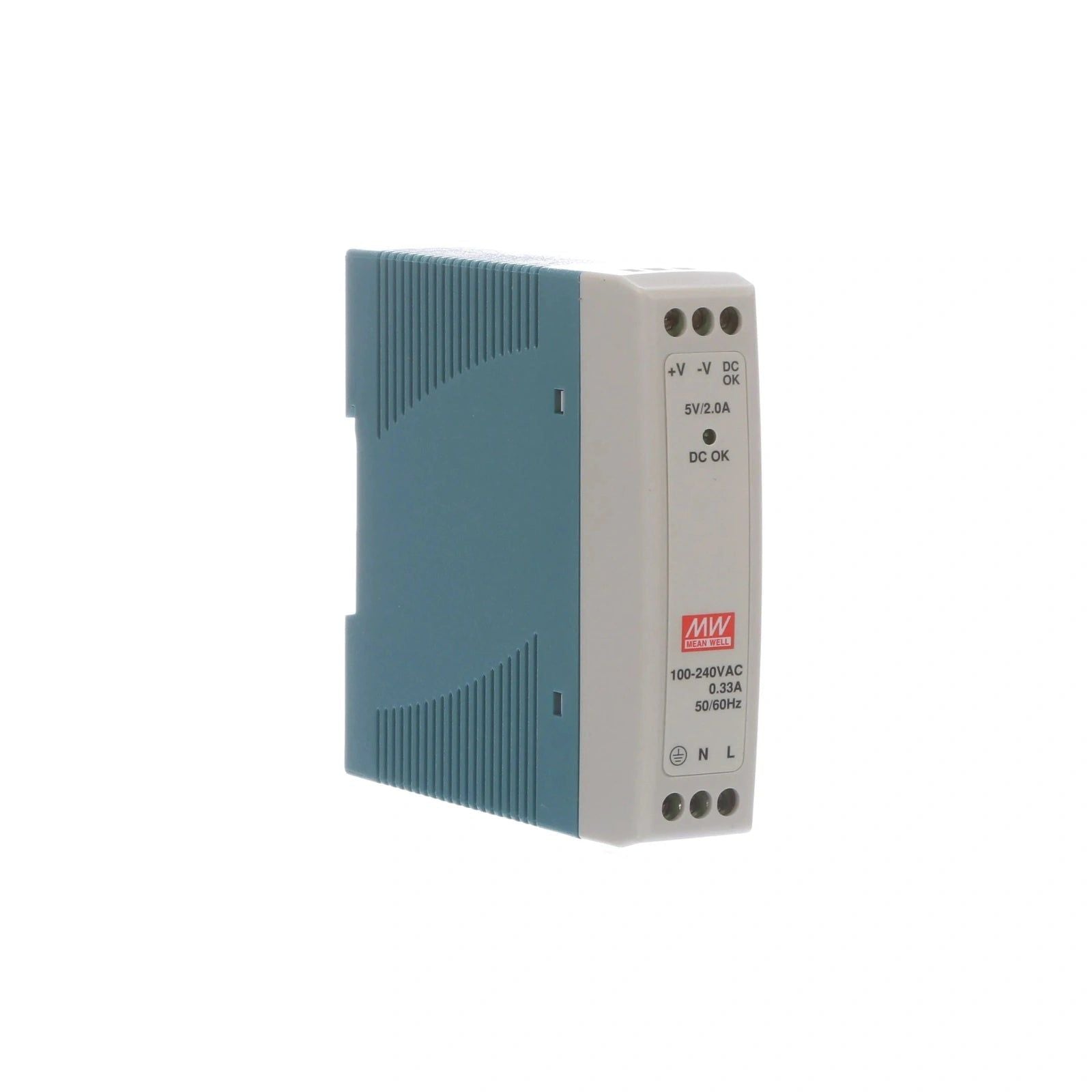

Mean Well MDR-10-5, 5v 2amp din mounted power supply

Rs. 1,060.00

~~Rs. 1,900.00~~ Rs. 1,060.00

Sale Sold out

Incl. all taxes • Shipping calculated at checkout.

Authorized Dealer GST Invoice PAN India Delivery Fast Dispatch

Price excl. GST Rs. 5,578.95

GST @ 18% included in above product price

🚚 Delivered within 5 to 7 Days

Quantity

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp

Specifications

Product Attribute	Attribute Value
Manufacturer:	MEAN WELL
Product Category:	DIN Rail Power Supplies
RoHS:	Details
Product:	Switching Supplies
Input Type:	1-Phase / Single Phase
Output Power:	10 W
Input Voltage:	85 VAC to 264 VAC, 120 VDC to 370 VDC
Number of Outputs:	1 Output
Output Voltage-Channel 1:	5 VDC
Output Current-Channel 1:	2 A
Output Voltage-Channel 2:	-
Output Current-Channel 2:	-
Output Voltage-Channel 3:	-
Output Current-Channel 3:	-
Industry:	Industrial
Length:	100 mm
Width:	22.5 mm
Height:	90 mm
Series:	MDR-10
Brand:	MEAN WELL
Mounting Style:	DIN Rail Mount
Product Type:	DIN Rail Power Supplies
	72
Subcategory:	AC-DC Power Supply
Unit Weight:	170 g

Datasheet

MDR-10-5 Datasheet (PDF)
