Omron

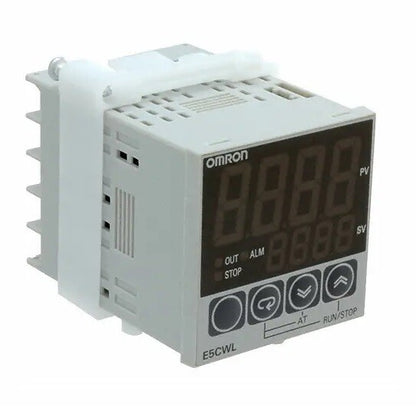

Omron PID 48*48 E5CWL-R1TC AC100-240, Relay output
Regular price
₹1,950
Regular price
₹3,400
Sale price
₹1,950
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,652.54
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Voltkart Type J Thermocouple windsor type
₹160
Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
₹280
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Description
E5CWL-R1TC is an Omron PID temperature controller -- pID/On-Off temperature control -- checked against Omron’s own published product data.
Series
E5CWL
Type
Temperature Controller (Type J, K, R, S, T)
Input Range
-200°C ~ 1700°C
Output Type
Relay (2)
Technical specifications
| Make | Omron |
| Model | E5CWL-R1TC |
| Series | E5CWL |
| Part Status | Active |
| Type | Temperature Controller (Type J, K, R, S, T) |
| Input Range | -200°C ~ 1700°C |
| Output Type | Relay (2) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
| Display Type | LED - Dual Color Characters |
| Display Characters - Height | 0.638" (16.20mm) |
| Voltage - Supply | 100 ~ 240VAC |

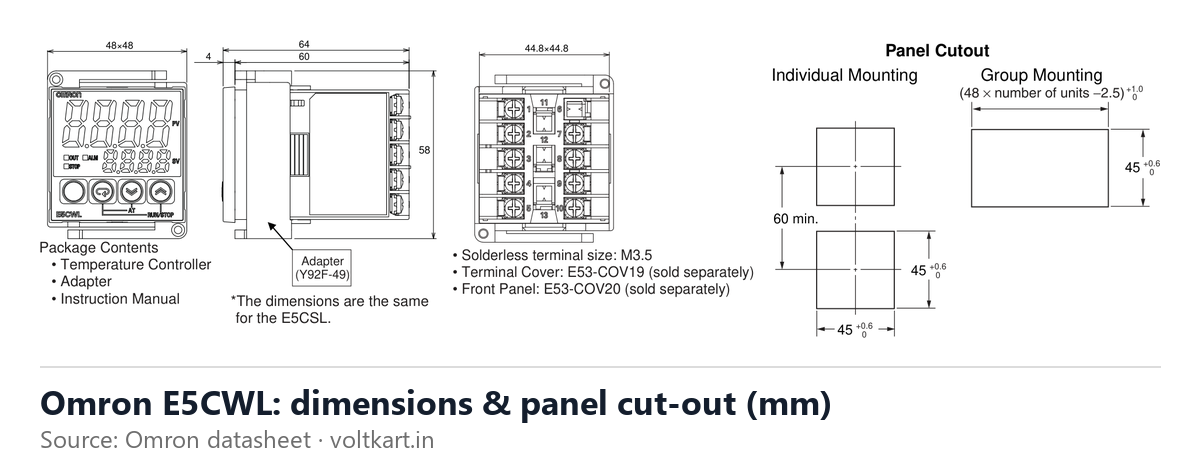

| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP50 - Dust Protected |
| Operating Temperature | -10°C ~ 55°C |
| Weight | 0.221 lb (100.24 g) |
OMR
E5CWL-R1TC product family on Omron’s official site
Look up the full datasheet directly from Omron
Frequently asked questions about the Omron E5CWL-R1TC
What are the series of the E5CWL-R1TC?
E5CWL, per Omron’s own product data.
What is the type of the E5CWL-R1TC?
Temperature Controller (Type J, K, R, S, T), per Omron’s own product data.
What is the input range of the E5CWL-R1TC?
-200°C ~ 1700°C, per Omron’s own product data.
What is the output type of the E5CWL-R1TC?
Relay (2), per Omron’s own product data.
Where can I check the E5CWL-R1TC specifications?
You can look it up directly on Omron’s official site: E5CWL-R1TC family on Omron’s site.
Is the E5CWL-R1TC genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Omron products, and every order comes with a GST invoice.
Can I order the E5CWL-R1TC in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
