Autonics

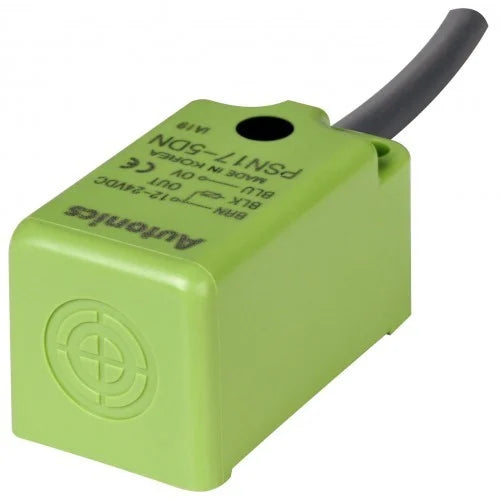

PSN17-5DN Autonics Inductive Proximity Sensor NPN NO
Regular price
Rs. 910.00
Regular price
Rs. 1,460.00
Sale price
Rs. 910.00
Incl. all taxes • Shipping calculated at checkout.
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
Price excl. GST
Rs. 4,789.47
GST @ 18% included in above product price
🚚 Delivered within 5 to 7 Days
Description
- Sensing side size : Frame size 17mm
- Sensing distance : 5mm
- Standard sensing target : 18×18×1mm(iron)
- Response frequency : 700Hz
- Current specification : Current consumption: Max. 10
-
Wire type and power
DC 3-wire type 12-24VDC
Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target 18×18×1mm(iron) Response frequency 700Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
