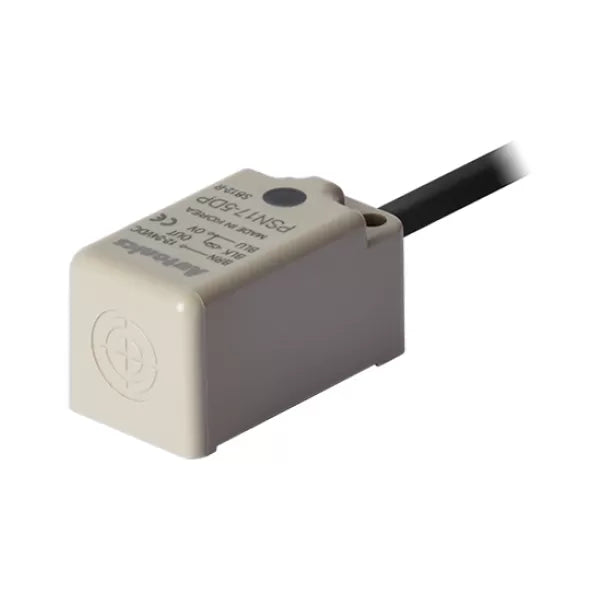

PSN17-5DP Autonics Inductive Proximity Sensor PNP NO
PSN17-5DP Autonics Inductive Proximity Sensor PNP NO
Regular price
Rs. 860.00
Regular price
Rs. 1,460.00
Sale price
Rs. 860.00
Price (Exclusive of GST): Rs. 728.81
Unit price perTaxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Sensing side size : Frame size 17mm
- Sensing distance : 5mm
- Standard sensing target : 18×18×1mm(iron)
- Response frequency : 700Hz
- Current specification : Current consumption: Max. 10mA
| Wire type and power | DC 3-wire type 12-24VDC
|
|---|---|
| Sensing side size | Frame size 17mm |
| Sensing distance | 5mm |
| Standard sensing target | 18×18×1mm(iron) |
| Response frequency | 700Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Sensing type | Standard type(front sensing type) |
| Material | Heat-resistant ABS |
| Protection structure | IP67 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | ≈ 62g (≈ 83g) |
