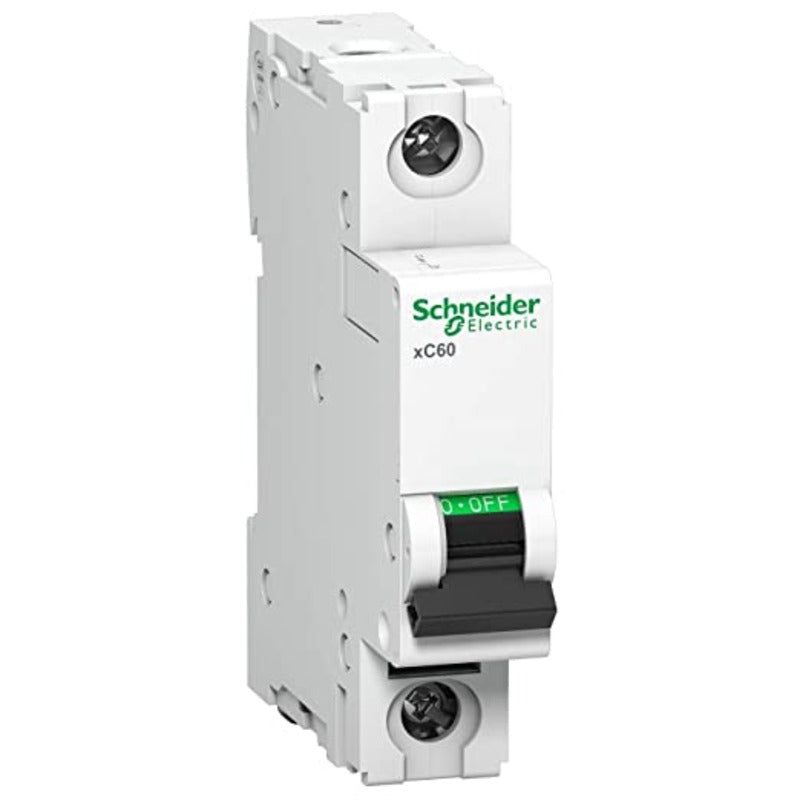

Schneider 63 amp, single pole mcb, C curve
Regular price
Rs. 513.00
Regular price
Rs. 1,295.00
Sale price
Rs. 513.00
Incl. all taxes • Shipping calculated at checkout.
Minimum order value is Rs 1,001. Add other items to reach it.
Price excl. GST
Rs. 434.75
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider MCCB 1000 amp, 4 pole 50ka, LV510241
Rs. 120,298
Schneider MCCB 1000 amp, 3 pole 50ka, LV510231
Rs. 86,849
Schneider MCCB 800 amp, 4 pole 50ka, LV508241
Rs. 83,130
Schneider MCCB 800 amp, 3 pole 50ka, LV508231
Rs. 66,580
Description
63A single-pole MCB is a Schneider Electric miniature circuit breaker (MCB) -- overload and short-circuit protection for a final distribution circuit -- checked against Schneider’s own official product data.
Poles
1
Rated current (In)
63A
Tripping curve
C curve
Breaking capacity
10kA per IEC 60898-1
Technical specifications
| Make | Schneider Electric |
| Model | 63A single-pole MCB |
| Poles | 1 |
| Rated current (In) | 63A |
| Tripping curve | C curve |
| Breaking capacity | 10kA per IEC 60898-1 |
| Rated voltage | 240V AC |
| Mounting | DIN rail |
Worth checking: This product's title and SKU don't state Schneider's exact MCB sub-range/catalogue number, so the model name above is generic. The rating above (10kA breaking capacity, C curve, IEC 60898-1) is confirmed by the store owner -- let us know the exact catalogue number if you'd like the page to name a specific sub-range.
SE
63A single-pole MCB on Schneider Electric’s official site
Look up the full datasheet directly from se.com
Frequently asked questions about the Schneider 63A single-pole MCB
What are the poles of the 63A single-pole MCB?
1, per Schneider Electric’s own product data.
What is the rated current of the 63A single-pole MCB?
63A, per Schneider Electric’s own product data.
What is the tripping curve of the 63A single-pole MCB?
C curve, per Schneider Electric’s own product data.
What is the breaking capacity of the 63A single-pole MCB?
10kA per IEC 60898-1, per Schneider Electric’s own product data.
Where can I check the 63A single-pole MCB specifications?
You can look it up directly on Schneider Electric’s official site: 63A single-pole MCB on se.com.
Is the 63A single-pole MCB genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the 63A single-pole MCB in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
