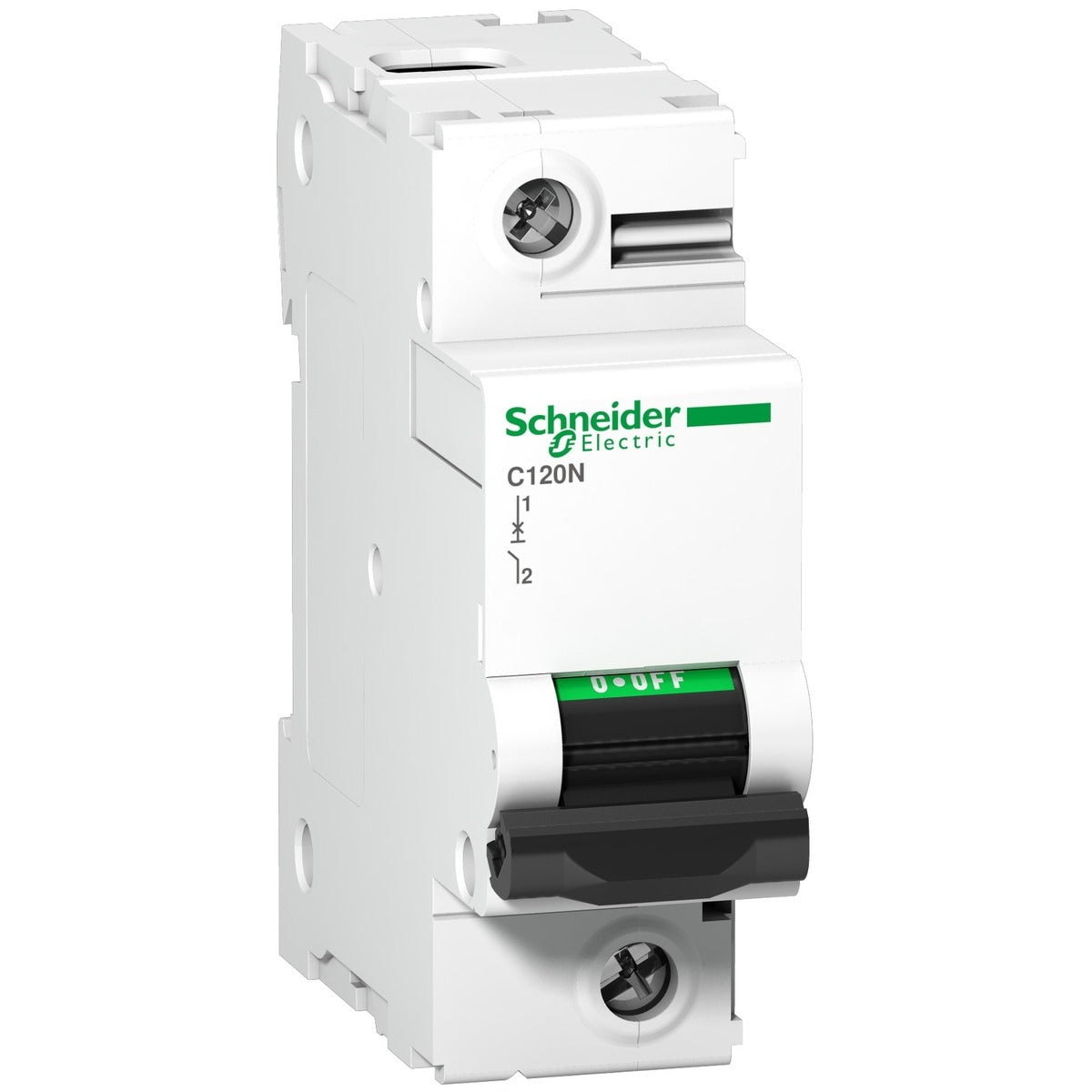

Schneider 80 amp, single pole mcb, C curve, C120N 10kA
Regular price
Rs. 2,344.00
Regular price
Rs. 5,519.00
Sale price
Rs. 2,344.00
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
Rs. 1,986.44
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider MCCB 1000 amp, 4 pole 50ka, LV510241
Rs. 120,298
Schneider MCCB 1000 amp, 3 pole 50ka, LV510231
Rs. 86,849
Schneider MCCB 800 amp, 4 pole 50ka, LV508241
Rs. 83,130
Schneider MCCB 800 amp, 3 pole 50ka, LV508231
Rs. 66,580
Description
A9N18357 is a Schneider Electric miniature circuit breaker (MCB). Schneider lists it as: Miniature circuit-breaker, Acti9 C120N, 1P, 80 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2). The C120N is Schneider’s higher-rating Acti9 MCB range, for feeders above 63A.
In rated current
80 A
Poles description
1P
Curve code
C
Breaking capacity (IEC 60898-1)
10 kA
Technical specifications
| Make | Schneider Electric |
| Model | A9N18357 |
| Product name | Acti9 C120 |
| Product or component type | Miniature circuit-breaker |
| Device application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| In rated current | 80 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 3 kA Icu at 380...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2; 20 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 12 V DC conforming to... |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Standards | EN/IEC 60898-1; EN/IEC 60947-2 |
| Product certifications | EAC |
| Network frequency | 50/60 Hz |
| Ue rated operational voltage | 380...415 V AC 50/60 Hz; 125 V DC |
| Ics rated service breaking capacity | 15 kA 75 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz; 15 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC |
| Ui rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Uimp rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 81 mm |
| Depth | 73 mm |
| Width | 27 mm |
| Net weight | 0.205 kg |
| Colour | White |
| IP degree of protection | IP20 conforming to IEC 60529 |
PDF
A9N18357 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider A9N18357
What is the in rated current of the A9N18357?
80 A, as published by Schneider Electric.
What is the poles description of the A9N18357?
1P, as published by Schneider Electric.
What is the curve code of the A9N18357?
C, as published by Schneider Electric.
Where can I download the A9N18357 datasheet?
You can download the official PDF datasheet here: A9N18357 datasheet (PDF).
Is the A9N18357 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the A9N18357 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
