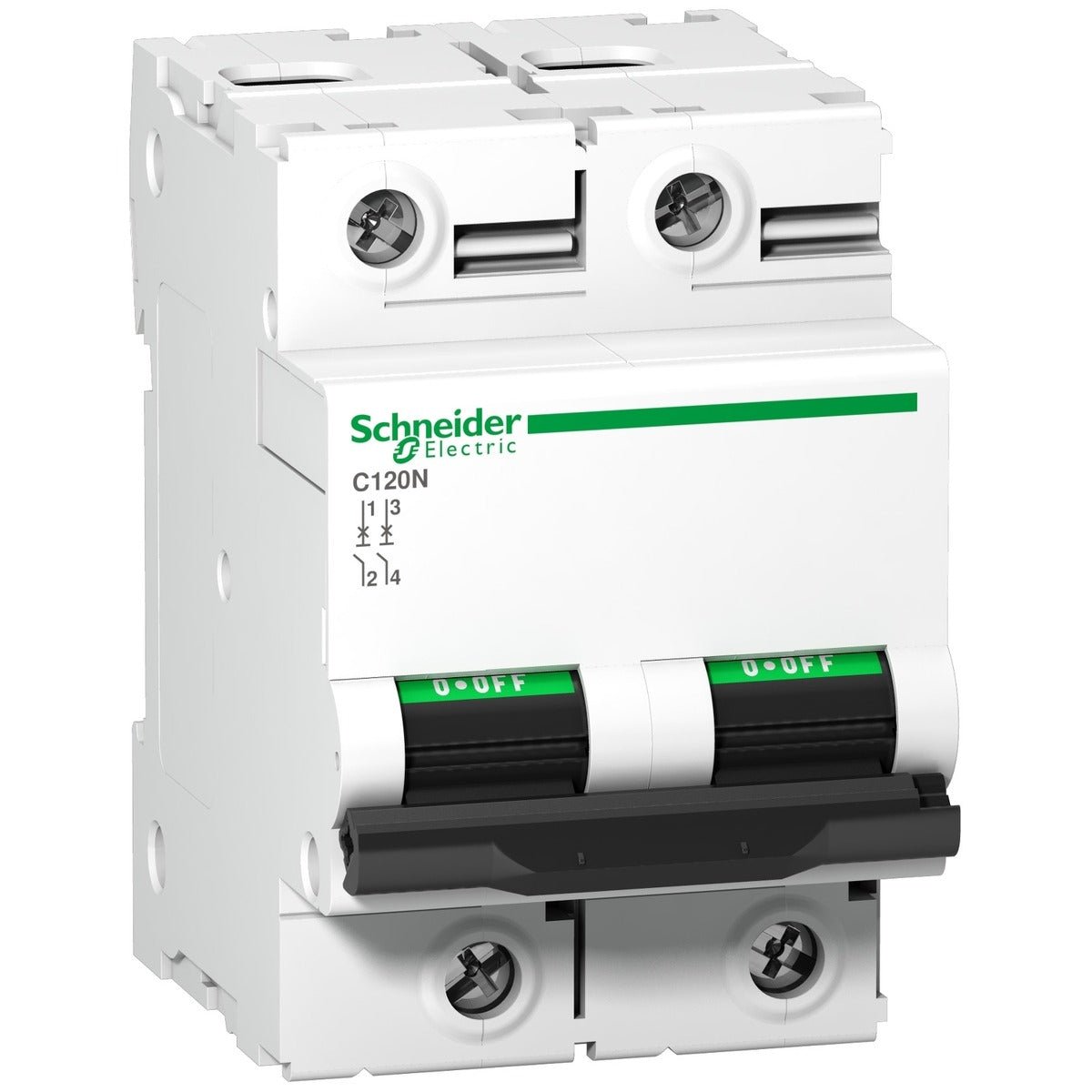

Schneider 80 amp, double pole mcb, C curve, C120N 10kA

Q: What is the in rated current of the A9N18361?

80 A, as published by Schneider Electric.

Q: What is the poles description of the A9N18361?

2P, as published by Schneider Electric.

Q: What is the curve code of the A9N18361?

C, as published by Schneider Electric.

Q: Where can I download the A9N18361 datasheet?

You can download the official PDF datasheet here: A9N18361 datasheet (PDF) on this page.

Q: Is the A9N18361 genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the A9N18361 in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

Rs. 5,197.00

~~Rs. 12,234.00~~ Rs. 5,197.00

58% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 4,404.24

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider MCCB 1000 amp, 4 pole 50ka, LV510241 Rs. 120,298

Schneider MCCB 1000 amp, 3 pole 50ka, LV510231 Rs. 86,849

Schneider MCCB 800 amp, 4 pole 50ka, LV508241 Rs. 83,130

Schneider MCCB 800 amp, 3 pole 50ka, LV508231 Rs. 66,580

Description

A9N18361 is a Schneider Electric miniature circuit breaker (MCB). Schneider lists it as: Miniature circuit breaker (MCB), Acti9, C120N, 2P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). The C120N is Schneider’s higher-rating Acti9 MCB range, for feeders above 63A.

In rated current

80 A

Poles description

2P

Curve code

C

Breaking capacity (IEC 60898-1)

10 kA

Technical specifications

Make	Schneider Electric
Model	A9N18361
Product name	Acti9 C120
Product or component type	Miniature circuit-breaker
Device application	Distribution
Poles description	2P
Number of protected poles	2
Neutral position	Left
In rated current	80 A at 30 °C
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at <= 250 V DC conforming to EN/IEC...
Suitability for isolation	Yes conforming to IEC 60947-2
Standards	EN/IEC 60947-2; EN/IEC 60898-1
Product certifications	EAC
Network frequency	50/60 Hz
Ue rated operational voltage	380...415 V AC 50/60 Hz; 220...240 V AC 50/60 Hz
Ics rated service breaking capacity	7500 A 75 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz; 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
Ui rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Uimp rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Mounting mode	Clip-on
Mounting support	35 mm symmetrical DIN rail
Height	81 mm
Depth	73 mm
Width	54 mm
Net weight	0.41 kg
Colour	White
