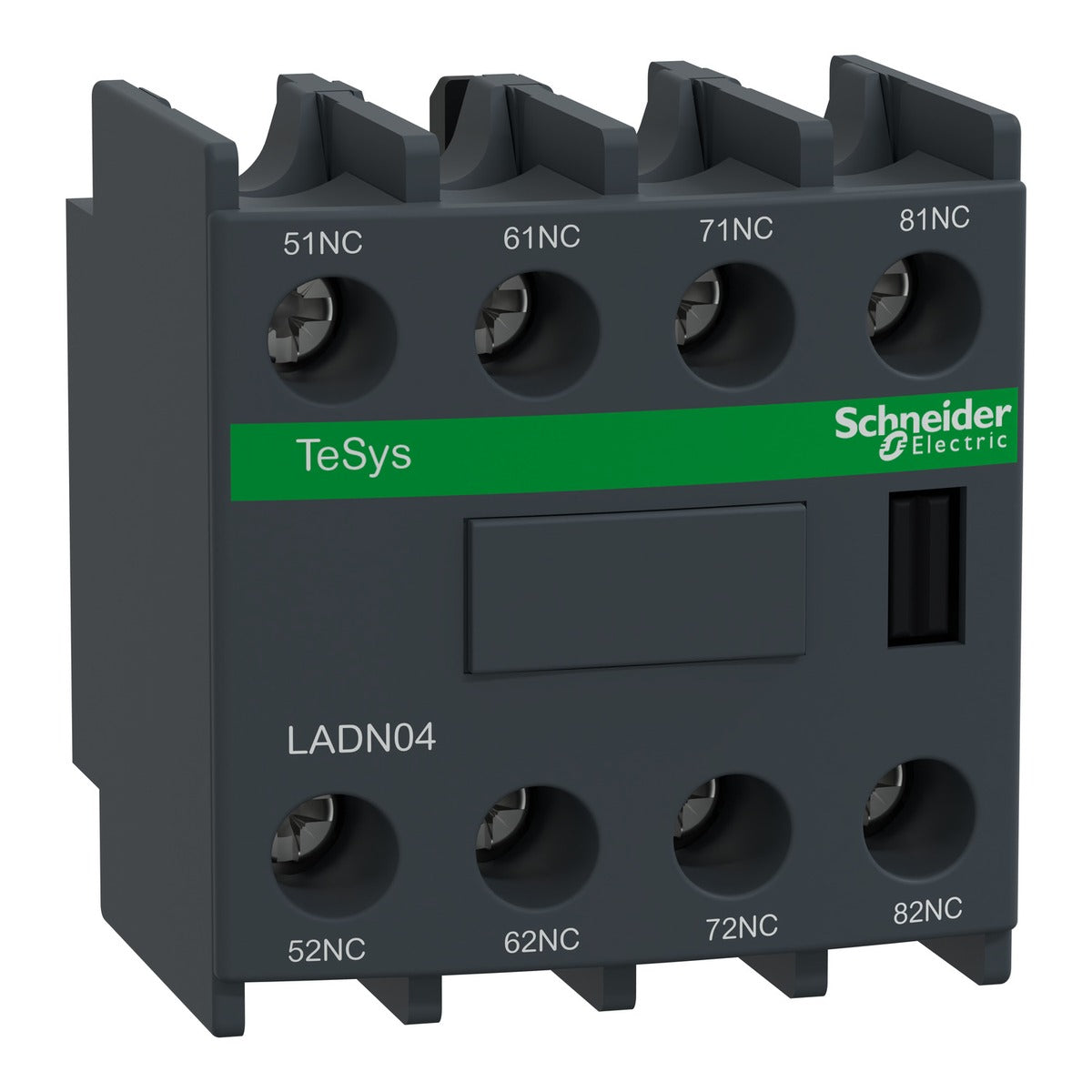

Schneider LADN04 Auxiliary Contact Block 4NC, TeSys D

Rs. 1,447.00

~~Rs. 2,555.00~~ Rs. 1,447.00

43% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 1,226.27

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

LADN04 is a Schneider Electric accessory. Schneider lists it as: Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals.

Product or component type

Auxiliary contact block

Range compatibility

TeSys D LC1D

Mounting location

Front

Net weight

0.05 kg

Make	Schneider Electric
Model	LADN04
Product name	TeSys Deca
Product or component type	Auxiliary contact block
Range compatibility	TeSys D LC1D; TeSys D CAD; TeSys F LC1F
Mounting location	Front
Pole contact composition	4 NC
Contacts operation	Instantaneous
Ue rated operational voltage	690 V AC 25...400 Hz
Ie rated operational current	6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13
Ui rated insulation voltage	690 V conforming to IEC 60947-5-1; 600 V conforming to UL; 600 V conforming to CSA
Ith conventional free air thermal current	10 A (at 60 °C)
Standards	EN/IEC 60947-5-1; GB/T 14048.5; EN 50012
Product certifications	CB Scheme; UL; CSA
Protection type	GG fuse 10 A
Mechanical durability	30 Mcycles
Connections - terminals	Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Height	48 mm
Width	44 mm
Depth	42 mm
Net weight	0.05 kg
Colour	Dark grey
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-5…60 °C
