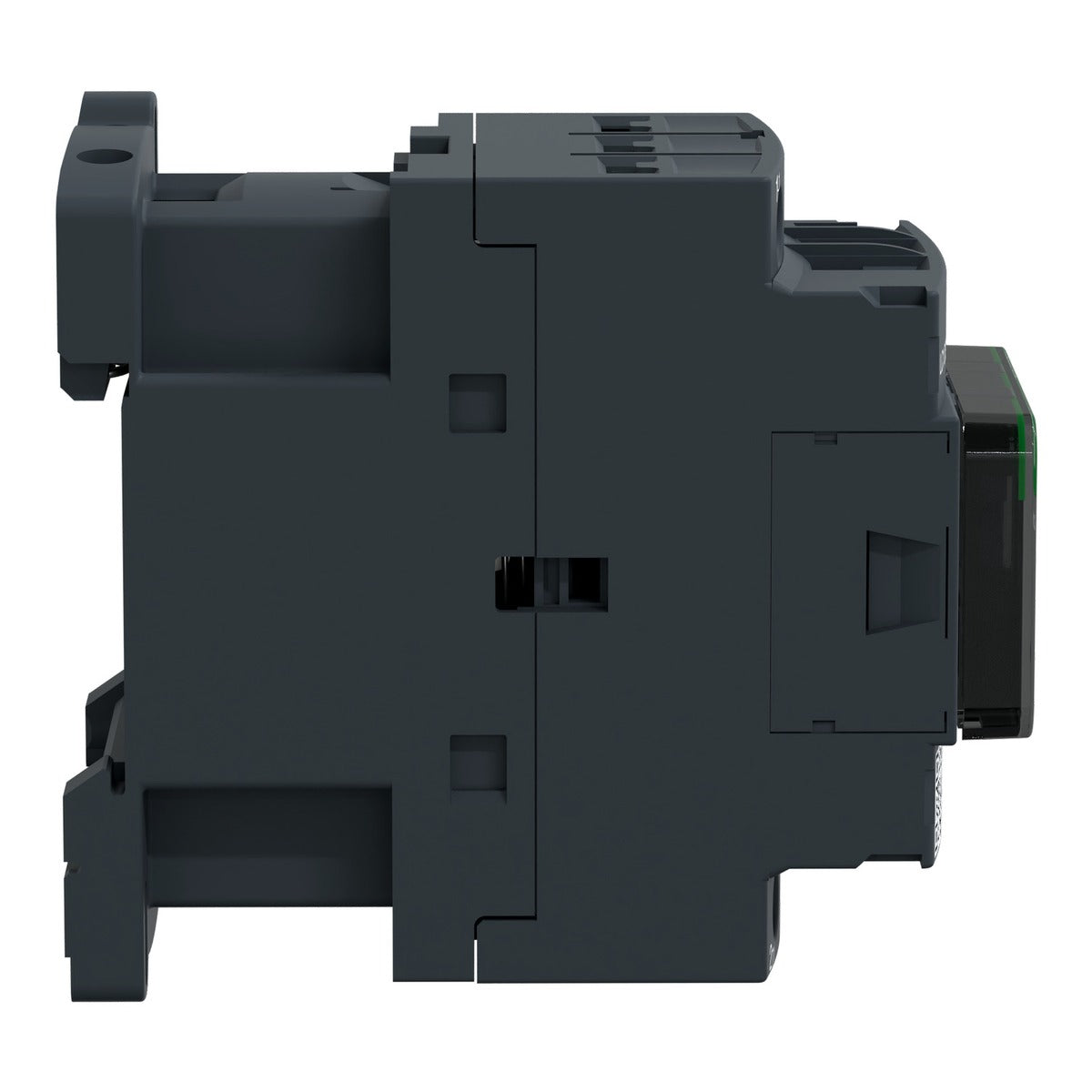

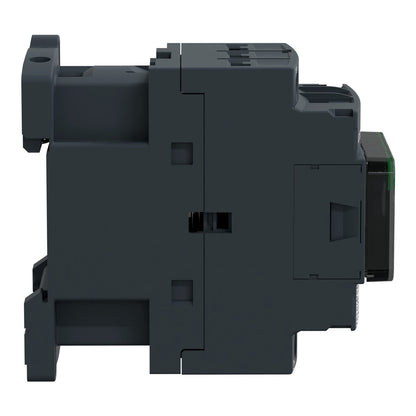

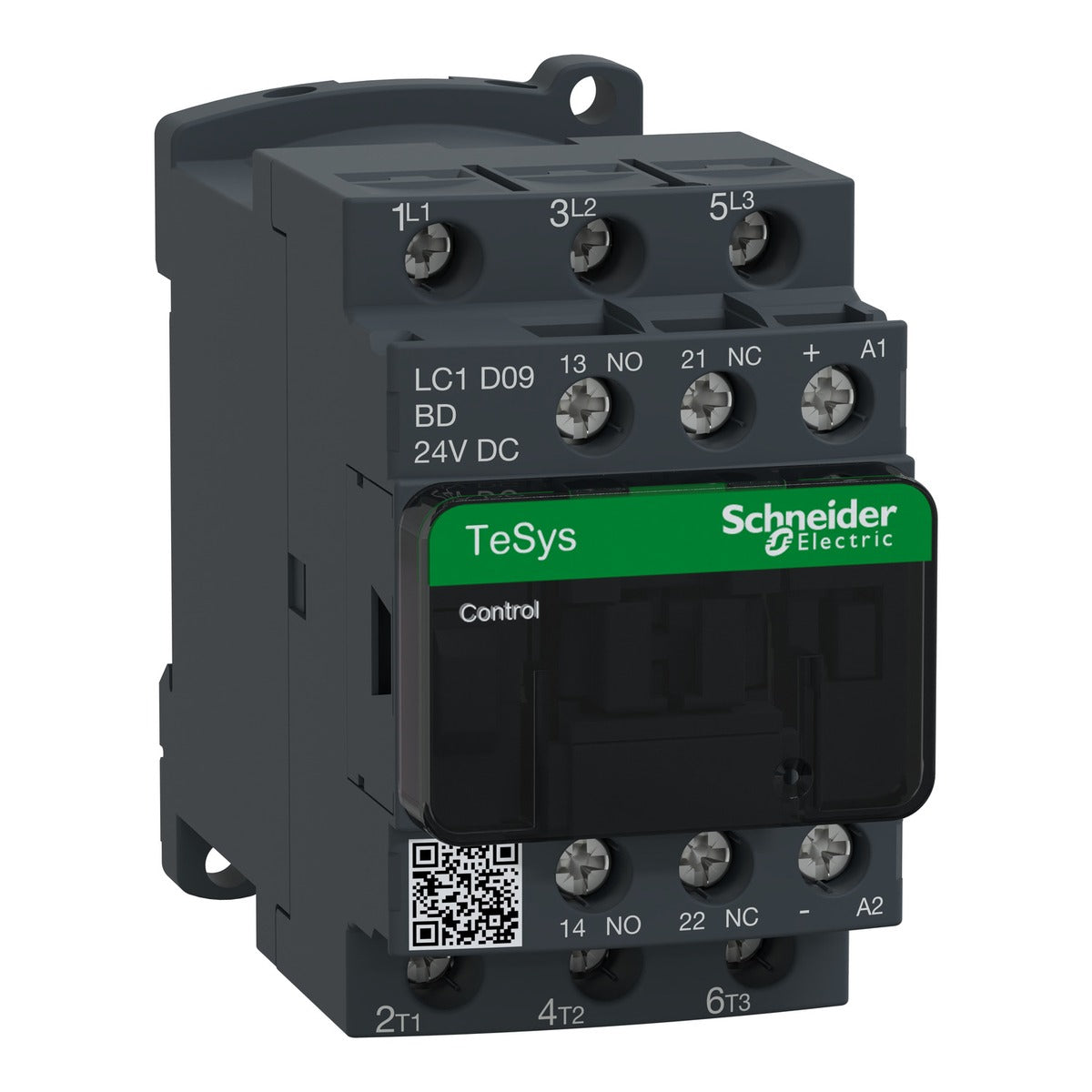

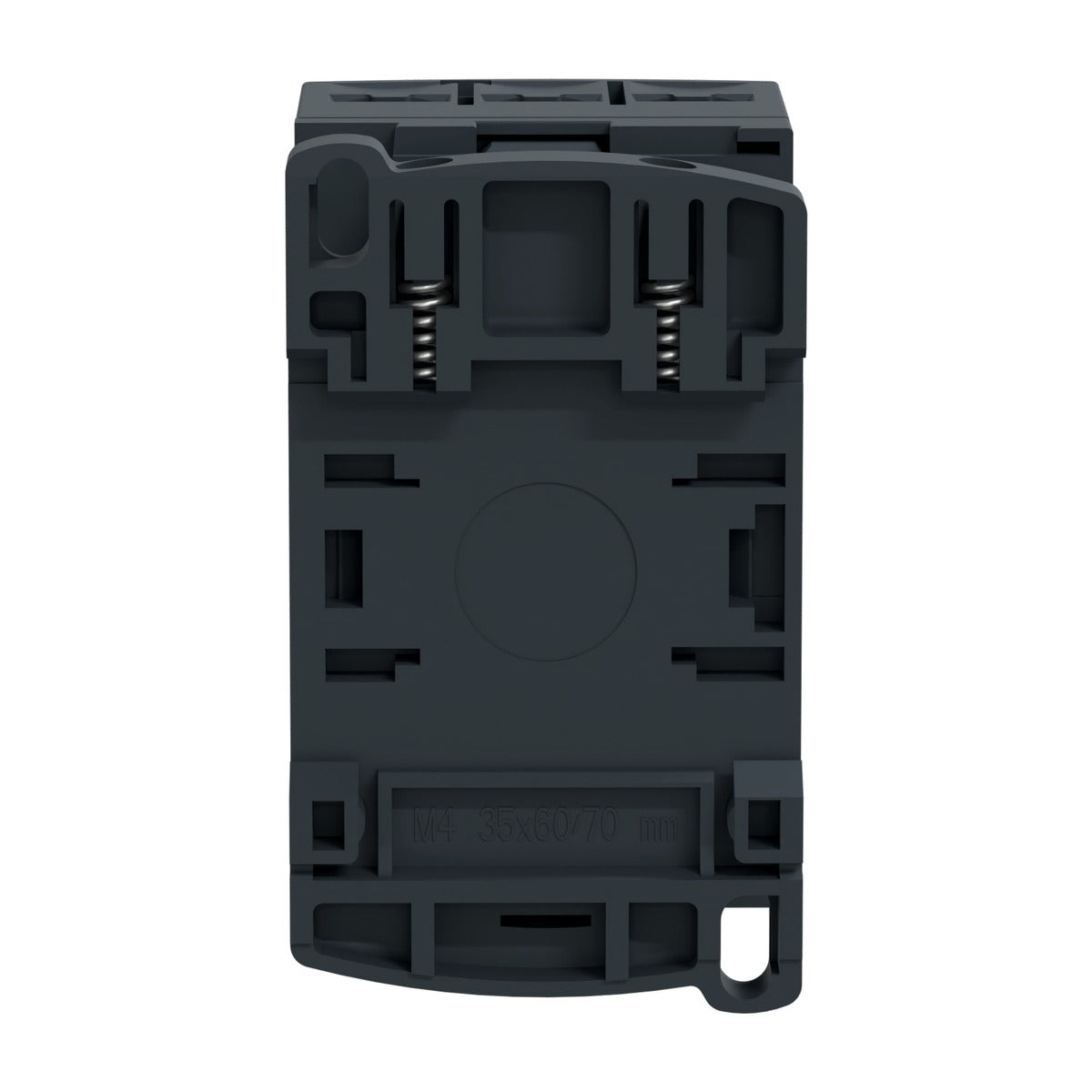

Schneider LC1D09BD, 9 Amp Contactor, 24VDC coil
Incl. GST
Delivery βΉ160 (βΉ99 in DL, UP, HR, HP) · free on orders of βΉ3,001+ · Details
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
πΒ Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LRD14 Overload Relay 7-10A, for LC1D
βΉ2,120
Schneider LRD12 Overload Relay 5.5-8A, for LC1D
βΉ1,890
Schneider LRD10 Overload Relay 4-6A, for LC1D
βΉ1,890
Schneider LRD08 Overload Relay 2.5-4A, for LC1D
βΉ1,890
Schneider Lc1d series 1no 1nc top mounted block Ladn11
βΉ541
Schneider Lc1d series 2no 2nc top mounted block Ladn22
βΉ986
Description
LC1D09BD is a Schneider Electric TeSys Deca (LC1D) contactor. Schneider lists it as: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil.
Technical specifications
| Make | Schneider Electric |
| Model | LC1D09BD |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Contactor application | Motor control; Resistive load |
| Utilisation category | AC-3; AC-3e; AC-1 |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC |
| Ie rated operational current | 9 A (at <60 Β°C) at <= 440 V AC AC-3 for power circuit; 25 A (at <60 Β°C) at <= 440 V AC AC-1 for power circuit; 9 A (at <60 Β°C) at <= 440 V AC AC-3e for power circuit |
| Uc control circuit voltage | 24 V DC |
| Motor power kW | 2.2 kW at 220/230 V AC 50/60 Hz (AC-3); 4 kW at 380/400 V AC 50/60 Hz (AC-3) |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Ith conventional free air thermal current | 25 A (at 60 Β°C) for power circuit; 10 A (at 60 Β°C) for signalling circuit |
| Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Power dissipation per pole | 1.56 W AC-1; 0.2 W AC-3 |
| Ui rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V CSA certified |
| Uimp rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 0.6 Mcycles 25 A AC-1 at Ue <= 440 V; 2 Mcycles 9 A AC-3 at Ue <= 440 V |
| Operating time | 63 Β±15 % ms closing; 20 Β±20 % ms opening |
| Maximum operating rate | 3600 cyc/h at 60 Β°C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1β¦4 mmΒ² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1β¦4 mmΒ² - cable stiffness: flexible... |
| Auxiliary contact composition | 1 NO + 1 NC |
| Standards | CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1 |
| Product certifications | UL; CCC; CSA; Marine |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -40β¦60 Β°C; 60β¦70 Β°C with derating |
Frequently asked questions about the Schneider LC1D09BD
What is the ac-3 rated current of the LC1D09BD?
What is the uc control circuit voltage of the LC1D09BD?
What is the poles description of the LC1D09BD?
Where can I download the LC1D09BD datasheet?
Is the LC1D09BD genuine, and do you provide a GST invoice?
Can I order the LC1D09BD in bulk for OEM or panel-building use?
Explore more
Motor starter chart: matching contactor and overload relay by motor kW, with prices β
Overload relay for this contactor (from our motor current chart, set at the motor nameplate current): 0.37 kW motor: LRD06 (1β1.6 A) Β· 0.55 kW motor: LRD06 (1β1.6 A) Β· 0.75 kW motor: LRD07 (1.6β2.5 A) Β· 1.1 kW motor: LRD08 (2.5β4 A) Β· 1.5 kW motor: LRD08 (2.5β4 A) Β· 2.2 kW motor: LRD10 (4β6 A) Β· 3 kW motor: LRD12 (5.5β8 A) Β· 3.7 kW motor: LRD14 (7β10 A).
