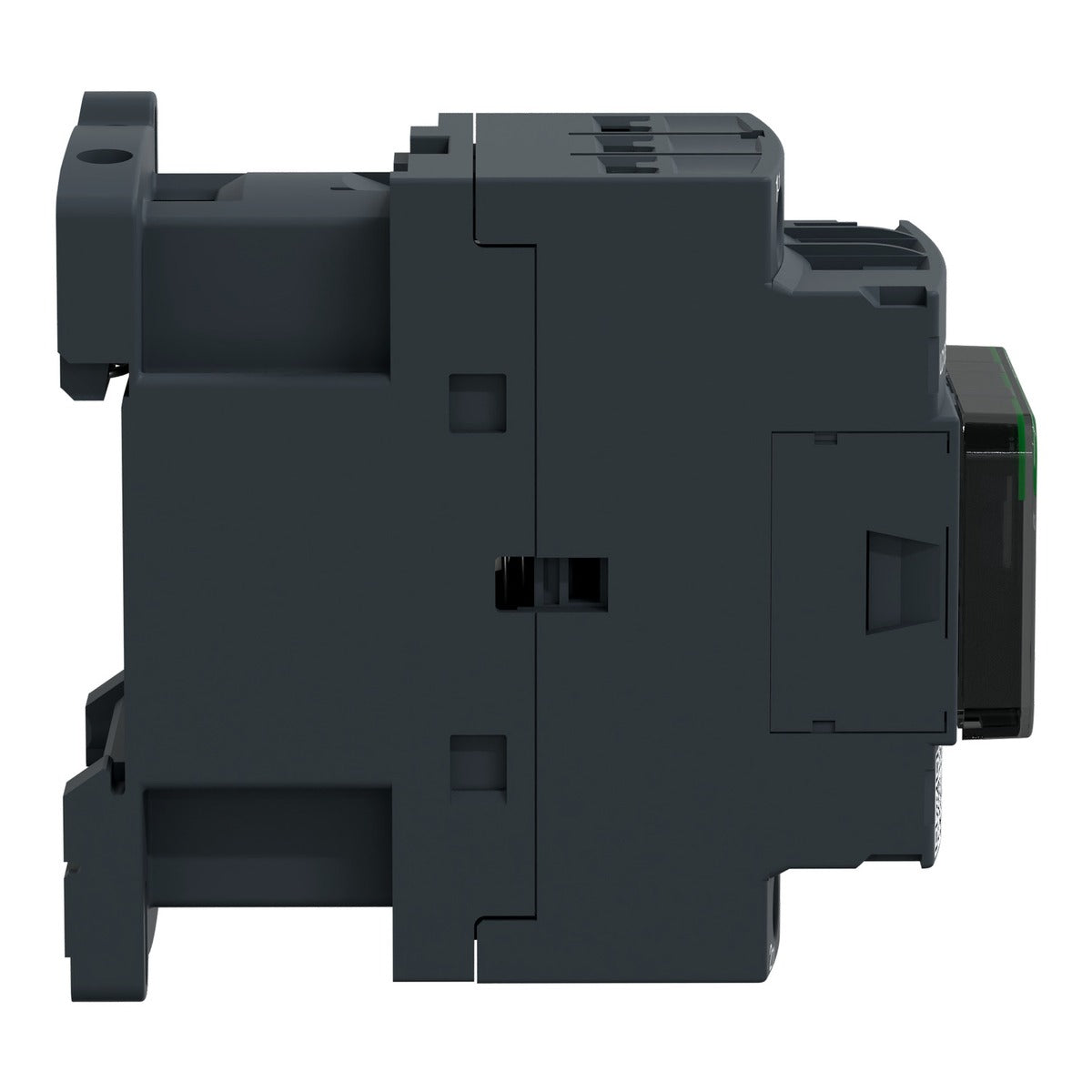

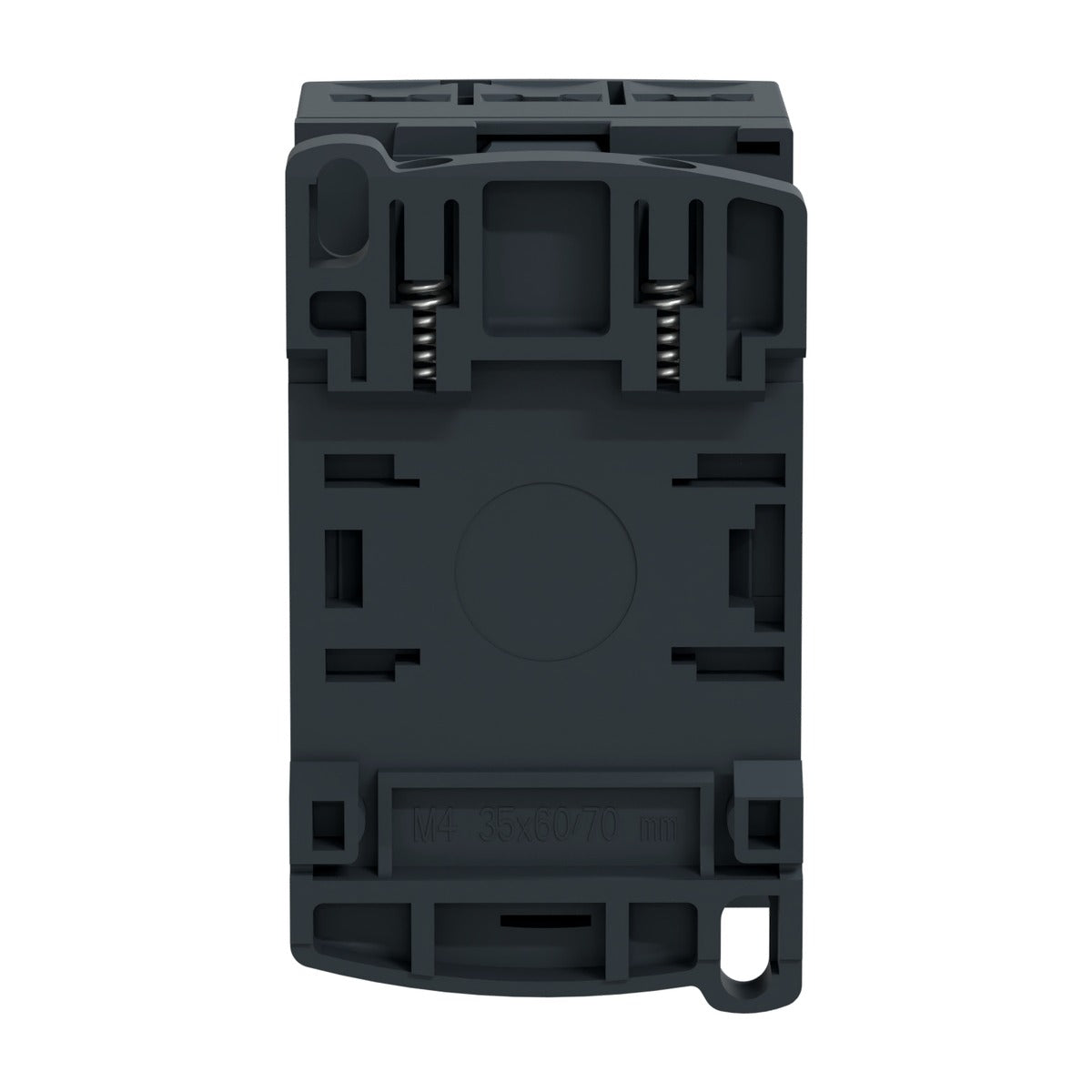

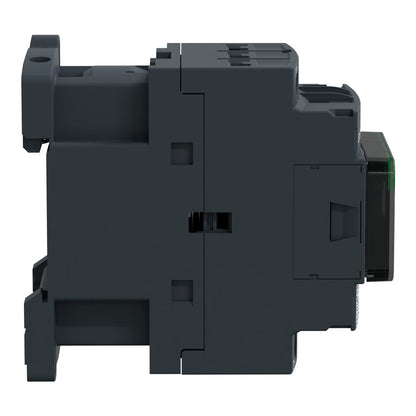

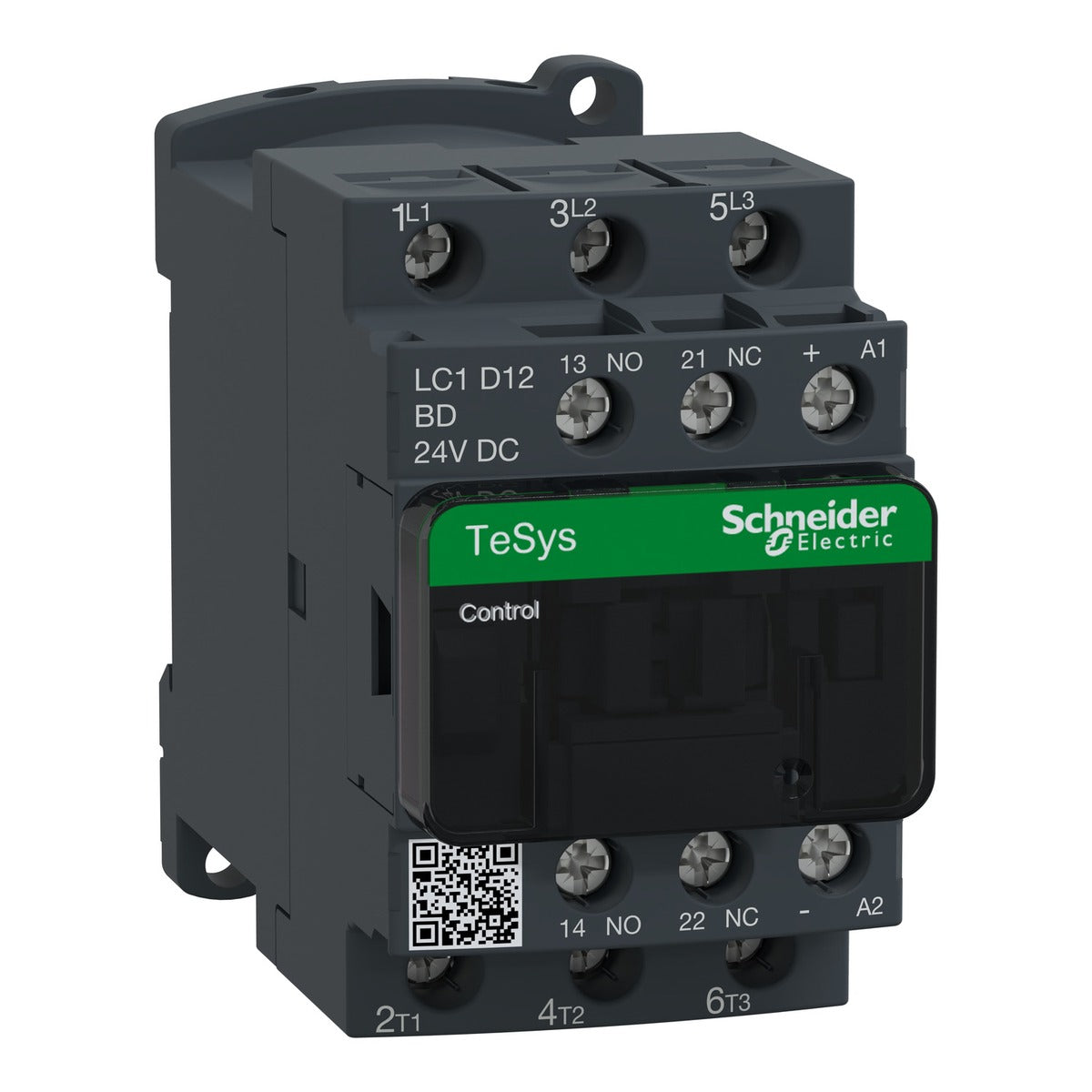

Schneider LC1D12BD, 12 Amp Contactor, 24VDC coil
No reviews
Regular price
₹2,557
Regular price
₹5,825
Sale price
₹2,557
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹2,166.95
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LRD16 Overload Relay 9-13A, for LC1D
₹2,120
Schneider LRD14 Overload Relay 7-10A, for LC1D
₹2,120
Schneider LRD12 Overload Relay 5.5-8A, for LC1D
₹1,890
Schneider LRD10 Overload Relay 4-6A, for LC1D
₹1,890
Schneider Lc1d series 1no 1nc top mounted block Ladn11
₹541
Schneider Lc1d series 2no 2nc top mounted block Ladn22
₹986
Description
LC1D12BD is a Schneider Electric TeSys Deca (LC1D) contactor. Schneider lists it as: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil.
AC-3 rated current
12 A
Uc control circuit voltage
24 V DC
Poles description
3P
Utilisation category
AC-3
Technical specifications
| Make | Schneider Electric |
| Model | LC1D12BD |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Contactor application | Resistive load; Motor control |
| Utilisation category | AC-3; AC-3e; AC-1 |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC |
| Ie rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Uc control circuit voltage | 24 V DC |
| Motor power kW | 3 kW at 220/230 V AC 50/60 Hz (AC-3); 5.5 kW at 380/400 V AC 50/60 Hz (AC-3) |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Ith conventional free air thermal current | 25 A (at 60 °C) for power circuit; 10 A (at 60 °C) for signalling circuit |
| Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Power dissipation per pole | 0.36 W AC-3; 1.56 W AC-1 |
| Ui rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V CSA certified |
| Uimp rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 2 Mcycles 12 A AC-3 at Ue <= 440 V; 0.8 Mcycles 25 A AC-1 at Ue <= 440 V |
| Operating time | 63 ±15 % ms closing; 20 ±20 % ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible... |
| Auxiliary contact composition | 1 NO + 1 NC |
| Standards | CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1 |
| Product certifications | UL; CCC; CSA; Marine |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -40…60 °C; 60…70 °C with derating |
PDF
LC1D12BD product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LC1D12BD
What is the ac-3 rated current of the LC1D12BD?
12 A, as published by Schneider Electric.
What is the uc control circuit voltage of the LC1D12BD?
24 V DC, as published by Schneider Electric.
What is the poles description of the LC1D12BD?
3P, as published by Schneider Electric.
Where can I download the LC1D12BD datasheet?
You can download the official PDF datasheet here: LC1D12BD datasheet (PDF).
Is the LC1D12BD genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LC1D12BD in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more
Need help choosing the right model?
Tell us your application and panel size and we will help you pick the correct Schneider model.
Motor starter chart: matching contactor and overload relay by motor kW, with prices →
Overload relay for this contactor (from our motor current chart, set at the motor nameplate current): 5.5 kW motor: LRD16 (9–13 A).
