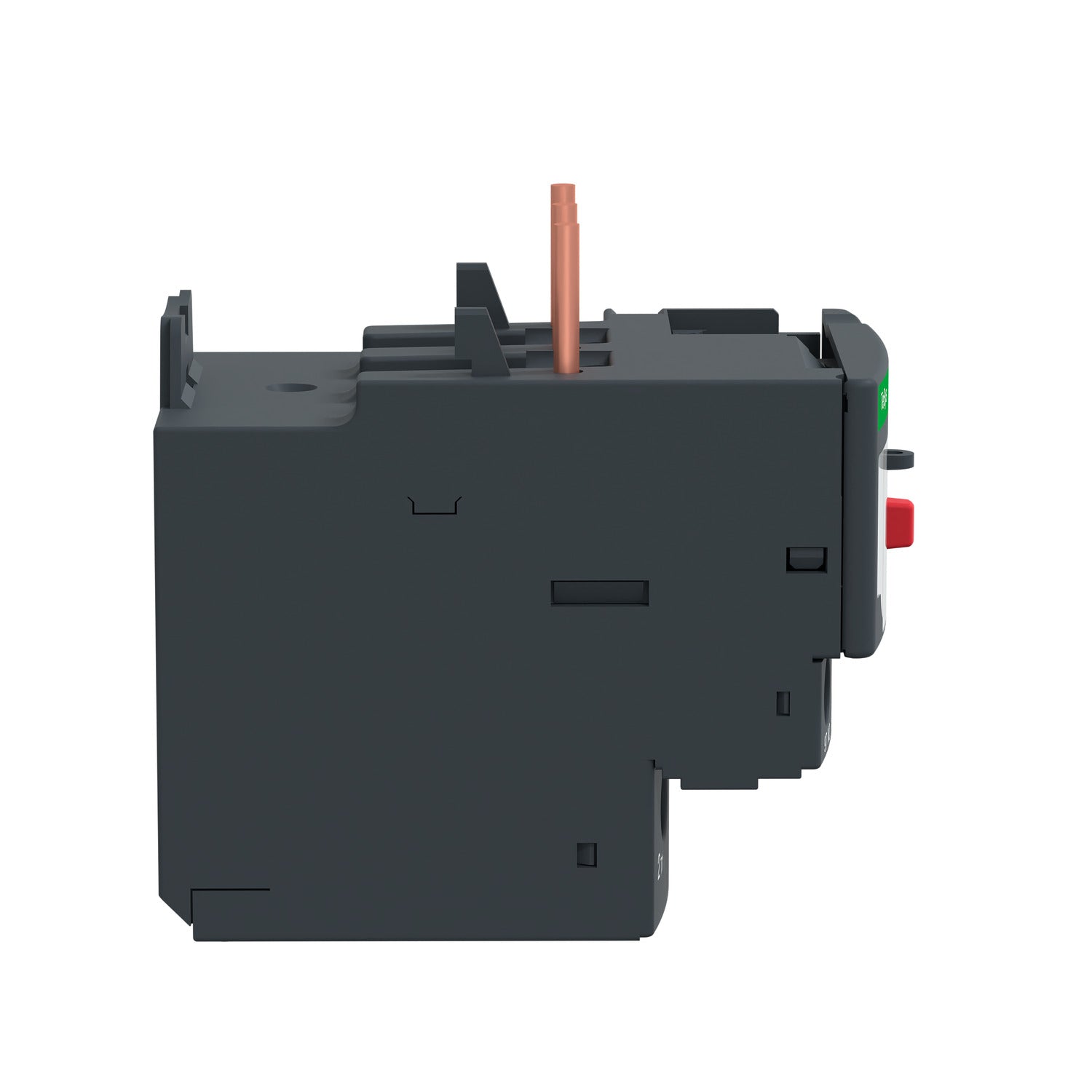

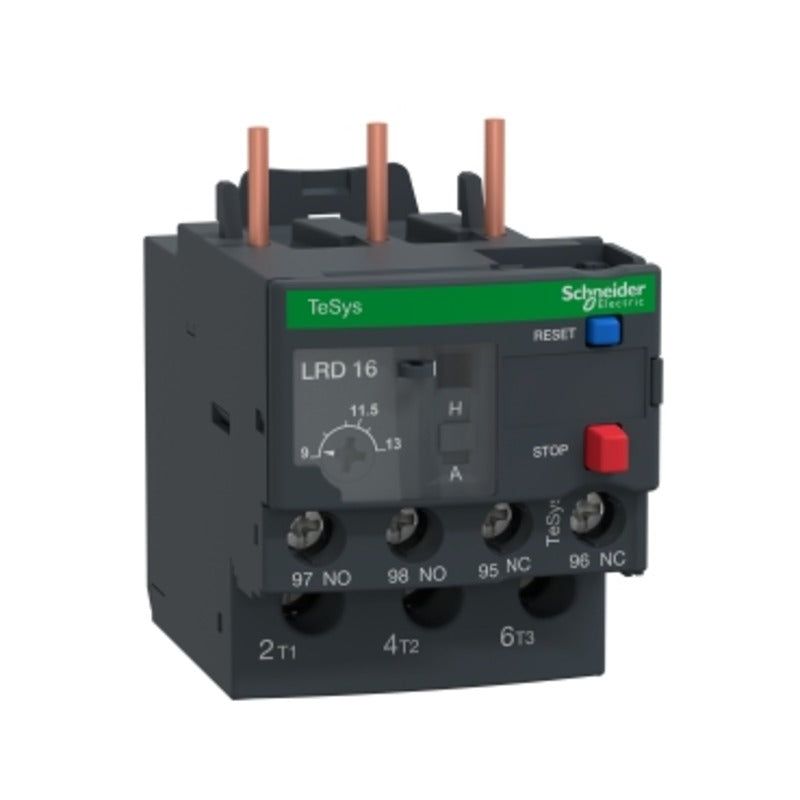

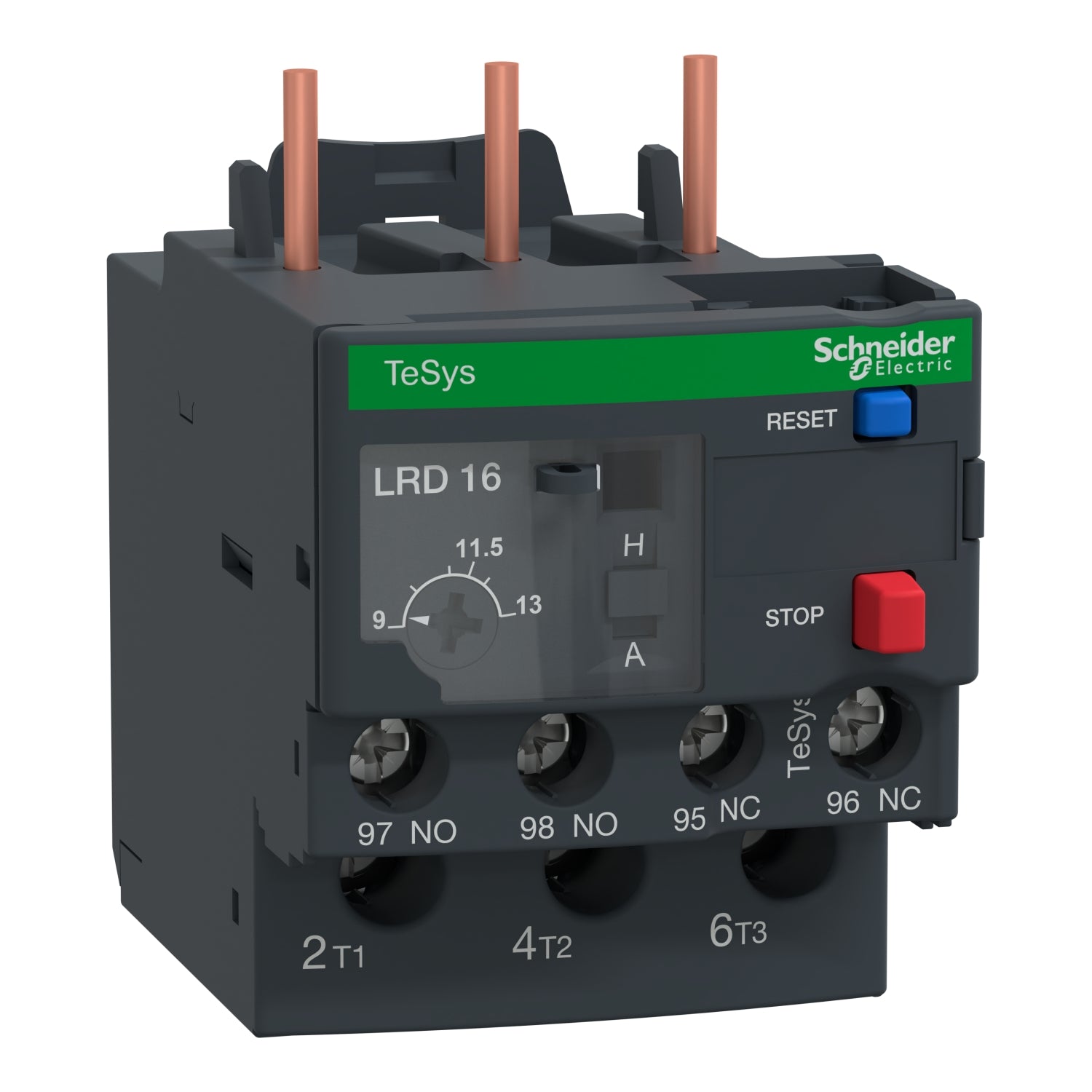

TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
| Range |
TeSys
TeSys Deca |
| product name |
TeSys LRD
TeSys Deca |
| Product or component type |
Differential thermal overload relay |
| Device short name |
LRD |
| Relay application |
Motor protection |
| Product compatibility |
LC1D18
LC1D38
LC1D32
LC1D12
LC1D25 |
| Network type |
DC
AC |
| Thermal overload class |
Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range |
9…13 A |
