Schneider
-

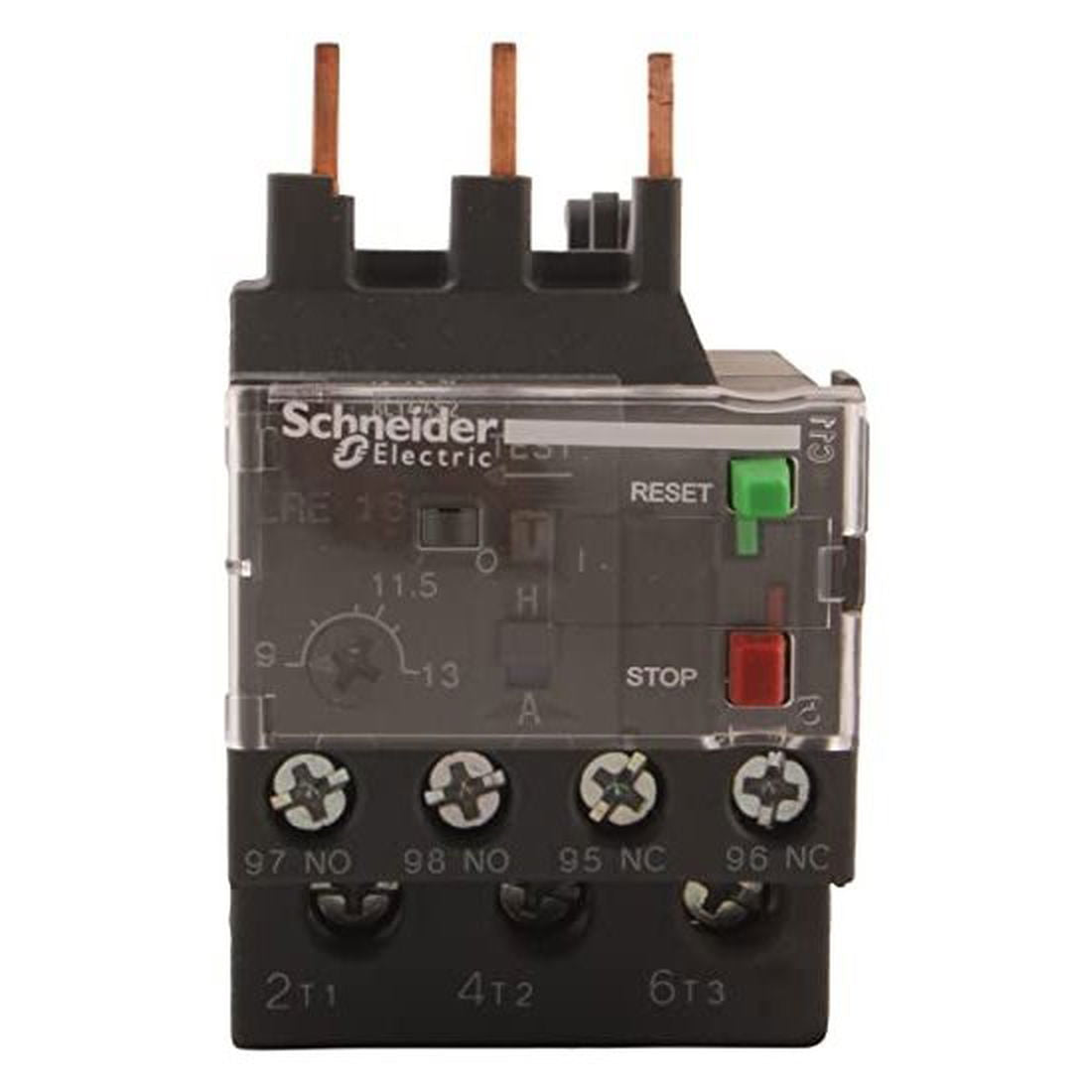

Schneider LRE16 Over Load Relay
Regular price
₹1,650
Regular price
₹3,755
Sale price
₹1,650
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹1,398.31
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Schneider LC1E2510, 25 Amp Contactor, coil voltage 220V AC
₹1,900
Schneider LC1E3210, 32 Amp Contactor, coil voltage 220V AC
₹3,970
Schneider LC1E3810, 38 Amp Contactor, coil voltage 220V AC
₹4,631
Description
LRE16 is a Schneider Electric thermal overload relay -- thermal overload protection for three-phase motors -- checked against Schneider’s own official product data.
Adjustment range
9-13A
Trip class
Class 10A
Reset mode
Manual or automatic (selectable)
Technical specifications
| Make | Schneider Electric |
| Model | LRE16 |
| Adjustment range | 9-13A |
| Trip class | Class 10A |
| Mounting | Direct mounting on a LC1E contactor |
| Reset mode | Manual or automatic (selectable) |
| Standards | IEC 60947-4-1 |
Before you order: Pick the relay whose setting range covers your motor's full-load current, then set the dial to the nameplate current. Not sure? WhatsApp us a photo of the motor nameplate and we will confirm the right relay.
SE
LRE16 on Schneider Electric’s official site
Look up the full datasheet directly from se.com
Frequently asked questions about the Schneider LRE16
What is the adjustment range of the LRE16?
9-13A, per Schneider Electric’s own product data.
What is the trip class of the LRE16?
Class 10A, per Schneider Electric’s own product data.
What is the reset mode of the LRE16?
Manual or automatic (selectable), per Schneider Electric’s own product data.
Where can I check the LRE16 specifications?
You can look it up directly on Schneider Electric’s official site: LRE16 on se.com.
Is the LRE16 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LRE16 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more Schneider products
Need help choosing the right model?
Tell us your application and panel size and we will help you pick the correct Schneider model.
Motor starter chart: matching contactor and overload relay by motor kW, with prices →
