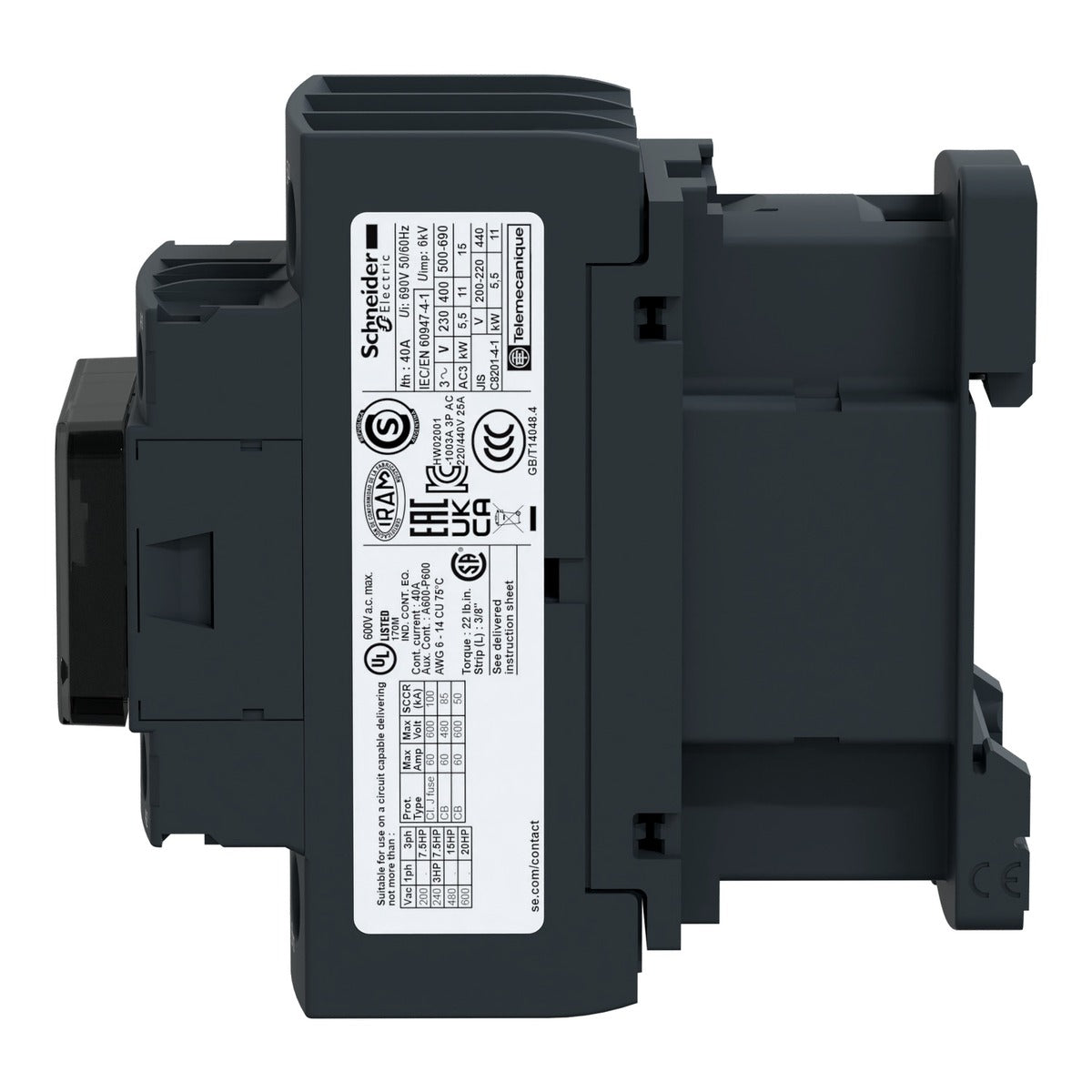

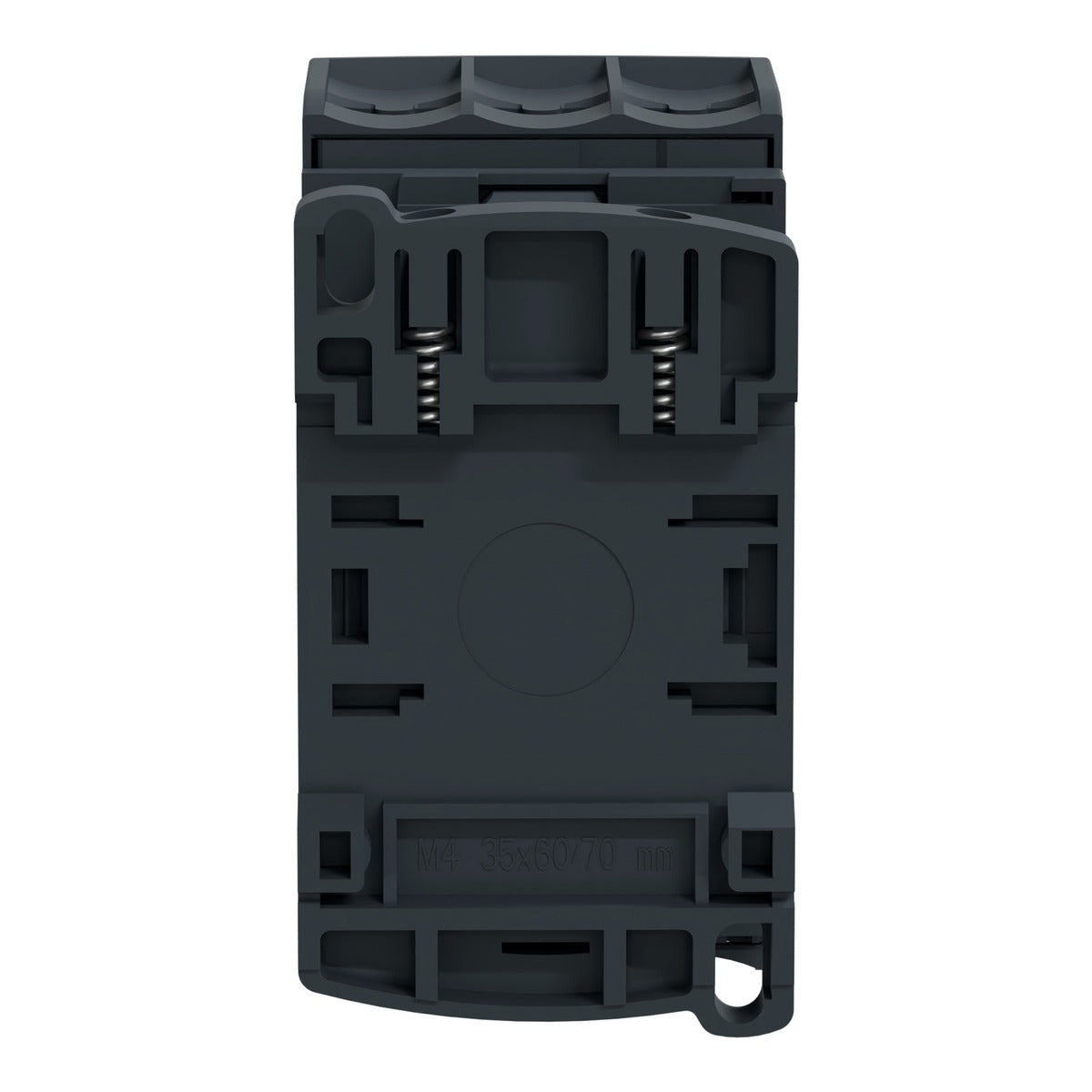

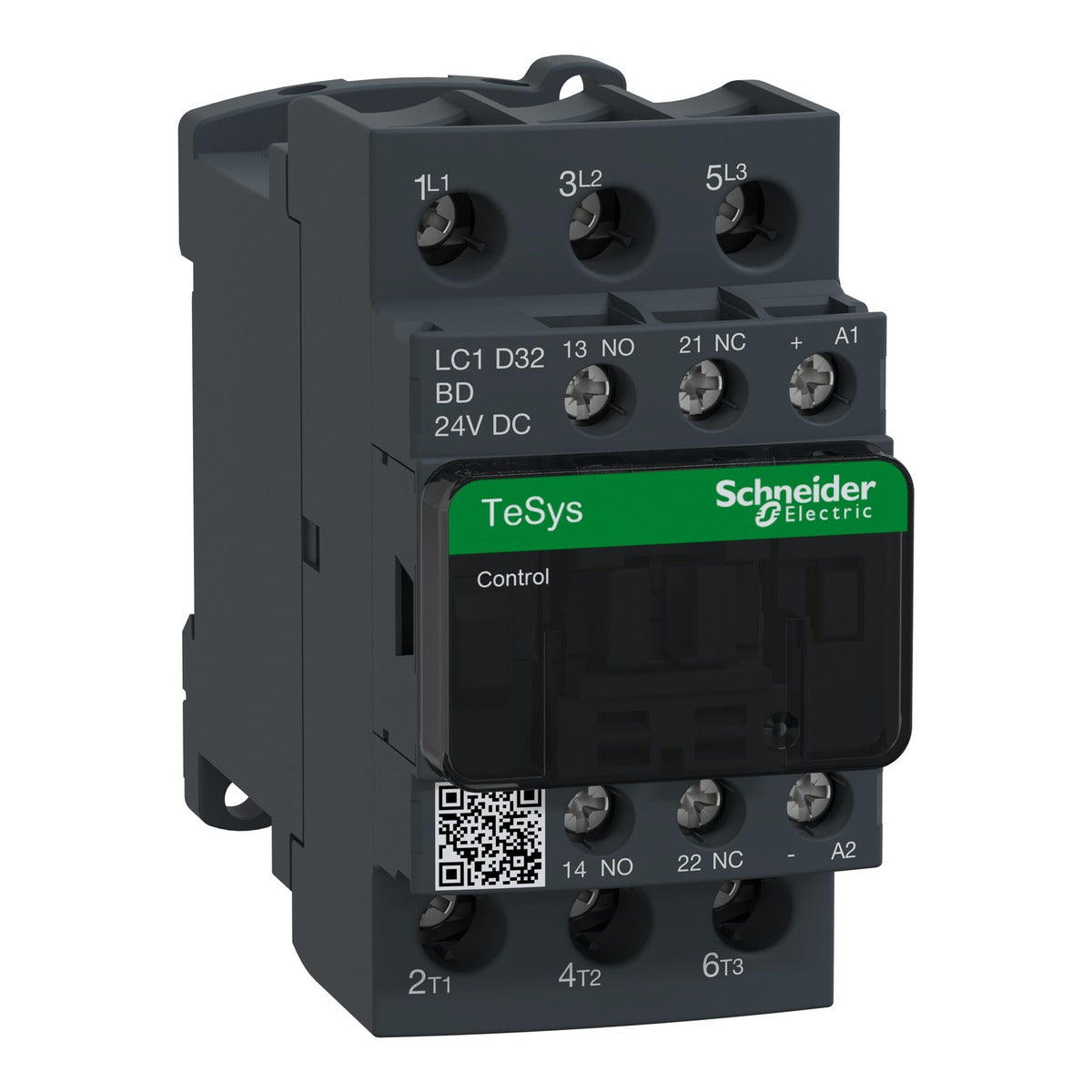

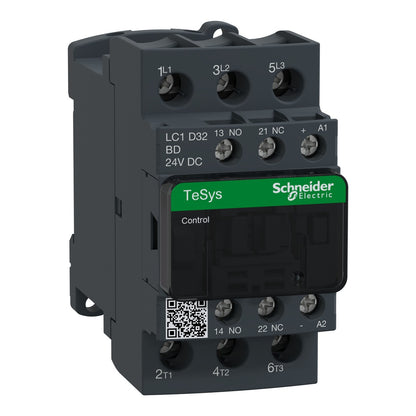

Schneider LC1D32BD, 32Amp Contactor, 24VDC coil

Q: What is the ac-3 rated current of the LC1D32BD?

32 A, as published by Schneider Electric.

Q: What is the uc control circuit voltage of the LC1D32BD?

24 V DC, as published by Schneider Electric.

Q: What is the poles description of the LC1D32BD?

3P, as published by Schneider Electric.

Q: Where can I download the LC1D32BD datasheet?

You can download the official PDF datasheet here: LC1D32BD datasheet (PDF) on this page.

Q: Is the LC1D32BD genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the LC1D32BD in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

Rs. 8,116.00

~~Rs. 18,490.00~~ Rs. 8,116.00

56% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 6,877.97

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider LRE22 Over Load Relay Rs. 2,030

Schneider LC1D40, 40Amp Contactor Rs. 6,830

Description

LC1D32BD is a Schneider Electric TeSys Deca (LC1D) contactor. Schneider lists it as: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 24 V DC coil.

AC-3 rated current

32 A

Uc control circuit voltage

24 V DC

Poles description

3P

Utilisation category

AC-3

Technical specifications

Make	Schneider Electric
Model	LC1D32BD
Range of product	TeSys Deca
Product or component type	Contactor
Contactor application	Resistive load; Motor control
Utilisation category	AC-3; AC-3e; AC-1
Poles description	3P
Ue rated operational voltage	Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC
Ie rated operational current	32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Uc control circuit voltage	24 V DC
Motor power kW	7.5 kW at 220/230 V AC 50/60 Hz (AC-3); 15 kW at 380/400 V AC 50/60 Hz (AC-3)
Compatibility code	LC1D
Pole contact composition	3 NO
Ith conventional free air thermal current	10 A (at 60 °C) for signalling circuit; 50 A (at 60 °C) for power circuit
Rated breaking capacity	550 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole	2 W AC-3; 5 W AC-1
Ui rated insulation voltage	Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V CSA certified
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947
Mechanical durability	30 Mcycles
Electrical durability	1.65 Mcycles 32 A AC-3 at Ue <= 440 V; 1.4 Mcycles 50 A AC-1 at Ue <= 440 V
Operating time	63 ±15 % ms closing; 20 ±20 % ms opening
Maximum operating rate	3600 cyc/h at 60 °C
Connections - terminals	Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness:...
Auxiliary contact composition	1 NO + 1 NC
Standards	CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1
Product certifications	UL; CCC; CSA; Marine
IP degree of protection	IP20 front face conforming to IEC 60529
Permissible ambient air temperature around the device	-40…60 °C; 60…70 °C with derating
