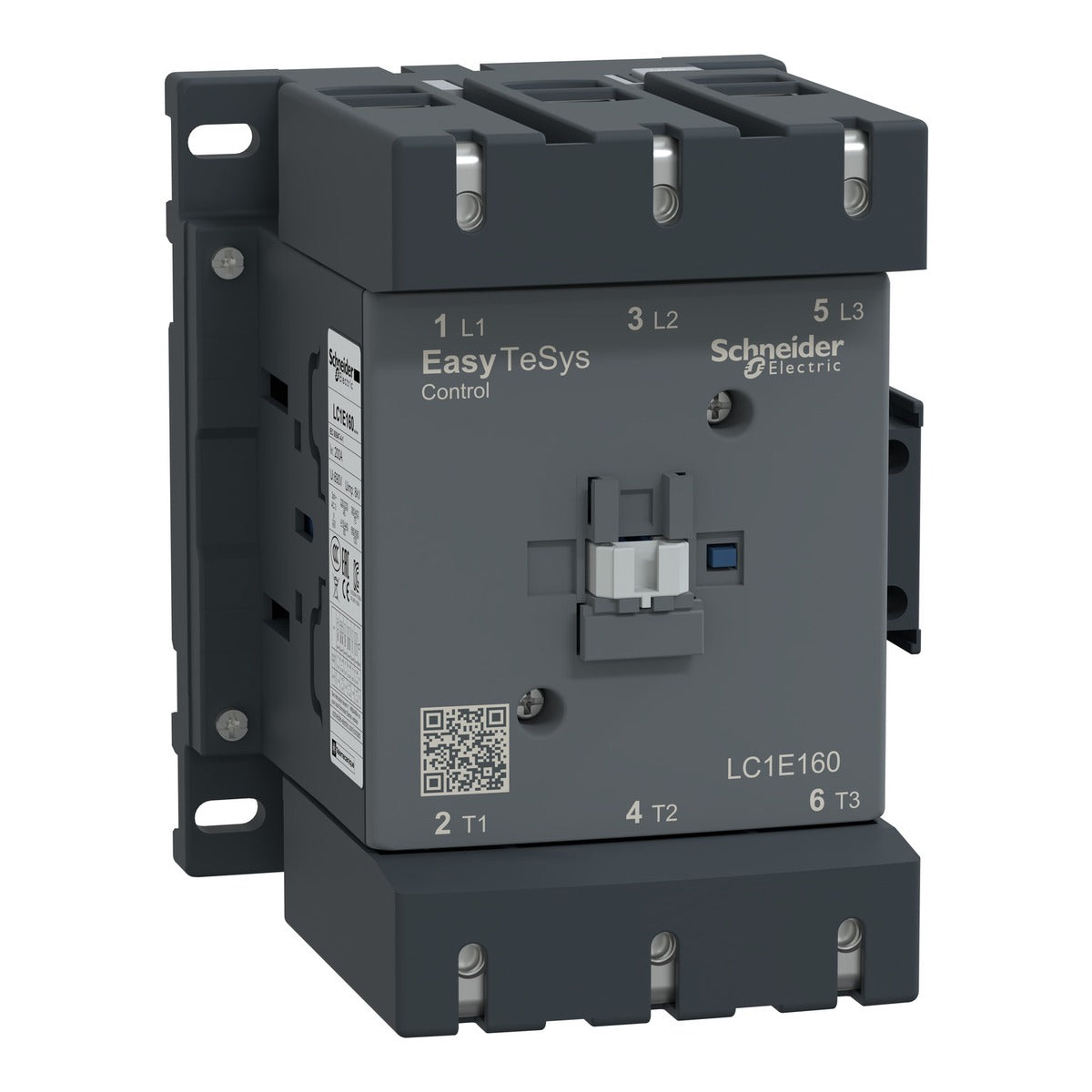

Schneider LC1E160, 160 Amp Contactor, coil voltage 220V AC
No reviews
Regular price
₹25,124
Regular price
₹57,235
Sale price
₹25,124
Incl. GST
Free delivery across India · Details
Price excl. GST
₹21,291.53
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider Lc1e series 1no 1nc top mounted block Laen11
₹450
Schneider Lc1e series 2no 2nc top mounted block Laen22
₹650
Schneider XB5AA31N Push Button Green, 22mm, Spring Return
₹164
Schneider XB5AA41N Push Button Red, 22mm, Spring Return
₹164
Schneider XB7EV03 Pilot Light Green, 22mm LED
₹232
Schneider XB7EV04 Pilot Light Red, 22mm LED
₹232
Description
LC1E160 is a Schneider Electric Easy TeSys (LC1E) contactor. Schneider lists it as: Easy TeSys contactor 3P(3 NO) - AC-3 - <= 440 V 160A - 220 V AC coil.
Same series, other ratings: LC1E120, 120 A · LC1E200, 200 A
AC-3 rated current
160 A
Uc control circuit voltage
220 V AC 50 Hz
Poles description
3P
Utilisation category
AC-3
Technical specifications
| Make | Schneider Electric |
| Model | LC1E160 |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Contactor application | Motor control; Resistive load |
| Utilisation category | AC-3; AC-3e; AC-1 |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Ie rated operational current | 160 A (at <55 °C) at <= 440 V AC AC-3 for power circuit; 100 A (at <55 °C) at <= 440 V AC AC-3e for power circuit; 200 A (at <40 °C) at <= 440 V AC AC-1 for power circuit |
| Uc control circuit voltage | 220 V AC 50 Hz |
| Motor power kW | 45 kW at 220/230 V AC 50/60 Hz; 75 kW at 380/400 V AC |
| Pole contact composition | 3 NO |
| Ith conventional free air thermal current | 200 A (at 40 °C) for power circuit |
| Rated breaking capacity | 1280 A at 440 V for power circuit conforming to IEC 60947 |
| Power dissipation per pole | 24 W AC-1; 15 W AC-3 |
| Ui rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Uimp rated impulse withstand voltage | 8 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 4000000 cycles |
| Electrical durability | 800000 cycles AC-3; 250000 cycles AC-1 |
| Operating time | 20...50 ms on closing; 6...20 ms on opening |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness:... |
| Auxiliary contact composition | 1 NO + 1 NC |
| Mounting support | Plate; DIN rail |
| Standards | EN/IEC 60947-1; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GB/T 14048.1 |
| Product certifications | CB Scheme; CCC; CE; EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -20…70 °C at Uc; -60…80 °C storage; -5…55 °C operation |
PDF
LC1E160 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LC1E160
What is the ac-3 rated current of the LC1E160?
160 A, as published by Schneider Electric.
What is the uc control circuit voltage of the LC1E160?
220 V AC 50 Hz, as published by Schneider Electric.
What is the poles description of the LC1E160?
3P, as published by Schneider Electric.
Where can I download the LC1E160 datasheet?
You can download the official PDF datasheet here: LC1E160 datasheet (PDF).
Is the LC1E160 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LC1E160 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
