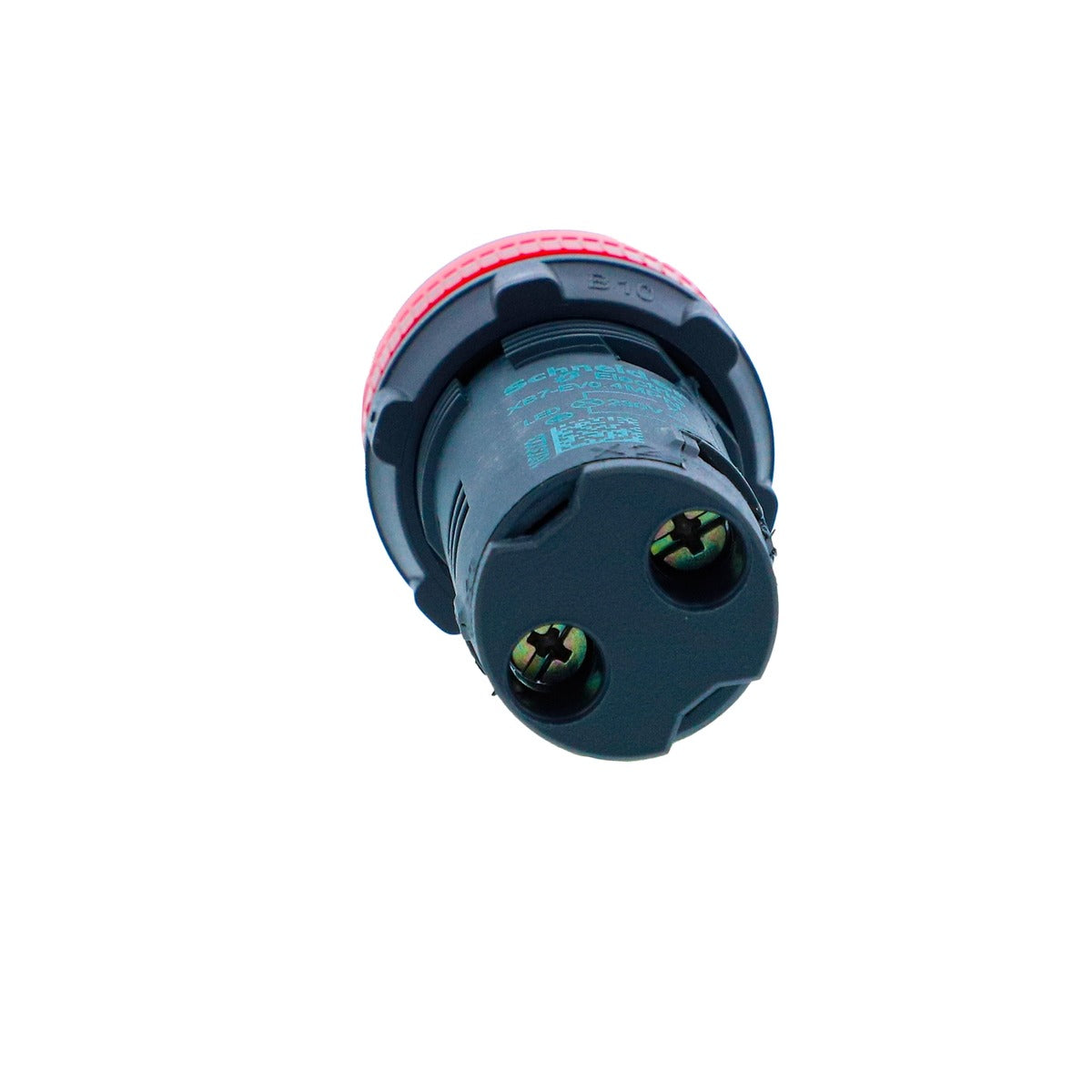

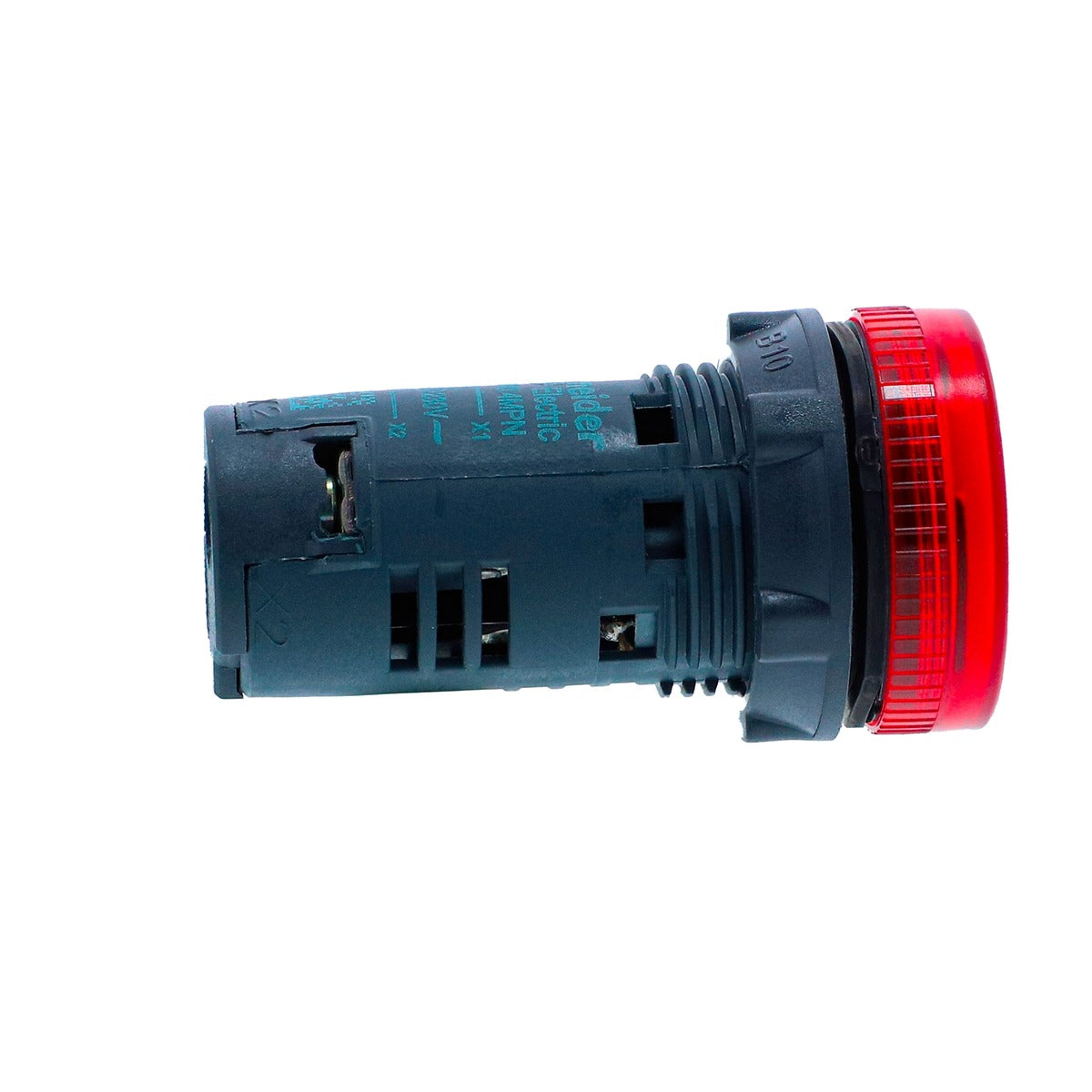

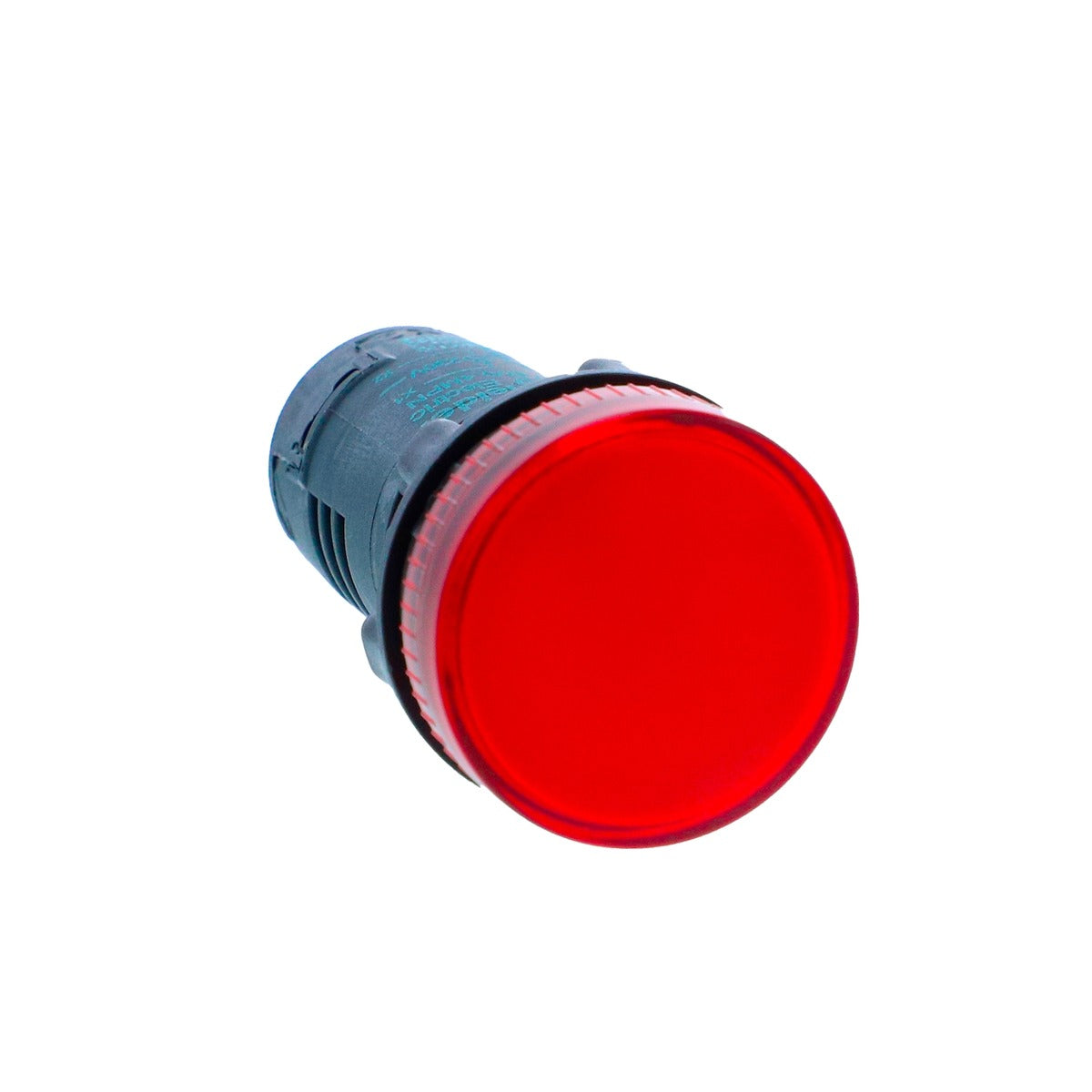

Schneider XB7EV04 Pilot Light Red, 22mm LED
Regular price
₹232
Regular price
₹356
Sale price
₹232
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹196.61
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Description
XB7EV04 is a Schneider Electric Harmony XB7 LED pilot light. Schneider lists it as: Monolithic pilot light, Harmony XB5N XB7N, plastic, red, 22mm, LED, 230V AC.
Cap/operator or lens colour
Red
Us rated supply voltage
220...240 V AC 50/60 Hz
Light source
LED
Mounting diameter
22.5 mm
Technical specifications
| Make | Schneider Electric |
| Model | XB7EV04 |
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Pilot light |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| Light source | LED |
| Bulb base | Integral LED |
| Us rated supply voltage | 220...240 V AC 50/60 Hz |
| Device presentation | Monolithic product |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 54 mm |
| Net weight | 0.02 kg |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Ui rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Uimp rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Light source colour | Red |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 16...20 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Ambient air temperature for operation | -25…70 °C |
| Standards | IEC 60947-1; IEC 60947-5-1; IS 13947-5-1 |
Available voltage options
| Voltage: 230V AC | XB7EV04MPN - Monolithic pilot light, Harmony XB5N XB7N, plastic, red, 22mm, LED, 230V AC |
| Voltage: 24V AC/DC | XB7EV04BPN - Monolithic pilot light, Harmony XB5N XB7N, plastic, red, 22mm, LED, 24V AC DC |
PDF
XB7EV04 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider XB7EV04
What is the cap/operator or lens colour of the XB7EV04?
Red, as published by Schneider Electric.
What is the us rated supply voltage of the XB7EV04?
220...240 V AC 50/60 Hz, as published by Schneider Electric.
What is the light source of the XB7EV04?
LED, as published by Schneider Electric.
Where can I download the XB7EV04 datasheet?
You can download the official PDF datasheet here: XB7EV04 datasheet (PDF).
Is the XB7EV04 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the XB7EV04 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
